Harmony XB5, Flush mounted push button head, plastic, green, Ø30, push-push, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FH03C0 3606489772949
18.80 / EA
http://schema.org/OutOfStock

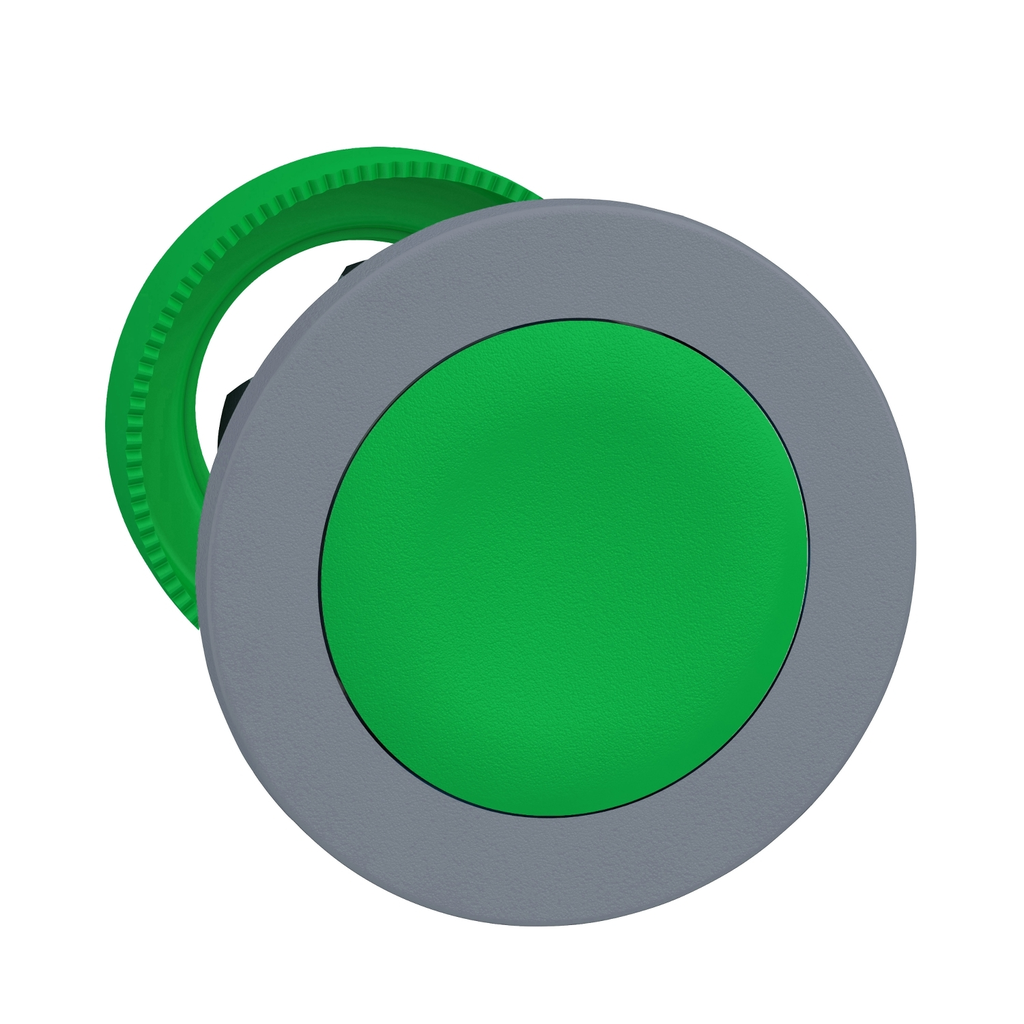

Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, green, Ø30, push-push, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: CSA, UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK03 IEC 50102
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Product Certifications : UL Listed || CSA
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Protective Treatment : TH
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • China Rohs Regulation : X
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Complementary
    • Mechanical Durability : 500000 cycles
    • Cad Overall Depth : 30 mm
    • Net Weight : 0.03 kg
    • Device Presentation : basic element
    • Electrical Composition Code : C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting || C9 3 single front mounting
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
  • Specifications
    • Operator Profile : green flush, unmarked
    • Shape Of Signaling Unit Head : round
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5F
    • Mounting Diameter : 30.5 mm
    • Range Of Product : Harmony XB5
    • Type Of Operator : push-push
    • Head Type : built-in-flush
    • Product Or Component Type : head for non-illuminated push-button
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Sale Per Indivisible Quantity : 1
