SQUARE D

Harmony XB5, Flush mounted push button head, plastic, blue, Ø30, spring return, unmarked, grey bezel

HARMONY XB5, FLUSH MOUNTED PUS

SQDZB5FA6C0 3606489771300
10.06 / EA
http://schema.org/OutOfStock

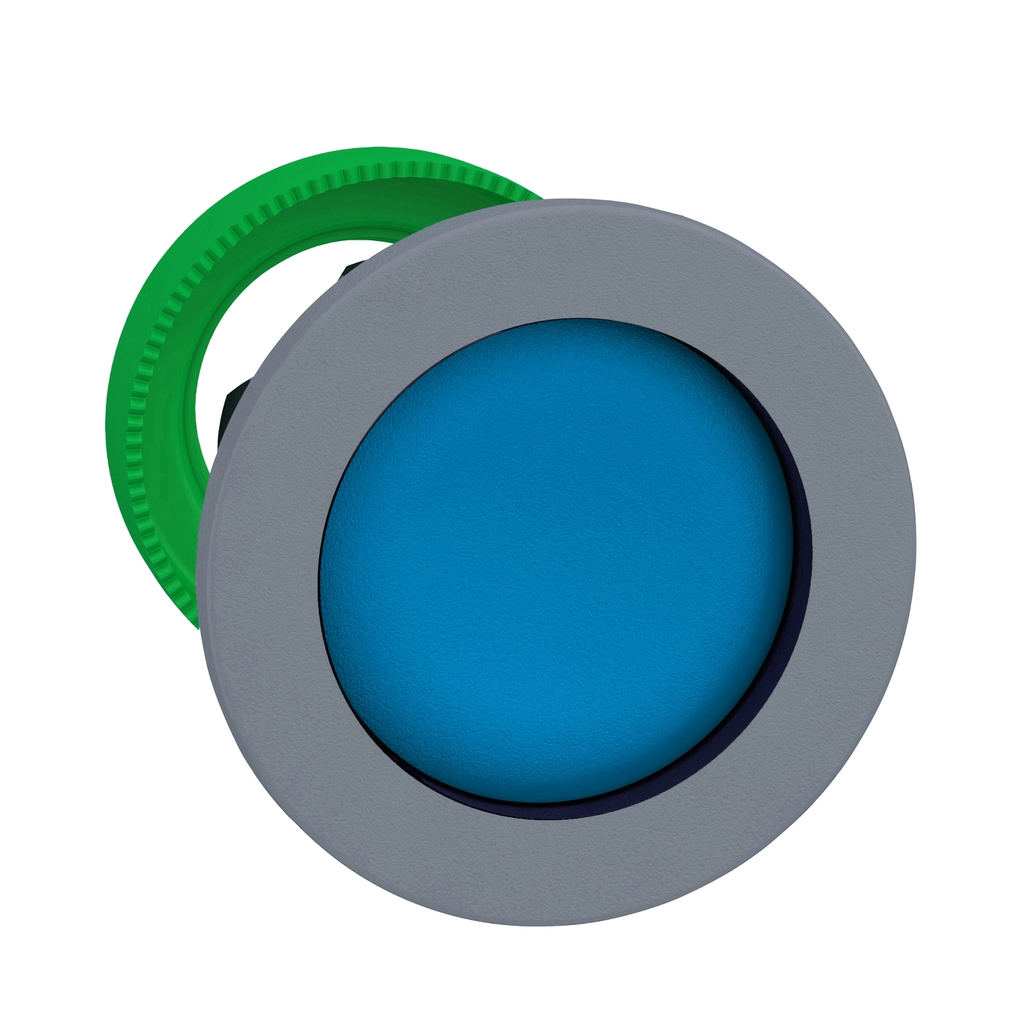

Mayer-DDS-Harmony XB5, Flush mounted push button head, plastic, blue, Ø30, spring return, unmarked, grey bezel-1
  • Bezel Material: Plastic Colour Plated Grey
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : LROS (Lloyds register of shipping) || CSA || GL || UL Listed || DNV || BV
    • Ik Degree Of Protection : IK03 IEC 50102
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TH
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Storage : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • China Rohs Regulation : X
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Cad Overall Width : 37 mm
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Height : 37 mm
    • Net Weight : 0.03 kg
    • Device Presentation : basic element
    • Cad Overall Depth : 30 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
  • Specifications
    • Head Type : built-in-flush
    • Operator Profile : blue flush, unmarked
    • Mounting Diameter : 30.5 mm
    • Bezel Material : plastic colour plated grey
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Product Or Component Type : head for non-illuminated push-button
    • Shape Of Signaling Unit Head : round
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Type Of Operator : spring return
