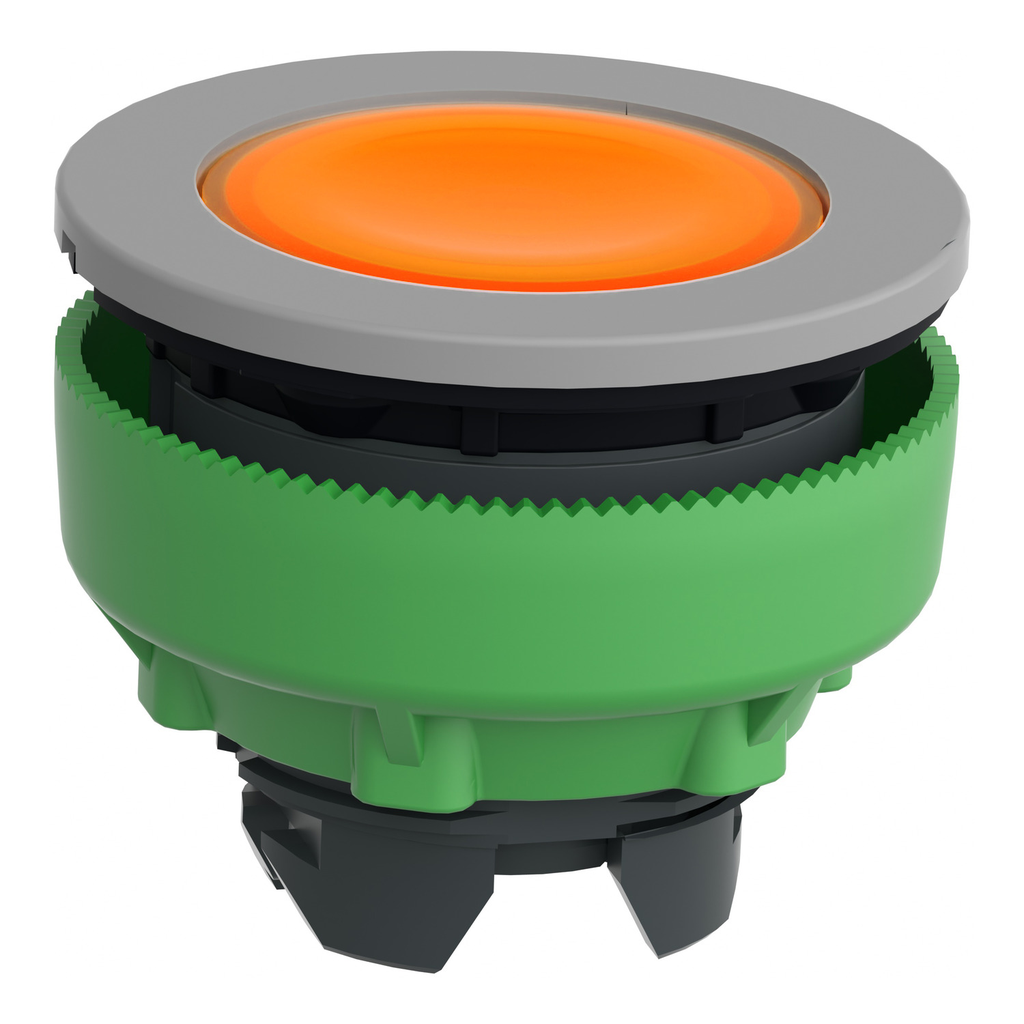

This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.

• Physical Attributes
• Cad Overall Depth : 30 mm
• Cad Overall Height : 37 mm
• Cad Overall Width : 37 mm
• Conformance Attributes
• Standards : IEC 60947-5-5, UL 508, IEC 60947-5-4, CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-1, JIS C8201-5-1, JIS C8201-1
• Important Information Attributes
• Customizable : 1, no
• Electrical Composition Code : P1 front mounting integral LED, P2 front mounting integral LED and transformer, PF1 front mounting integral LED
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-19
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308027EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Bezel Material : plastic colour plated grey
• Compatibility Code : ZB5
• Device Short Name : ZB5
• GCR Bridge : ZB5FVCUST02
• Group Of Product : lens fitted integral LED
• Head Type : built-in-flush
• Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
• Main Group : pilot light
• Mounting Diameter : 30.5 mm
• Overvoltage Category : class II conforming to IEC 60536
• Package Weight Lbs : 0.02 kg
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2308027EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP67
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Circularity Profile : ENVEOLI2308027EN
• Environmental Disclosure : ENVPEP2308027EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308027EN
• General Attributes
• Product Or Component Type : head for pilot light
• Range Of Product : Harmony XB5
• Overview Attributes
• Device Presentation : basic element
