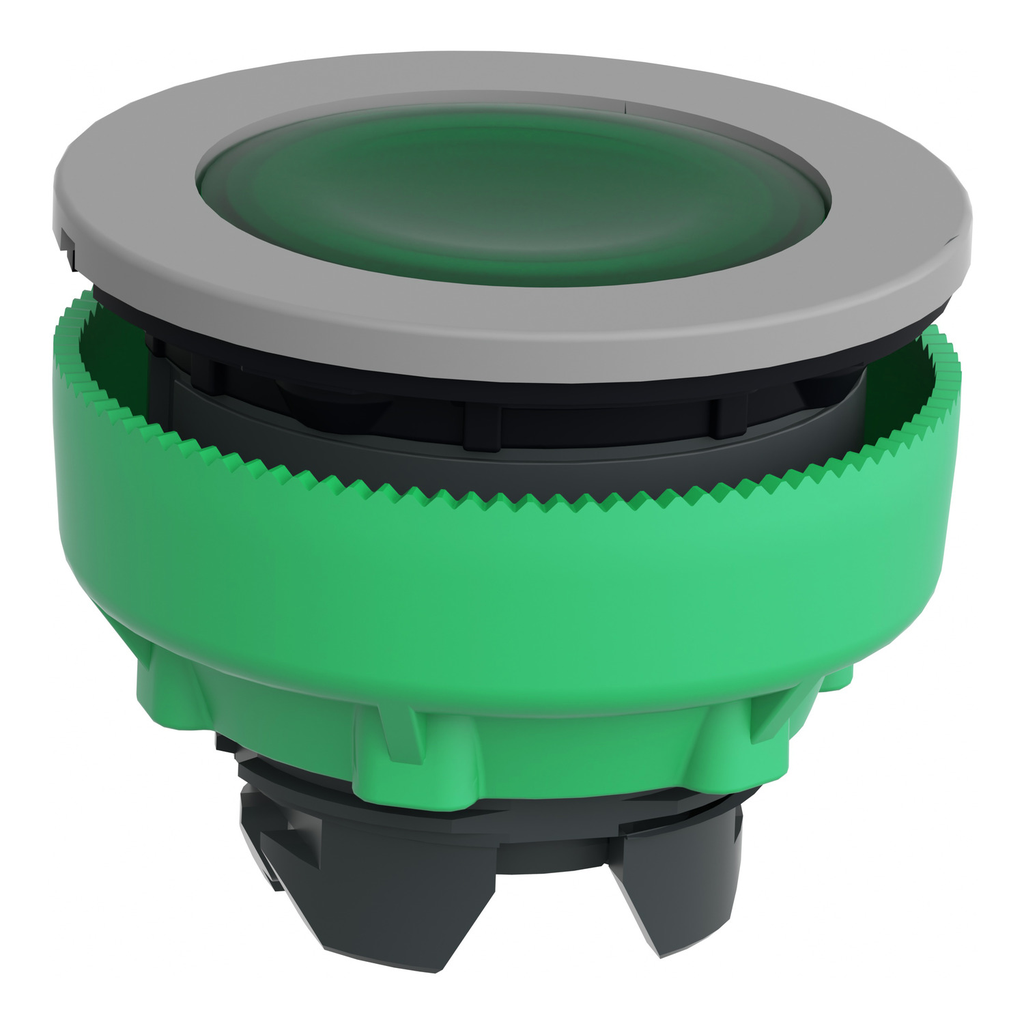

This pilot light head for universal LED provides clear visual feedback on the status of your machines. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
- Environment
- Ik Degree Of Protection : IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Important Information
- Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Complementary
- Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
- Net Weight : 0.015 kg
- Cad Overall Height : 37 mm
- Device Presentation : basic element
- Cad Overall Width : 37 mm
- Cad Overall Depth : 30 mm
- Specifications
- Country of Origin : France
- Width : 37 mm
- Height : 37 mm
- Weight : 0.015 kg
- Operator Additional Information : with plain lens
- Range Of Product : Harmony XB5
- Mounting Diameter : 30.5 mm
- Product Or Component Type : head for pilot light
- Shape Of Signaling Unit Head : round
- Cap/Operator Or Lens Colour : green
- Head Type : built-in-flush
- Sale Per Indivisible Quantity : 1
- Bezel Material : plastic colour plated grey
- Product Compatibility : universal LED
- Device Short Name : ZB5
