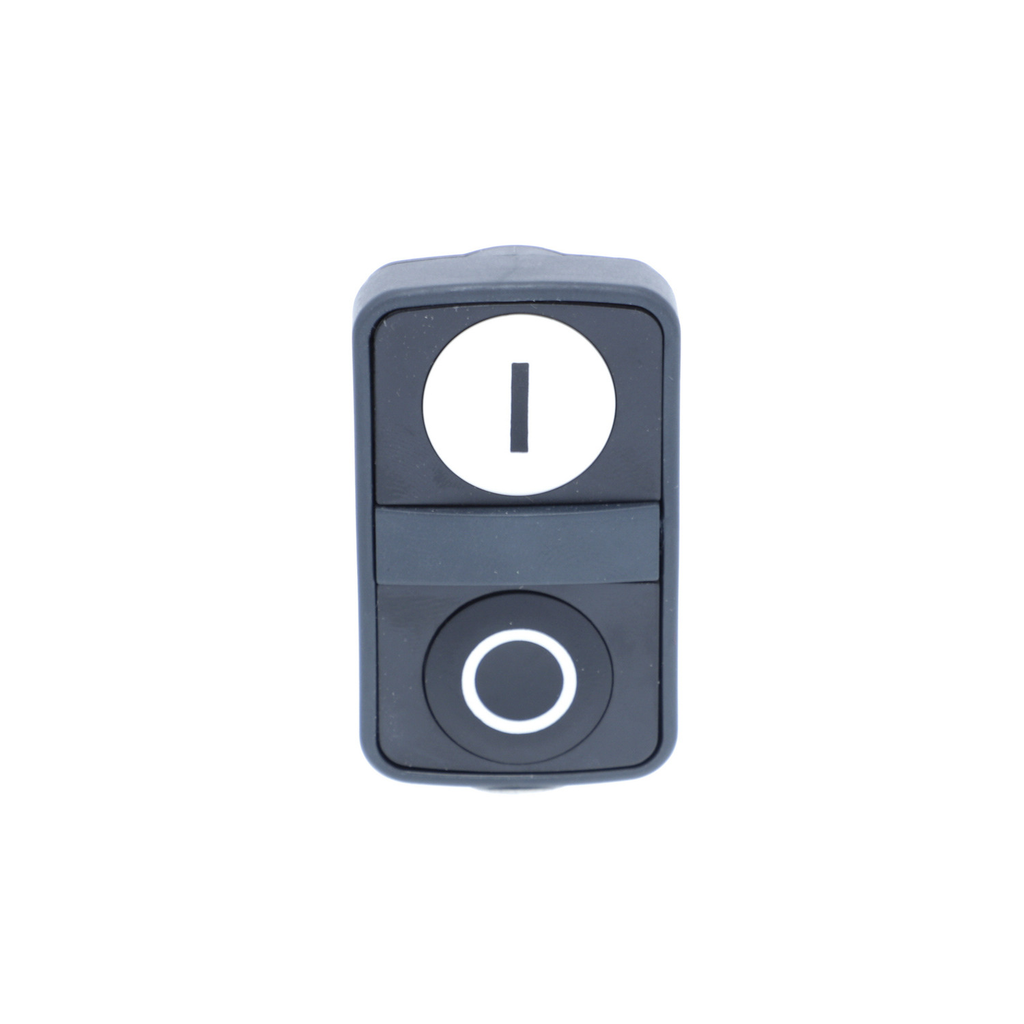

This Harmony XB5, double head has 1 white and 1 black button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environment
- Product Certifications : DNV || LROS (Lloyds register of shipping) || GL || CSA || BV || UL Listed
- Ik Degree Of Protection : IK03 conforming to IEC 50102
- Ambient Air Temperature For Operation : -25-70 °C
- Standards : JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || IEC 60947-1 || UL 508 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP69K IEC 60529
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Ambient Air Temperature For Storage : -40-70 °C
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Electrical Shock Protection Class : class II IEC 60536
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || SR2 2 single rear mounting
- Colour Of Marking : black marking when white caps || white marking when green, red or black caps
- Net Weight : 0.023 kg
- Cad Overall Height : 50 mm
- Device Presentation : basic element
- Operator Profile : black flush, O white) || white flush, I black)
- Mechanical Durability : 1000000 cycles
- Station Name : XALD 1 cut-out
- Cad Overall Width : 30 mm
- Cad Overall Depth : 30 mm
- Specifications
- Range Of Product : Harmony XB5
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Operators Description : white ''I'' - black ''O''
- Product Or Component Type : head for double-headed push-button
- Shape Of Signaling Unit Head : rectangular
- Operator Profile : 2 flush push-buttons
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Device Short Name : ZB5
