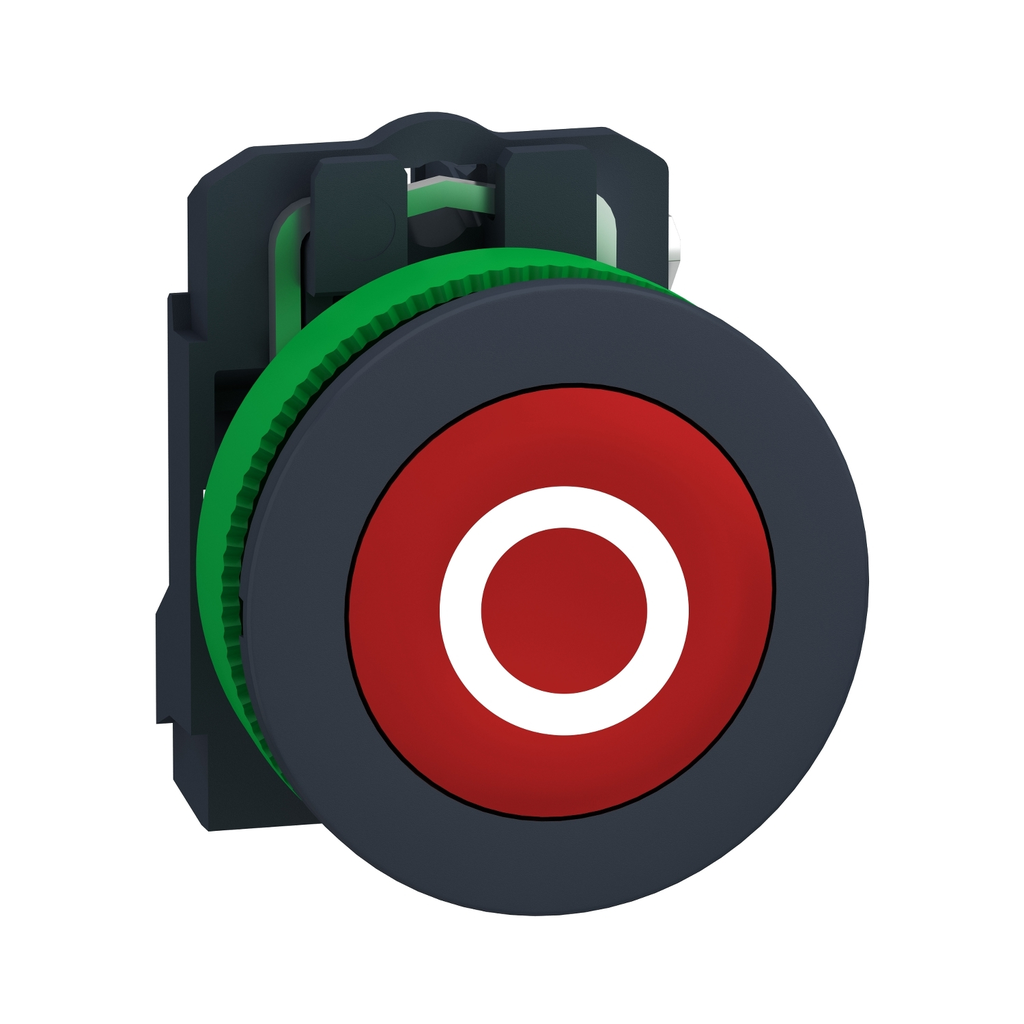

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

• Environment
• Overvoltage Category : class II IEC 60536
• Protective Treatment : TH
• Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
• Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
• Product Certifications : UL Listed || CSA || CCC || EAC
• Ik Degree Of Protection : IK06 IEC 50102
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
• Ambient Air Temperature For Storage : -40-70 °C
• Offer Sustainability
• Reach Free Of Svhc : Yes
• Mercury Free : Yes
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI1710010EN
• Rohs Exemption Information : Yes
• Environmental Disclosure : ENVPEP1710010EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Sustainable Offer Status : Green Premium product
• Complementary
• Device Presentation : complete product
• [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
• Terminals Description Iso N°1 : (21-22)NC
• Contacts Usage : standard contacts
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
• Tightening Torque : 0.8-1.2 N.m IEC 60947-1
• Contacts Material : silver alloy (Ag/Ni)
• Depth : 55 mm
• Mechanical Durability : 10000000 cycles
• Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
• Positive Opening : with IEC 60947-5-1 appendix K
• Customizable : 1
• Customizable : no
• Gcr Bridge : XB5FACUST01
• [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
• [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
• Compatibility Code : XB5
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Operating Force : 3.5 N NC changing electrical state
• Height : 42 mm
• Electrical Durability : 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
• Width : 36.6 mm
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Specifications
• Sale Per Indivisible Quantity : 1
• Head Type : built-in-flush
• Device Short Name : XB5F
• Mounting Diameter : 30.5 mm
• Product Compatibility : ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
• Bezel Material : plastic || dark grey plastic
• Product Or Component Type : push-button
• Contacts Type And Composition : 1 NC
• Operator Profile : red flush, O white)
• Fixing Collar Material : plastic
• Range Of Product : Harmony XB5
• Shape Of Signaling Unit Head : round
• Type Of Operator : spring return
• Contact Operation : slow-break
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
