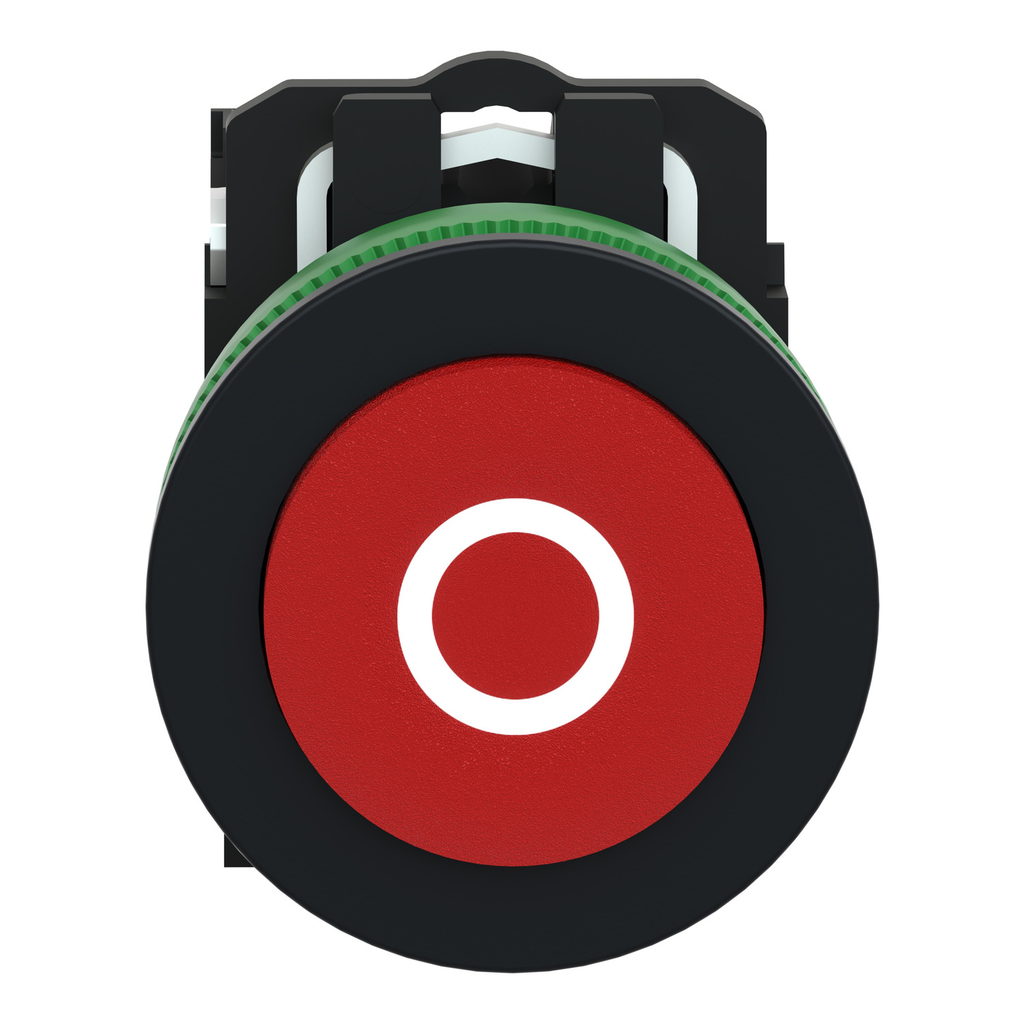

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider El

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Overvoltage Category
• class II conforming to IEC 60536
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproduc
• Carbon Footprint Of The Installation Phase A5
• 0.0118649962
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1 kg CO2 eq.
• 0.0813210176
• Standards
• CSA C22.2 No 14
• IEC 60947-5-1
• IEC 60947-5-4
• UL 508
• IEC 60947-1
• JIS C8201-5-1
• CE
• JIS C8201-1
• ISO 22196:2011
• ISO 21702
• Ui Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Ip Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Type 13 UL 50 E
• Type 12 UL 50 E
• Type 4 UL 50 E
• Type 4X UL 50 E
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.3 kg CO2 eq.
• 0.3350894912
• Accessories
• ZBY2101
• ZB5AZ905
• Electrical Durability
• 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
• 1000000 cycles AC-15, 2 A 230 V 3600 c
• Operating Force
• 3.5 N NC changing electrical state
• Vibration Resistance
• 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60
• Positive Opening
• with IEC 60947-5-1 appendix K
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0 kg CO2 eq.
• 0.0023951268
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0157137561
• 0 kg CO2 eq.
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Ith Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Bezel Material
• plastic
• dark grey plastic
• Ie Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• Operating Travel
• 1.5 mm NC changing electrical state)
• 4.3 mm total travel)
• Operator Profile
• red projecting, O white)
• Electrical Reliability
• λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V 1 mA
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• Product Compatibility
• ZBYF2101
• ZBYF4101
• ZBYF6101
• ZBYF6102
• ZBZF32
• ZBZF33
• ZB4FBZ007
• Product Certifications
• UL Listed
• CSA
• CCC
• EAC

• Physical Attributes
• Cap Operator Or Lens Color : red
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 8/13/2025
• Manufacturing Carbon Footprint : 0.335089491
• Distribution Carbon Footprint : 0.015713756
• Installation Carbon Footprint : 0.011864996
• Use Carbon Footprint : 0.002395127
• End Of Life Carbon Footprint : 0.081321018
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2303008EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant
• ROHS Eur Conformity Date : 1930
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 2 - SELECTED (Migration)
• Cap Operator Or Lens Color : red
• Compatibility Code : XB5
• Contact Operation : slow-break
• Contacts Material : silver alloy (Ag/Ni)
• Contacts Type And Composition : 1 NC
• Contacts Usage : standard contacts
• Device Short Name : XB5F
• Fixing Collar Material : plastic
• Gcr Bridge : XB5FLCUST01
• Head Type : built-in-flush
• Mechanical Durability : 10000000 cycles
• Mounting Diameter : 30.5 mm
• Package Weight Lbs : 45.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : push-button
• Product Repair Index : A
• Protective Treatment : TH
• Range Of Product : Harmony XB5
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Terminals Description Iso N 1 : (21-22)NC
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Type Of Operator : spring return
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 0.446384388
• Relationshiptype : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• General Attributes
• Product Or Component Type : push-button
• Range Of Product : Harmony XB5
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460293149&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.446384388
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2303008EN
• Environmental Disclosure : ENVPEP2303008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Specifications
• Country of Origin : France
• Height : 1.65 in
• Width : 1.44 in
• Depth : 2.17 in
• Overview Attributes
• Device Presentation : complete product
