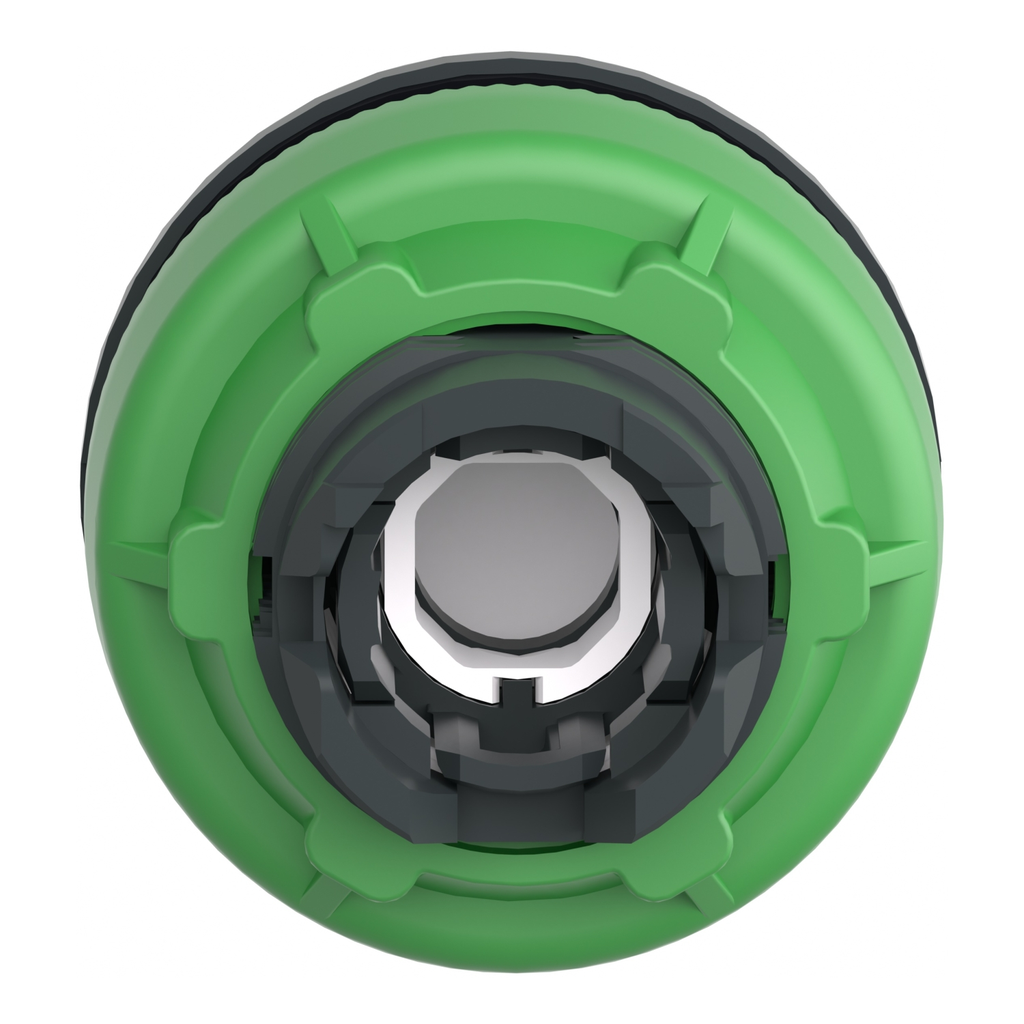

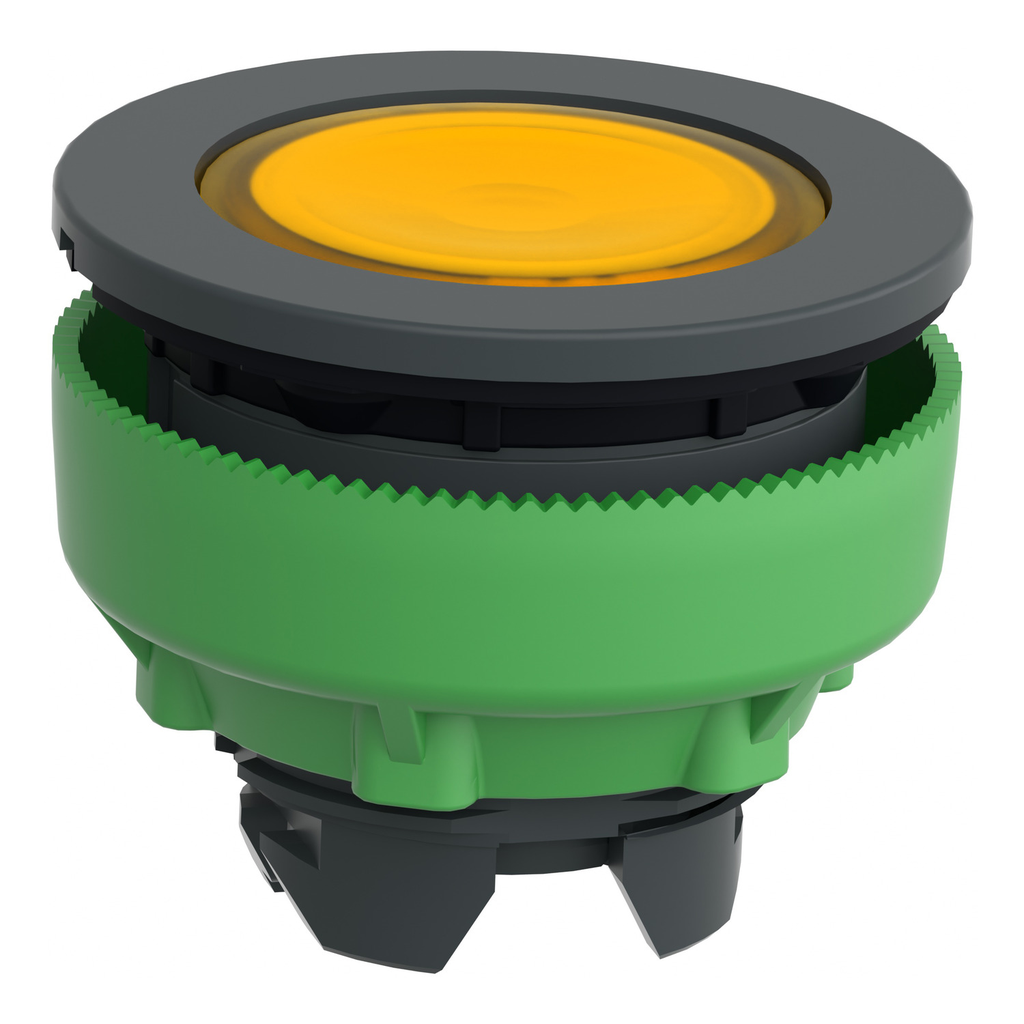

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, yellow flush mounted, 30mm, universal LED,

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FA58 3606481339133
14.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, antimicrobial, plastic, yellow flush mounted, 30mm, universal LED,-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Ik Degree Of Protection : IK03 EN 50102
    • Standards : GB 14048.5 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Protective Treatment : TC
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Product Certifications : GL || CSA || DNV || BV || LROS (Lloyds register of shipping) || UL Listed
  • Offer Sustainability
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : ENVEOLI1710010EN
    • Reach Free Of Svhc : Yes
    • Sustainable Offer Status : Green Premium product
    • Rohs Exemption Information : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Depth : 30 mm
    • Cap/Operator Or Lens Colour : orange
    • Group Of Product : flush push with inser of legend
    • Mechanical Durability : 10000000 cycles
    • Cad Overall Width : 37 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Net Weight : 0.017 kg
    • Marking : unmarked
    • Main Group : illum push-button
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || C3 6 single front mounting integral LED
    • Cad Overall Height : 37 mm
  • Specifications
    • Bezel Material : dark grey plastic
    • Shape Of Signaling Unit Head : round
    • Range Of Product : Harmony XB5
    • Type Of Operator : spring return
    • Product Compatibility : universal LED
    • Sale Per Indivisible Quantity : 1
    • Operator Profile : orange flush, unmarked
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for illuminated push-button
    • Head Type : built-in-flush
    • Device Short Name : ZB5
    • Operator Additional Information : for insertion of legend
