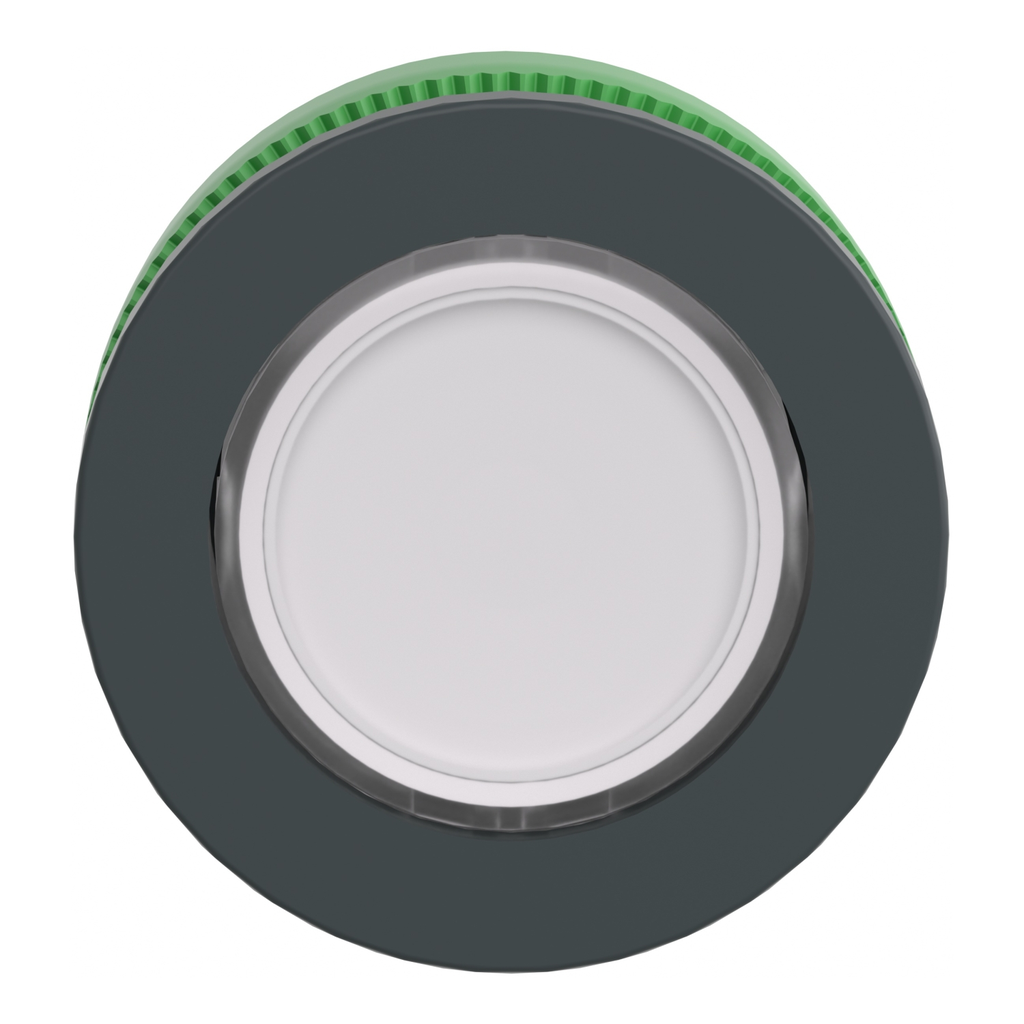

Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FA18 3606481339041
14.26 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for illuminated push button, Harmony XB5, antimicrobial, plastic, white flush mounted, 30mm, universal LED,-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.017 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : GL || DNV || UL Listed || BV || CSA || LROS (Lloyds register of shipping)
    • Ambient Air Temperature For Operation : -40-70 °C
    • Protective Treatment : TC
    • Ambient Air Temperature For Storage : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK03 EN 50102
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || GB 14048.5 || UL 508 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • China Rohs Regulation : X
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP1710010EN
    • Sustainable Offer Status : Green Premium product
    • Circularity Profile : ENVEOLI1710010EN
    • Reach Free Of Svhc : Yes
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Cad Overall Width : 37 mm
    • Net Weight : 0.017 kg
    • Mechanical Durability : 10000000 cycles
    • Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED || C4 6 single and double front mounting || C14 2 single front mounting || SF2 2 single front mounting || C3 6 single front mounting integral LED
    • Cap/Operator Or Lens Colour : white
    • Cad Overall Depth : 30 mm
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Height : 37 mm
    • Group Of Product : flush push with inser of legend
    • Marking : unmarked
    • Main Group : illum push-button
  • Specifications
    • Type Of Operator : spring return
    • Shape Of Signaling Unit Head : round
    • Operator Profile : white flush, unmarked
    • Device Short Name : ZB5
    • Sale Per Indivisible Quantity : 1
    • Head Type : built-in-flush
    • Range Of Product : Harmony XB5
    • Product Compatibility : universal LED
    • Operator Additional Information : for insertion of legend
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : head for illuminated push-button
    • Bezel Material : dark grey plastic
