SQUARE D

Harmony XB5, Antimicrobial Flush mounted push button head, plastic, recessed, yellow, Ø30, spring return, unmarked, dark grey bezel

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FA56 3606481339782
28.45 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Antimicrobial Flush mounted push button head, plastic, recessed, yellow, Ø30, spring return, unmarked, dark grey bezel-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.03 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Standards : UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Product Certifications : BV || DNV || UL Listed || CSA || LROS (Lloyds register of shipping) || GL
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Protective Treatment : TH
    • Ambient Air Temperature For Storage : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ik Degree Of Protection : IK03 IEC 50102
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Mercury Free : Yes
    • Rohs Exemption Information : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1710010EN
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Circularity Profile : ENVEOLI1710010EN
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
  • Complementary
    • Mechanical Durability : 10000000 cycles

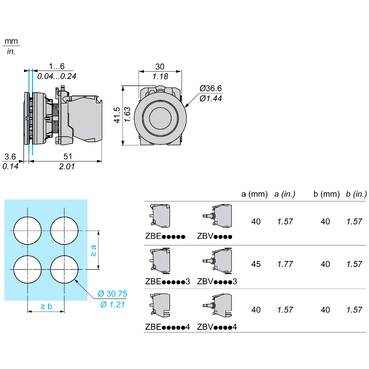

    • Cad Overall Depth : 30 mm
    • Net Weight : 0.03 kg
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Cad Overall Width : 37 mm
    • Cad Overall Height : 37 mm
  • Specifications
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for non-illuminated push-button
    • Mounting Diameter : 30.5 mm
    • Range Of Product : Harmony XB5
    • Head Type : built-in-flush
    • Type Of Operator : spring return
    • Bezel Material : dark grey plastic
    • Device Short Name : ZB5
    • Operator Additional Information : high guard
    • Shape Of Signaling Unit Head : round
    • Operator Profile : yellow recessed, unmarked
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
