SQUARE D

Harmony XB5, Antimicrobial Flush mounted push button head, plastic, projecting, yellow, Ø30, spring return, unmarked, dark grey bezel

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FL5 3606481339645
11.65 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB5, Antimicrobial Flush mounted push button head, plastic, projecting, yellow, Ø30, spring return, unmarked, dark grey bezel-1
  • Bezel Material: Plastic
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.031 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
  • Environment
    • Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
    • Standards : JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || UL 508 || JIS C8201-1
    • Ambient Air Temperature For Storage : -40-70 °C
    • Product Certifications : GL || BV || CSA || LROS (Lloyds register of shipping) || DNV || UL Listed
    • Protective Treatment : TH
    • Ik Degree Of Protection : IK03 IEC 50102
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Ambient Air Temperature For Operation : -40-70 °C
    • Overvoltage Category : class II IEC 60536
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Circularity Profile : ENVEOLI1710010EN
    • Mercury Free : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • China Rohs Regulation : X
    • Environmental Disclosure : ENVPEP1710010EN
  • Complementary

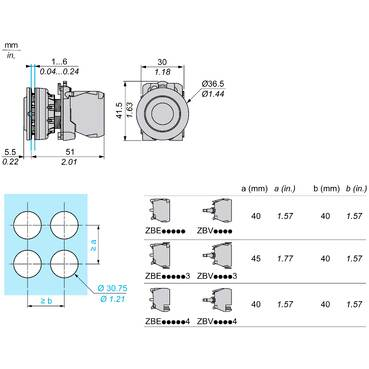

    • Cad Overall Width : 37 mm
    • Cad Overall Depth : 32 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
    • Device Presentation : basic element
    • Cad Overall Height : 37 mm
    • Net Weight : 0.031 kg
    • Mechanical Durability : 10000000 cycles
  • Specifications
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for non-illuminated push-button
    • Product Compatibility : ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
    • Head Type : built-in-flush
    • Operator Profile : yellow projecting, unmarked
    • Type Of Operator : spring return
    • Device Short Name : ZB5
    • Mounting Diameter : 30.5 mm
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
