SQUARE D

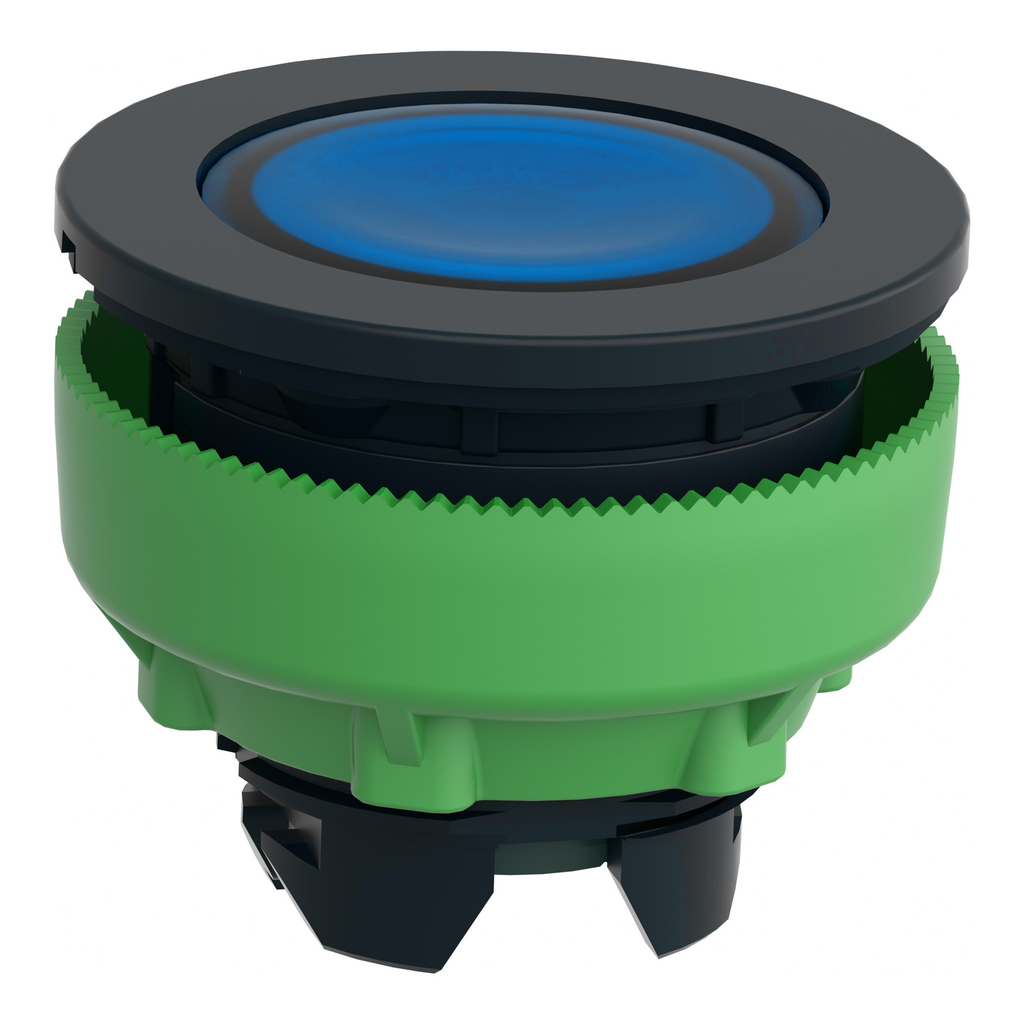

Head for pilot light, Harmony XB5, antimicrobial, plastic, blue, 30mm, universal LED, plain lens

HARMONY XB5, ANTIMICROBIAL FLU

SQDZB5FV063 3606481340771
6.92 / EA
http://schema.org/OutOfStock
  • Bezel Material: Plastic
  • IsSustainable: No
  • Net Weight: 0.015 kg
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, ISO 21702, ISO 22196:2011, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
QTY
  • Product Description
  • Specifications
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
  • Environment
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Standards : UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Protective Treatment : TH
    • Overvoltage Category : class II IEC 60536
    • Ambient Air Temperature For Operation : -40-70 °C
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ik Degree Of Protection : IK03 IEC 50102
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Toxic Heavy Metal Free : Yes
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
    • Circularity Profile : ENVEOLI1710010EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Environmental Disclosure : ENVPEP1710010EN
    • Mercury Free : Yes
    • Sustainable Offer Status : Green Premium product
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Electrical Composition Code : P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
    • Net Weight : 0.015 kg
    • Device Presentation : basic element
    • Cad Overall Depth : 30 mm
    • Cad Overall Height : 37 mm
    • Cad Overall Width : 37 mm
  • Specifications
    • Mounting Diameter : 30.5 mm
    • Sale Per Indivisible Quantity : 1
    • Product Or Component Type : head for pilot light
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB5
    • Bezel Material : dark grey plastic
    • Cap/Operator Or Lens Colour : blue
    • Head Type : built-in-flush
    • Device Short Name : ZB5
    • Product Compatibility : universal LED
    • Shape Of Signaling Unit Head : round
