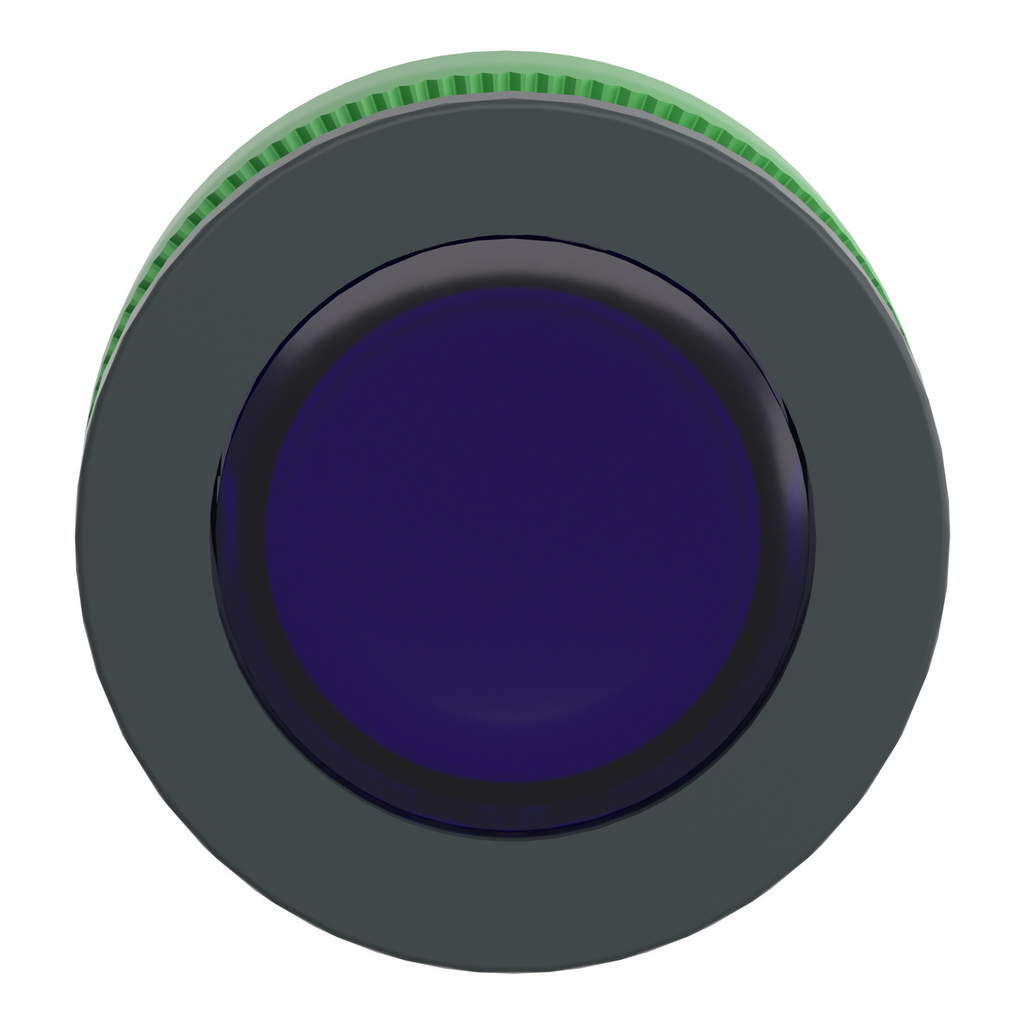

This 30mm head for illuminated push-button provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Environment
- Product Certifications : UL Listed || DNV || GL || BV || CSA || LROS (Lloyds register of shipping)
- Ik Degree Of Protection : IK03 conforming to EN 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : EN/IEC 60947-5-1 || GB 14048.5 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class II IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TC
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1710010EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1710010EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Important Information
- Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Complementary
- Main Group : illum push-button
- Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED
- Net Weight : 0.017 kg
- Cad Overall Height : 37 mm
- Device Presentation : basic element
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Cap/Operator Or Lens Colour : blue
- Mechanical Durability : 10000000 cycles
- Marking : unmarked
- Cad Overall Width : 37 mm
- Cad Overall Depth : 30 mm
- Group Of Product : flush push integral LED
- Specifications
- Operator Additional Information : with plain lens
- Range Of Product : Harmony XB5
- Mounting Diameter : 30.5 mm
- Type Of Operator : spring return
- Product Or Component Type : head for illuminated push-button
- Shape Of Signaling Unit Head : round
- Head Type : built-in-flush
- Sale Per Indivisible Quantity : 1
- Bezel Material : dark grey plastic
- Operator Profile : blue flush, unmarked
- Product Compatibility : universal LED
- Device Short Name : ZB5
