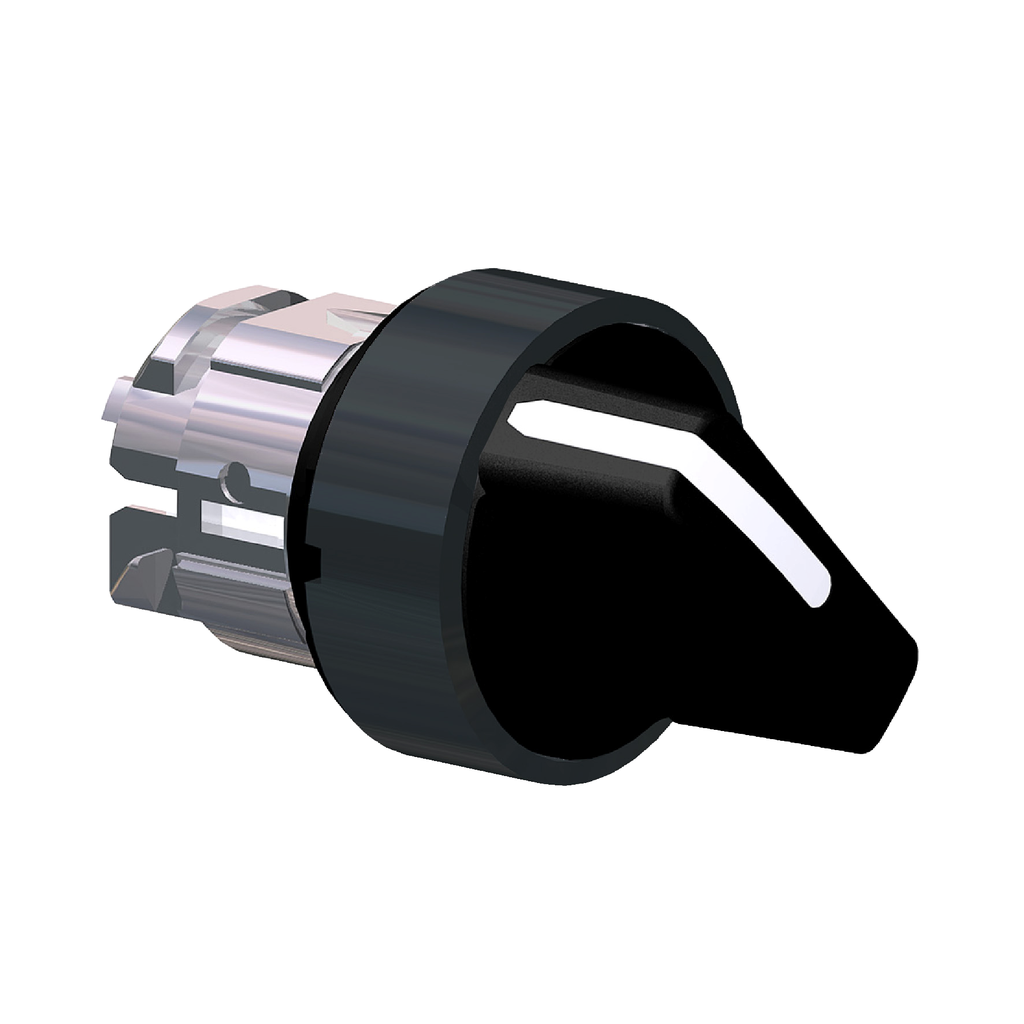

Head for selector switch, Harmony XB4, black metal, black, 22mm, 2 positions, stay put

HARMONY XB4, SELECTOR SWITCH H

SQDZB4BD27 3389110826920
25.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Head for selector switch, Harmony XB4, black metal, black, 22mm, 2 positions, stay put-1
  • Bezel Material: Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • IsSustainable: No
  • Net Weight: 0.04 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
This Harmony XB4, blue selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
QTY
  • Product Description
  • Specifications
This Harmony XB4, blue selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Ik Degree Of Protection : IK06 IEC 50102
    • Protective Treatment : TH
    • Product Certifications : LROS (Lloyds register of shipping) || DNV || CSA || BV || GL || UL Listed
    • Ip Degree Of Protection : IP67 IEC 60529 || IP69 || IP69K
    • Standards : IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || JIS C8201-5-1 || UL 508 || IEC 60947-1 || IEC 60947-5-5 || JIS C8201-1
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Overvoltage Category : class I IEC 60536
    • Ambient Air Temperature For Storage : -40-70 °C
    • Ambient Air Temperature For Operation : -40-70 °C
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Environmental Disclosure : ENVPEP1808008EN
    • Reach Free Of Svhc : Yes
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Toxic Heavy Metal Free : Yes
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Complementary
    • Device Presentation : basic element
    • Cad Overall Height : 29 mm
    • Cad Overall Width : 29 mm
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Mechanical Durability : 1000000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Cad Overall Depth : 44 mm
    • Net Weight : 0.04 kg
  • Specifications
    • Mounting Diameter : 22 mm
    • Type Of Operator : stay put
    • Device Short Name : ZB4
    • Sale Per Indivisible Quantity : 1
    • Range Of Product : Harmony XB4
    • Operator Position Information : 2 positions 90°
    • Head Type : standard
    • Shape Of Signaling Unit Head : round
    • Product Or Component Type : head for selector switch
    • Operator Profile : black standard handle
    • Bezel Material : black metal
