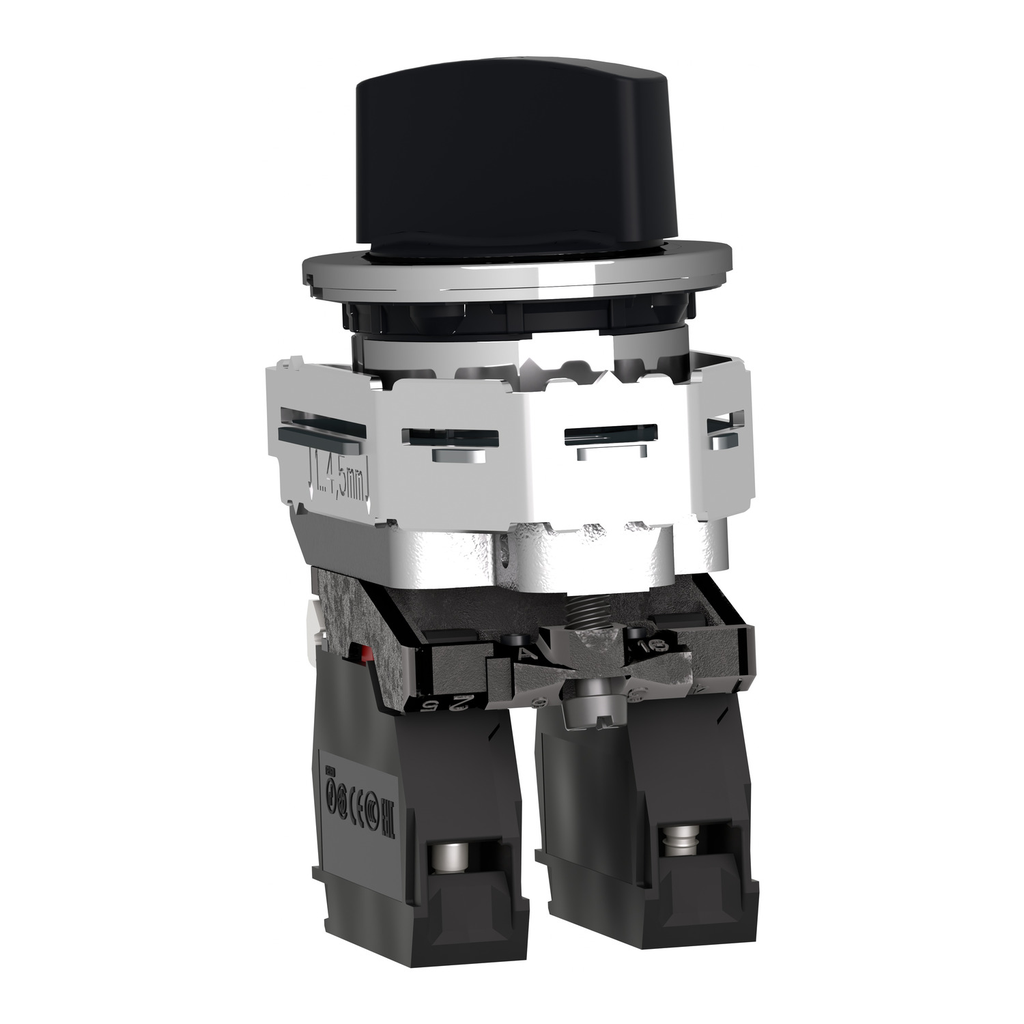

This flush mounted selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. Customized marking option through web customization tool is available in Schneider Electric website. The flus

• Connections Terminals
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1
• screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60
• Overvoltage Category
• class I conforming to IEC 60536
• IE Rated Operational Current
• 3 A 240 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947-5-1
• 6 A 120 V, AC-15, A600 IEC 60947
• ITH Conventional Free Air Thermal Current
• 10 A IEC 60947-5-1
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Type 13 UL 50 E
• Type 12 UL 50 E
• Type 4 UL 50 E
• Type 4X UL 50 E
• Shape Of Screw Head
• cross Philips no 1
• cross pozidriv No 1
• slotted flat Ø 4 mm
• slotted flat Ø 5.5 mm
• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.0211844624
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.1504529704
• 0.2 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.9 kg CO2 eq.
• 0.8719956812
• UI Rated Insulation Voltage
• 600 V 3)IEC 60947-1
• Fixing Center
• 40 x 50 mm 1...6 mm thick panel)
• Accessories
• ZBYF2101
• ZBYFP2101
• ZB4BZ62
• Electrical Durability
• 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
• 1000000 cycles, AC-15, 2 A 230 V 3600
• Vibration Resistance
• 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60
• Market Segmentation
• Commercial
• Industrial
• Positive Opening
• with IEC 60947-5-1 appendix K
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 0.1 kg CO2 eq.
• 0.123886
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Terminals Description ISO N 1
• (13-14)NO
• (21-22)NC
• Customizable
• no
• 1
• Carbon Footprint Of The Distribution Phase A4
• 0.0171307186
• 0 kg CO2 eq.
• Tightening Torque
• 0.8-1.2 N.m IEC 60947-1
• Torque Value
• 0.14 N.m NO changing electrical state
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Short Circuit Protection
• 10 A cartridge fuse gG IEC 60947-5-1
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Operator Profile
• black standard handle
• Electrical Reliability
• λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4
• λ < 10exp(-6) 5 V 1 mA
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac
• UIMP Rated Impulse Withstand Voltage
• 6 kV IEC 60947-1

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002141_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 1/12/2024
• Manufacturing Carbon Footprint : 0.871995681
• Distribution Carbon Footprint : 0.017130719
• Installation Carbon Footprint : 0.021184462
• Use Carbon Footprint : 0.123886
• End Of Life Carbon Footprint : 0.15045297
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308005EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : chromium plated metal
• Compatibility Code : XB4
• Contacts Usage : standard contacts
• Device Short Name : XB4F
• Fixing Collar Material : zamak
• Fixing Mode : by screws
• GCR Bridge : XB4FDCUST01
• Head Type : built-in-flush
• Mounting Diameter : 30.5 mm
• Operator Position Information : 2 positions 90°
• Package Weight Lbs : 130.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : selector switch
• Product Repair Index : A
• Range Of Product : Harmony XB4
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Type Of Operator : stay put
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 1.184649833
• Relationship Type : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2308005EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 131
• Functional Unit Description : This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devic
• Functional Unit Quantity : 1
• Functional Unit Unit : Unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 0.252288
• Energy Model Manufacturing A1 A3 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.009345116
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.008017492
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.000110183
• Acidification Ap Mole Of H Equiv Installation A5 : 8.40879E-05
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.00075428
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.000379073
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.000967188
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.005280802
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : 0.004215709
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : 0.000941637
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.000123456
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.001036909
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 1.17937346
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.867785366
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.017130719
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.020242405
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 0.123762
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.15045297
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.168688897
• Climate Change Total Kg Co2 Eq Total Life Cycle : 1.184649833
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.871995681
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.017130719
• Climate Change Total Kg Co2 Eq Installation A5 : 0.021184462
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 0.123886
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.15045297
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.169715161
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.000134979
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.000134967
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 7E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 7E-10
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 6.4E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : 3.8E-09
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -4.43912E-05
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 24.62270359
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 14.39006679
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.238659067
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.220502084
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 2.6862
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 7.087275649
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -3.47535178
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 170.152533
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 168.2678652
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.011527711
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.144571687
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 1.58076
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.147808366
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -2.898801788
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.000000106
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 9.74E-08
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 9E-10
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 6E-10
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 5.1E-09
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.000000002
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -7.87E-08
• Exported Energy Mj By Energy Vector Total Life Cycle : 0
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 9.1287E-06
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 8.7381E-06
• Freshwater Eutrophication Kg P Eq Distribution A4 : 6.4E-09
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.000000153
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.000000213
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 1.82E-08
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -4.526E-07
• Hazardous Waste Disposed Of Kg Total Life Cycle : 2.970532058
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 2.777755235
• Hazardous Waste Disposed Of Kg Distribution A4 : 0
• Hazardous Waste Disposed Of Kg Installation A5 : 0.000250422
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0026412
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.189885201
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -3.494824487
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 4.166E-07
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.000000409
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 7.6E-09
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -5.193E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 4.265E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 4.234E-07
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 1E-10
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 7E-10
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 2.3E-09
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -8.5E-09
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.007988955
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.006197715
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.00179124
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 1.029452677
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.91062532
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 4.16703E-05
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.000993161
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 0.11569
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.002102526
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.027470989
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.00147571
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.001241096
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 5.17435E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 2.22686E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.00008438
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 7.62225E-05
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.000110708
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.044705255
• Materials For Recycling Kg Manufacturing A1 A3 : 0
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0.011641126
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.033064129
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.010970184
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.00970425
• Net Use Of Fresh Water M3 Distribution A4 : 1.5127E-06
• Net Use Of Fresh Water M3 Installation A5 : 0.000210608
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.000107138
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.000946676
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.001729913
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 0.612261556
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.507132426
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.000600523
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.068913644
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0.0187316
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.016883363
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.363639632
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 1.852E-07
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 1.822E-07
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 1.4E-09
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 6E-10
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 1.1E-09
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -2.44E-08
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.004773937
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.004024008
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.000143401
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 4.48793E-05
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.00027486
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.000286788
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.000404164
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.000130751
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.000116686
• Radioactive Waste Disposed Of Kg Distribution A4 : 4.277E-07
• Radioactive Waste Disposed Of Kg Installation A5 : 9.2502E-06
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 3.0064E-06
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 1.3802E-06
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -6.42744E-05
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.016155126
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.013415116
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.000567682
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.000168084
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.00115784
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.000846405
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.001203874
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 24.62270359
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 14.39006679
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.238659067
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.220502084
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2.6862
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 7.087275649
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.47535178
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 25.33794791
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 14.59137247
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.238974841
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.236330237
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 3.1836
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 7.087670366
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -3.570215437
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.715699686
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.201647768
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000318484
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.015821574
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.49748
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.00043186
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.094918917
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.504685181
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.504685181
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 24.11746581
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 13.88482901
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.238659067
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.220502084
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 2.6862
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 7.087275649
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -3.47535178
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.230672626
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.230672626
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.172228193
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.485029691
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : -0.029022227
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.000318484
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.015821574
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0.49748
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.00043186
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0.077305328
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0.000007057
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0.000007057
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : selector switch
• Range Of Product : Harmony XB4
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=460293047&lang=en-us
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0%
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.184649833
• Circularity Profile : ENVEOLI2308005EN
• Environmental Disclosure : ENVPEP2308005EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2308005EN
• Pep Verification Date : 8/1/2023
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : complete product
