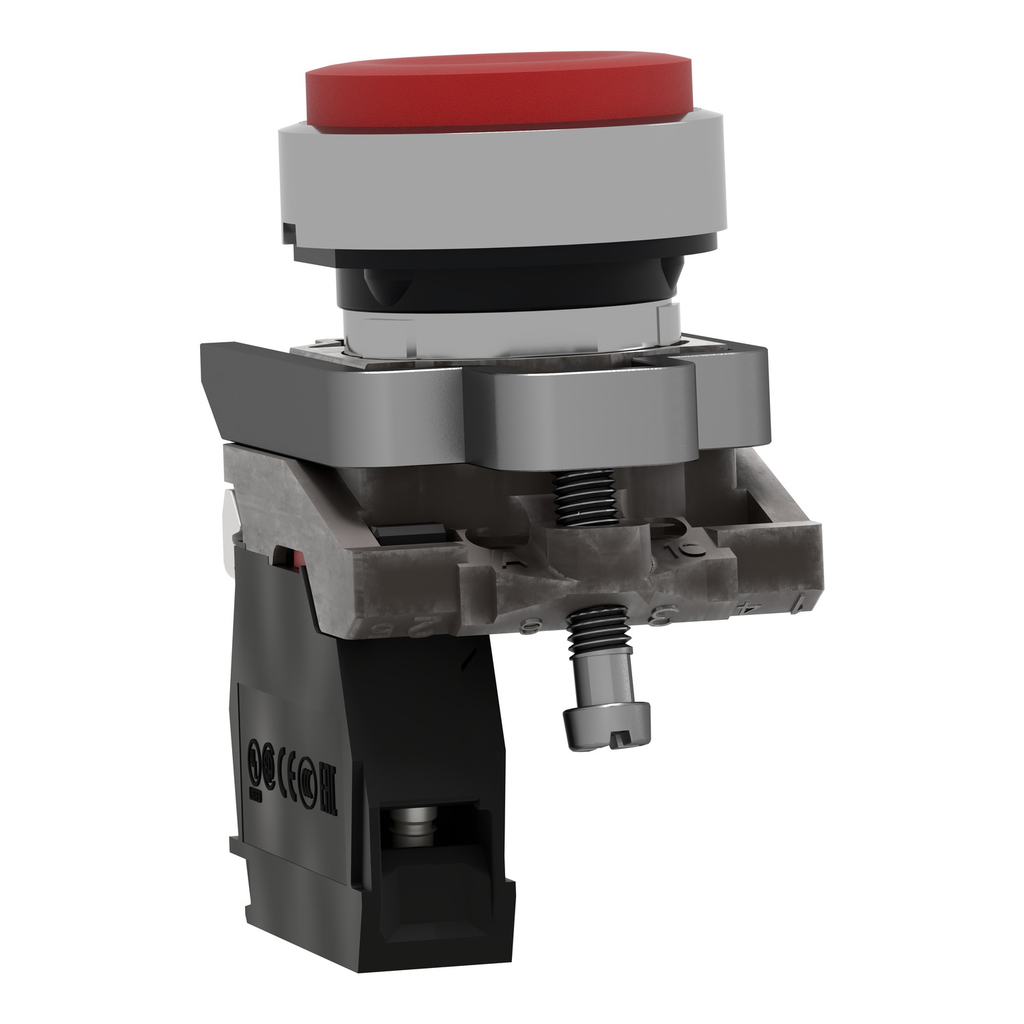

This Harmony XB4 projecting modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines and processes thanks to its protuding actuator. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

• Specifications
• Range Of Product : Harmony XB4
• Mounting Diameter : 22 mm
• Type Of Operator : spring return
• Product Or Component Type : push-button
• Shape Of Signaling Unit Head : round
• Fixing Collar Material : zamak
• Head Type : standard
• Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
• Contacts Type And Composition : 1 NC
• Sale Per Indivisible Quantity : 1
• Bezel Material : chromium plated metal
• Contact Operation : slow-break
• Operator Profile : red projecting, unmarked
• Device Short Name : XB4
• Contractual warranty
• Warranty : 18 months
• Complementary
• Contacts Usage : standard contacts
• Height : 47 mm
• Terminals Description Iso N°1 : (21-22)NC
• Short-Circuit Protection : 10 A cartridge fuse gG EN/IEC 60947-5-1
• Operating Force : 3.5 N NC changing electrical state
• Operating Travel : 1.5 mm NC changing electrical state) || 4.3 mm total travel)
• Contacts Material : silver alloy (Ag/Ni)
• Positive Opening : with EN/IEC 60947-5-1 appendix K
• [Ith] Conventional Free Air Thermal Current : 10 A EN/IEC 60947-5-1
• Net Weight : 0.081 kg
• [Uimp] Rated Impulse Withstand Voltage : 6 kV EN/IEC 60947-1
• Device Presentation : complete product
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
• [Ui] Rated Insulation Voltage : 600 V 3)EN/IEC 60947-1
• [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
• Mechanical Durability : 10000000 cycles
• Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
• Width : 30 mm
• Depth : 57 mm
• Tightening Torque : 0.8-1.2 N.m EN 60947-1
• Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
• Offer Sustainability
• Rohs Exemption Information : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP1808008EN
• Sustainable Offer Status : Green Premium product
• Toxic Heavy Metal Free : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• China Rohs Regulation : X
• Circularity Profile : ENVEOLI1808008EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Environment
• Product Certifications : GL || DNV || LROS (Lloyds register of shipping) || CSA || BV || UL Listed
• Ik Degree Of Protection : IK06 IEC 50102
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
• Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
• Ambient Air Temperature For Storage : -40-70 °C
• Overvoltage Category : class I IEC 60536
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Protective Treatment : TH
