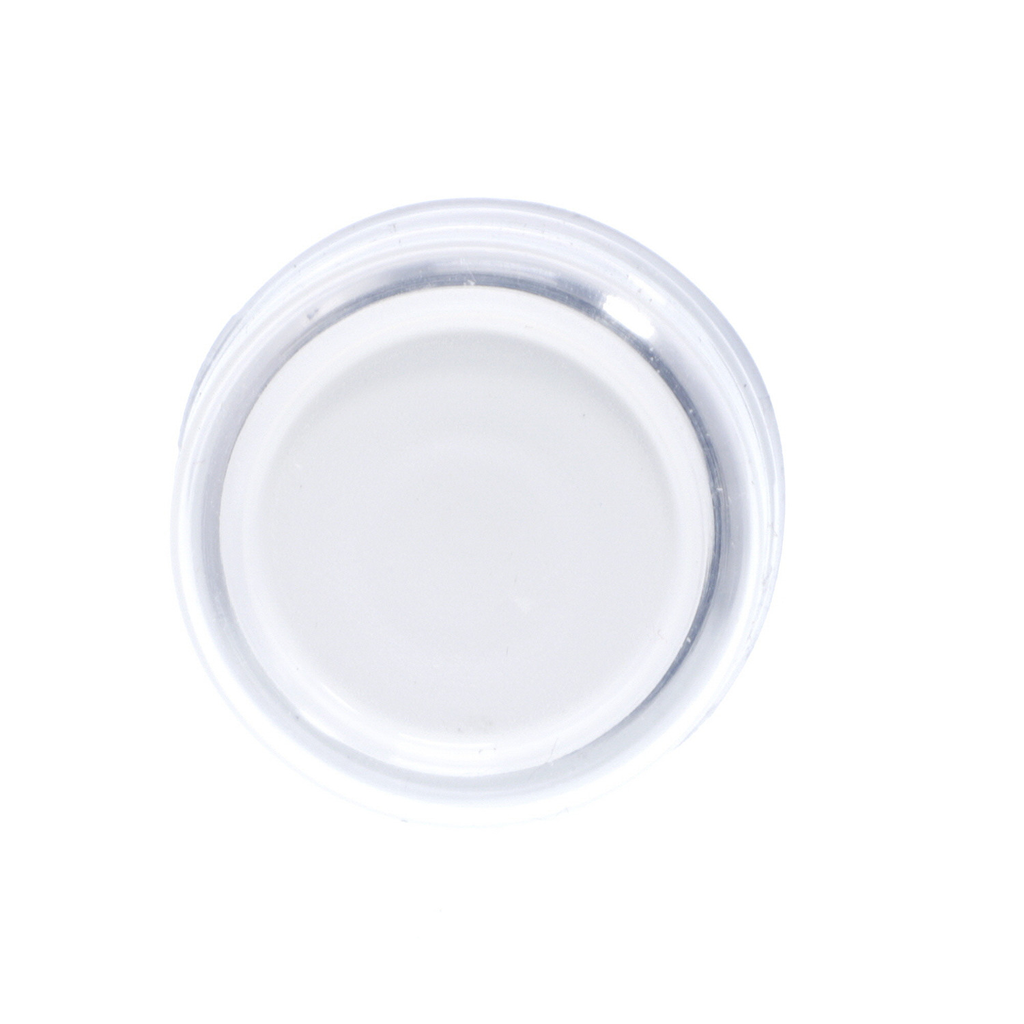

This Harmony XB4, clear silicone booted white button head operates with a spring return mechanism. This silicone booted button head provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Environment
- Product Certifications : LROS (Lloyds register of shipping) || DNV || CSA || UL Listed || GL || BV
- Ik Degree Of Protection : IK06 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-5-1 || UL 508 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-5 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class I IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1808008EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1808008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Complementary
- Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
- Cad Overall Height : 30 mm
- Device Presentation : basic element
- Mechanical Durability : 10000000 cycles
- Cad Overall Width : 30 mm
- Cad Overall Depth : 35 mm
- Specifications
- Product Compatibility : not compatible with legend holder
- Operator Additional Information : clear boot
- Range Of Product : Harmony XB4
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for non-illuminated push-button
- Shape Of Signaling Unit Head : round
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : chromium plated metal
- Operator Profile : white projecting, unmarked
- Device Short Name : ZB4
