SQUARE D

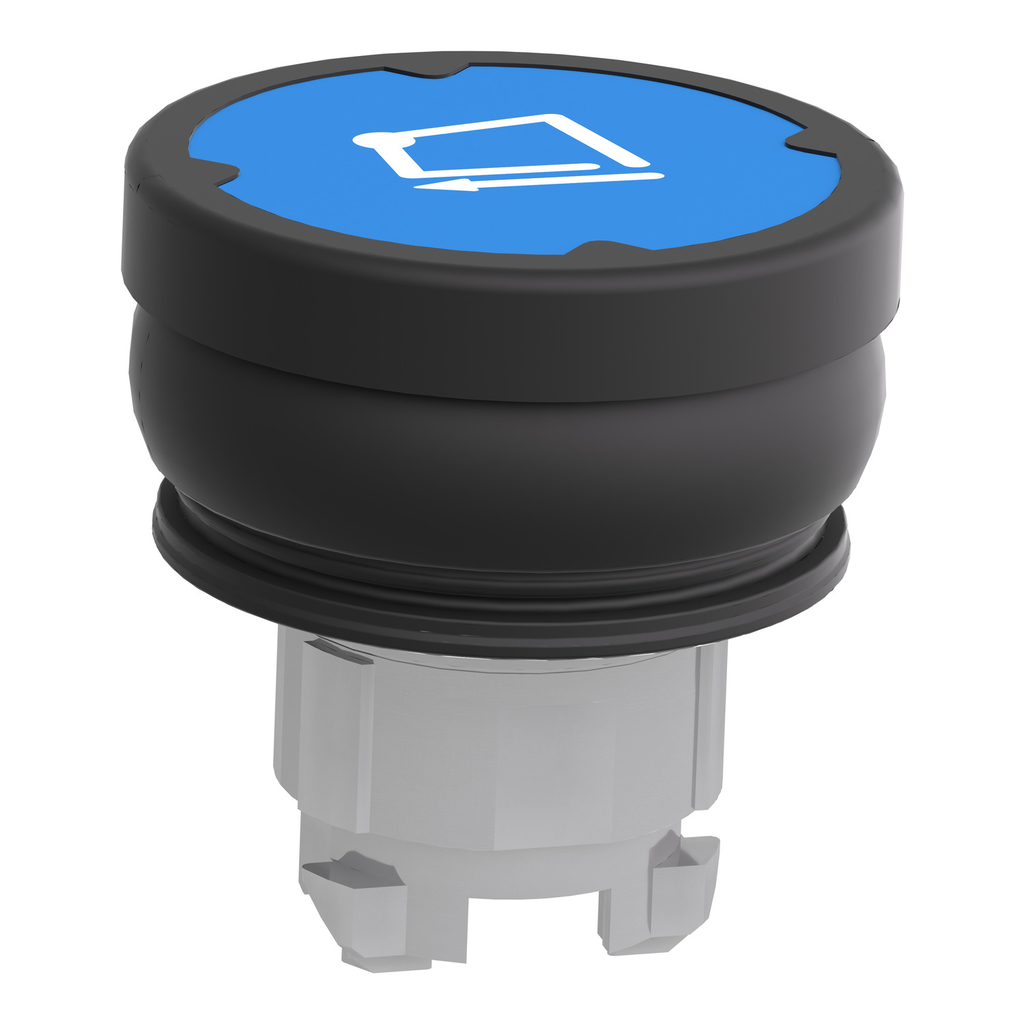

Harmony XB4, Push button head, metal, flush, blue, Ø22, spring return, for harsh environment, marking-legend rotated 90°

HARMONY XB4, PUSH BUTTON HEAD,

SQDZB4BC68006RA 3606480444708
32.03 / EA
http://schema.org/OutOfStock
Mayer-DDS-Harmony XB4, Push button head, metal, flush, blue, Ø22, spring return, for harsh environment, marking-legend rotated 90°-1
  • Bezel Material: Chromium Plated Metal
  • Certifications: CE, CSA, UL
  • IsSustainable: No
  • Net Weight: 0.036 kg
  • Standard: CSA C22.2, IEC 60947-1, IEC 60947-5-1, UL 508
  • Storage Temperature: -40-85 °C
  • Warranty Length: 18 mth
This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a dark blue flush cap, diameter 37mm, marked type H006 white. The marking-legend is rotated 90°. This head allows the associated contact block to be mounted in horizontal position (instead of vertical). It operates with with spring return mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 36g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
QTY
  • Product Description
  • Specifications
This head for push button is a separate component of the range of control and signaling units, Harmony XB4, metal, diameter 22mm. It has a chromium-plated metal bezel. It is supplied with a dark blue flush cap, diameter 37mm, marked type H006 white. The marking-legend is rotated 90°. This head allows the associated contact block to be mounted in horizontal position (instead of vertical). It operates with with spring return mechanism. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP69 / IP69K, making it ideal for operation in harsh environments. It weighs 36g. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications
  • Environment
    • Resistance To High Pressure Washer : 90 Pa 82.5 °C
    • Ambient Air Temperature For Storage : -40-85 °C
    • Standards : UL 508 || IEC 60947-5-1 || IEC 60947-1 || CSA C22.2
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69K || IP69
    • Ik Degree Of Protection : IK06 IEC 62262
    • Nema Degree Of Protection : NEMA 4 UL 508 || NEMA 13 || NEMA 12
    • Product Certifications : UL || CSA || CE
    • Ambient Air Temperature For Operation : -40-70 °C
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Sustainable Offer Status : Green Premium product
    • Circularity Profile : ENVEOLI1808008EN
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • Reach Free Of Svhc : Yes
  • Complementary
    • Operator Profile : blue flush, type H006 white)
    • Cad Overall Height : 18.5 mm
    • Group Of Product : flush marked type H006
    • Main Group : harsh environment
    • Marking : type H006
    • Cad Overall Depth : 37 mm
    • Electrical Composition Code : C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    • Cad Overall Width : 37 mm
    • Net Weight : 0.036 kg
    • Mechanical Durability : 3000000 cycles
    • Shape Of Signaling Unit Head : round
    • Operator Additional Information : horizontal mounting
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Cap/Operator Or Lens Colour : blue
    • Type Of Operator : spring return
    • Electrical Shock Protection Class : class I IEC 61140
    • Colour Of Marking : white
  • Specifications
    • Range Of Product : Harmony XB4
    • Device Short Name : ZB4
    • Head Type : standard
    • Mounting Diameter : 22 mm
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Product Or Component Type : head for push-button
