Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC

Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC

SQDXB4FA61 XB4FA61 3606489580148
33.18 / EA
http://schema.org/OutOfStock
Mayer-DDS-Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC-1
  • Bezel Material: Chromium Plated Metal
  • Depth: 55 mm
  • Head Type: Built-in-flush
  • Operating Force: 3.8 N
  • Warranty Length: 18 mth

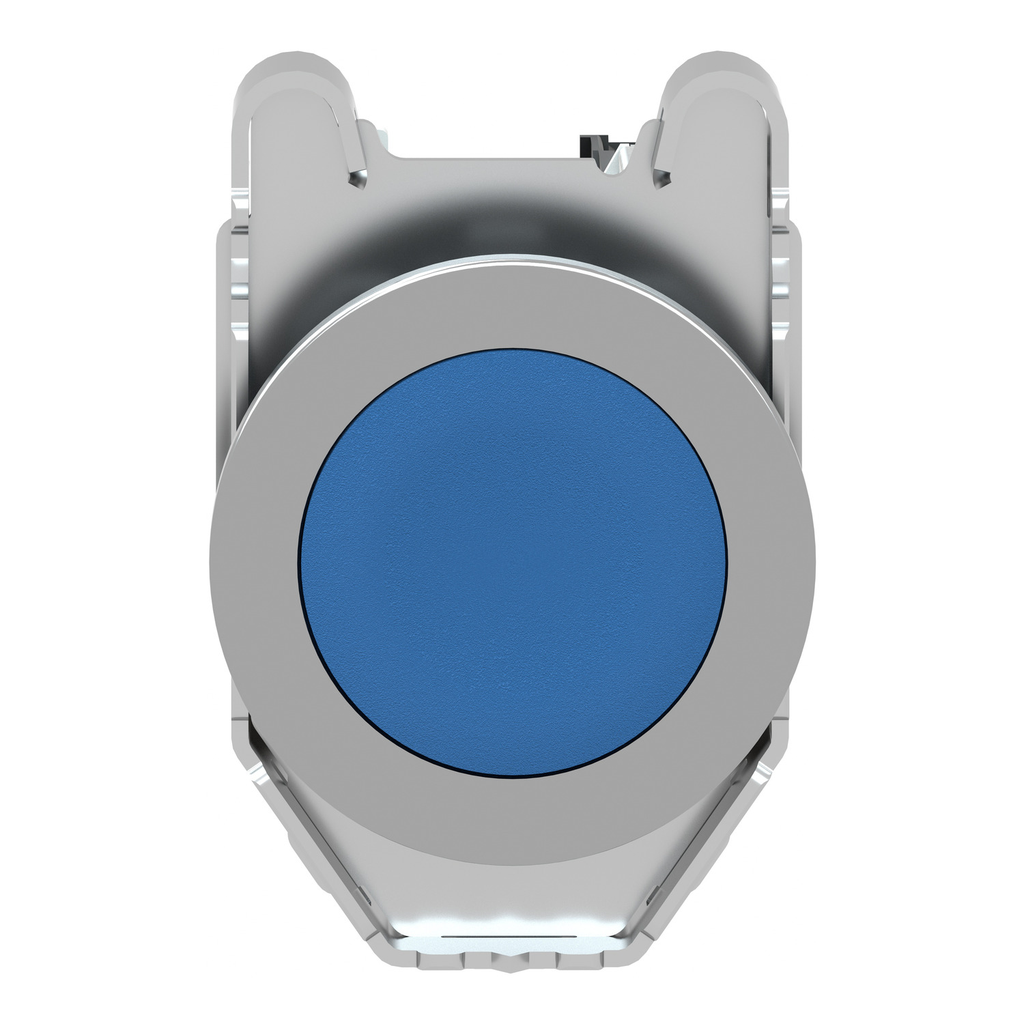

This flush mounted pushbutton is a part of the Harmony XB4 metallic range and is a complete product. The mounting diameter is 30.5 mm. It has no marking. Customized marking option through web customization tool in Schneider Electric website is available. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NO slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and blue. The bezel is chromium plated and the fixing collar is zamak. The weight of this pushbutton is 116 grams, height is 47 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002139_3D-CAD
  • Physical Attributes
    • Cap Operator Or Lens Color : blue, blue
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
    • Standards : CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C8201-5-1, JIS C8201-1
  • Complementary Attributes
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Customizable : 1, no
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    • Operating Travel : 2.6 mm NO changing electrical state), 4.3 mm total travel)
    • Operator Profile : blue flush, unmarked, flush
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Terminals Description Iso N 1 : (13-14)NO, (13-14)NO
    • Cap Operator Or Lens Color : blue, blue
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0142540451, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.1378727165
    • Carbon Footprint Of The Installation Phase A5 : 0.0218620641, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.8 kg CO2 eq., 0.7725940688
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0.0034791549
    • Medium Desc : Push button flush mounted, Harmony XB4, metal, blue, 30mm, spring return, unmarked, 1NC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : Y
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308035EN
    • Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Average Percentage Of Recycled Metal Content : 18 %
    • Average Percentage Of Recycled Plastic Content : 19 %
    • Bezel Material : chromium plated metal
    • Compatibility Code : XB4
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Contacts Type And Composition : 1 NO
    • Contacts Usage : standard contacts
    • Device Short Name : XB4F
    • Fixing Collar Material : zamak
    • Fixing Mode : by screws
    • Gcr Bridge : XB4FACUST01
    • Head Type : built-in-flush
    • Mechanical Durability : 10000000 cycles
    • Mounting Diameter : 30.5 mm
    • Operating Force : 3.8 N NO changing electrical state
    • Overvoltage Category : class I conforming to IEC 60536
    • Positive Opening : without
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : push-button
    • Product Repair Index : A
    • Protective Treatment : TH
    • Range Of Product : Harmony XB4
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Shape Of Signaling Unit Head : round
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Software Version : v5.9.4
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Type Of Operator : spring return
    • Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
    • Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Contacts Composition : 1 NO
    • Operator Profile 1 Operator Profile : flush
    • Operator Profile 1 Marking : unmarked
    • Pep Code : ENVPEP2308035_V1-EN
    • Database Version : 2022-01
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
    • Functional Unit Unit : Unit
    • Energy Model Manufacturing A1 A3 2 : Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
    • Height Nominal : 47 mm
    • Width Nominal : 36.6 mm
  • Environment Attributes Main
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K
    • Nema Degree Of Protection : UL type 4X/13, NEMA 13, NEMA 4X
    • Product Compatibility : ZBYF..., ZBZF32, ZBZF33
    • Take Back : Nej
    • Recycled Metal Content At Cr Level : 18 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 0.9500620494
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2308035EN
    • Environmental Disclosure : ENVPEP2308035_V1-EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2308035_V1-EN
    • Pep Verification Date : 2023-08-01
    • Pcr Version : PEP-PCR-ed4-2021 09 06
    • Psr Version : PSR-0005-ed2-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : push-button
    • Range Of Product : Harmony XB4
  • ETIM
    • ETIM 8 : EC001028
    • ETIM 9 : EC001028
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Depth : 55 mm
  • Overview Attributes
    • Device Presentation : complete product
