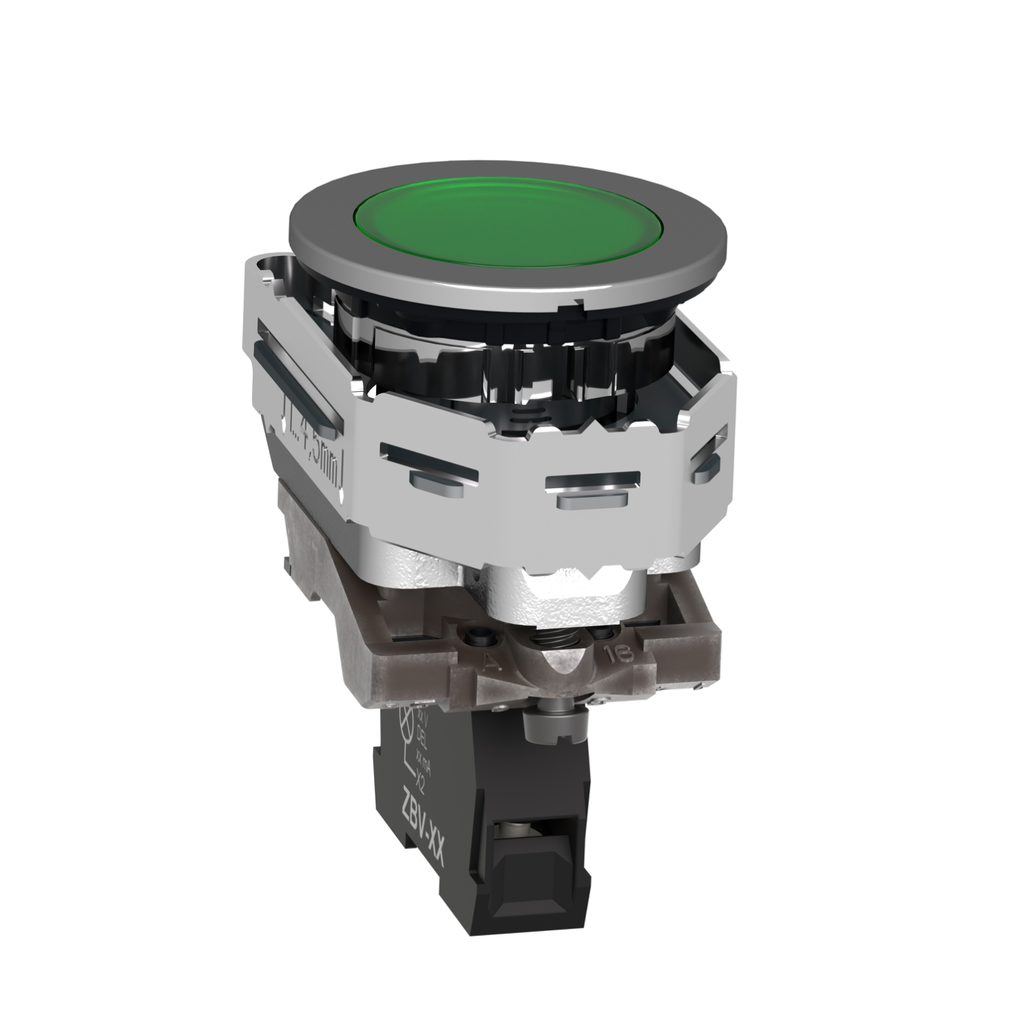

Pilot light, Harmony XB4,metal, green flush mounted, 30mm, universal LED, plain lens, 230...240V AC

Harmony XB4, Pilot light flush

SQDXB4FVM3 XB4FVM3 3606489580599
69.30 / EA
http://schema.org/OutOfStock
Mayer-DDS-Pilot light, Harmony XB4,metal, green flush mounted, 30mm, universal LED, plain lens, 230...240V AC-2
  • Bezel Material: Chromium Plated Metal
  • Country of Origin: France
  • Head Type: Built-in-flush
  • Height: 36.6 mm
  • Light Source: Universal LED
  • Net Weight: 0.112 kg
  • Warranty Length: 18 mth
  • Weight: 0.112 kg
  • Width: 36.6 mm
This flush mounted pilot light is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and green. The bezel is chromium plated and the fixing collar is zamak. The weight of this pilot light is 112 grams, height and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
QTY
  • Product Description
  • Features
  • Specifications
This flush mounted pilot light is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and green. The bezel is chromium plated and the fixing collar is zamak. The weight of this pilot light is 112 grams, height and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environment
    • Product Certifications : UL Listed || CSA || CCC || EAC
    • Ik Degree Of Protection : IK06 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-55 °C
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Standards : CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 || 2 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
    • Ambient Air Temperature For Storage : -40-70 °C
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Electrical Shock Protection Class : class I IEC 60536
    • Protective Treatment : TH
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Electromagnetic Emission : class B IEC 55011
  • Contractual warranty
    • Warranty : 18 months
  • Environmental data
    • Packaging Made With Recycled Cardboard : Yes
    • Environmental Disclosure : ENVPEP2308026EN
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 3d14fd98-3859-4733-a5ee-a3016769973c
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Circularity Profile : ENVEOLI2308026EN
    • Take-Back : No
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 94.161349284
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Fixing Mode : by screw
    • Net Weight : 0.112 kg
    • Cad Overall Height : 36.6 mm
    • Current Consumption : 14 mA
    • Device Presentation : complete product
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
    • Service Life : 100000 h at rated voltage and 25 °C
    • Surge Withstand : 1 kV IEC 61000-4-5
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Signalling Type : steady
    • Supply Voltage Limits : 195-264 V AC
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Cad Overall Width : 36.6 mm
    • Cad Overall Depth : 53.6 mm
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
    • Device Mounting : fixing hole 30.75 mm +/- 0.25 mm
  • Specifications
    • Country of Origin : France
    • Width : 36.6 mm
    • Height : 36.6 mm
    • Weight : 0.112 kg
    • Operator Additional Information : with plain lens
    • Range Of Product : Harmony XB4
    • Light Source : universal LED
    • Mounting Diameter : 30.5 mm
    • Product Or Component Type : pilot light
    • Shape Of Signaling Unit Head : round
    • Cap/Operator Or Lens Colour : green
    • Fixing Collar Material : zamak
    • Head Type : built-in-flush
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Device Short Name : XB4F
    • [Us] Rated Supply Voltage : 230...240 V AC 50/60 Hz
    • Bulb Base : integral LED
