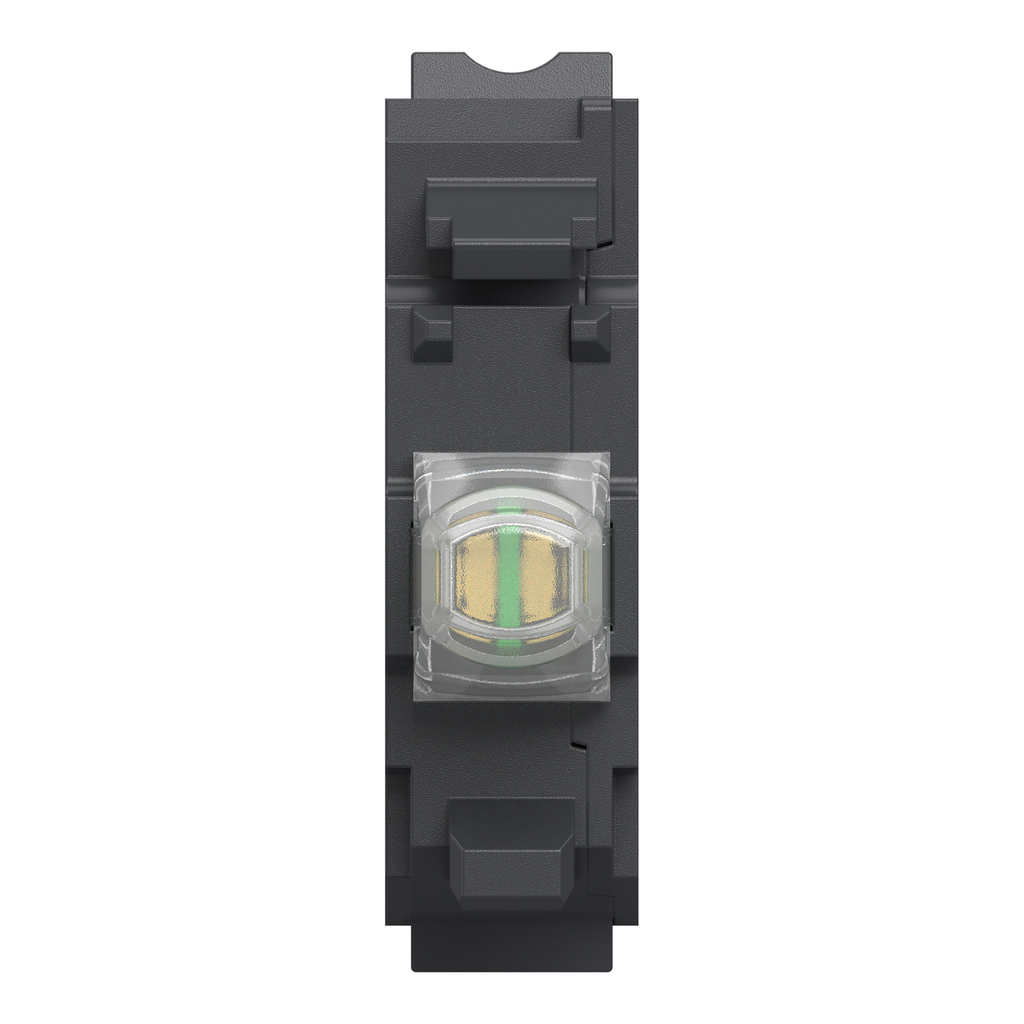

This Harmony white compact light block operates with a universal LED. It is supplied with 24V AC DC and uses push-in terminal connections. It has a plastic body. It is compatible with Harmony XB4 and Harmony XB5 units. This light block allows fast and ea

• Connections Terminals
• push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1
• push-in, >= 1 x 0.34 m
• Supply Voltage Limits
• 20.4-26.4 V DC
• 20.4-26.4 V AC
• Range Of Product
• Harmony XB4
• Harmony XB5
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.012806549
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.018352488
• Standards
• IEC 60947-1
• IEC 60947-5-1
• IEC 60947-5-4
• IEC 60947-5-5
• UL 60947-1
• UL 60947-5-1
• UL 60947-5-5
• UL 1059
• UL 486E
• CSA C22.2 No 60947-1
• CSA C22.2 No 60947-5-1
• CSA C22.2 No 158
• CSA C22.2 No 65
• IACS E10
• Ip Degree Of Protection
• IP20 IEC 60529
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.1 kg CO2 eq.
• 0.1496500803
• Accessories
• ZB5AZ905
• ZBY2101
• ZBYLEG503001
• ZBYP2101
• Service Life
• 100000 h at rated voltage and 25 °C
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 5 kg CO2 eq.
• 4.9328526316
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Surge Withstand
• 1 kV IEC 61000-4-5
• Us Rated Supply Voltage
• 24 V AC/DC 50/60 Hz
• Electromagnetic Emission
• class B IEC 55011
• Resistance To Electrostatic Discharge
• 4 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• 8 kV in
• Carbon Footprint Of The Distribution Phase A4
• 0.0055871589
• 0 kg CO2 eq.
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Product Certifications
• EAC
• IECEE CB Scheme
• CCC
• UL
• CSA

• Physical Attributes
• Cad Overall Depth : 9.8 mm
• Cad Overall Height : 14.8 mm
• Cad Overall Width : 35.6 mm
• Light Source Color : white
• Important Information Attributes
• Country Id : US
• B2B Bullet Point 1 : Compatible with improved color heads
• B2B Bullet Point 2 : Universal LED block to be used for all colors
• B2B Bullet Point 3 : Quick and easy assembly and disassembly
• B2B Bullet Point 4 : Excellent mechanical connection with operator head
• B2B Bullet Point 5 : A wide choice of contact blocks for general purposes or specific applications (low current, standard)
• B2B Bullet Point 6 : Various types of connection: screw clamp, connector, Faston connector, spring terminal, or printed circuit board
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-09
• ETIM 10 : EC000204
• Manufacturing Carbon Footprint : 0.1496500803
• Distribution Carbon Footprint : 0.0055871589
• Installation Carbon Footprint : 0.012806549
• Use Carbon Footprint : 4.9328526316
• End Of Life Carbon Footprint : 0.018352488
• Legacy WEEE Scope : In
• WEEE Product Category : 5
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2302007EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS Eur In Scope : No
• ROHS Eur Status : Compliant with Exemptions
• ROHS Eur Conformity Date : 627
• ROHS Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS Eur Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 5
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : integral LED
• Compatibility Code : ZBV
• Current Consumption : 15 mA
• Device Short Name : ZBV
• Light Block Supply : direct
• Light Source : universal LED
• Light Source Color : white
• Mounting Of Block : front mounting
• Package Weight Lbs : 5 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : light block
• Protective Treatment : TH
• Returnability : Yes
• Sale Per Indivisible Quantity : 5
• Signalling Type : steady
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 5 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 5.1192489077
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : light block
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=6692360&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 5.1192489077
• Ambient Air Temperature For Operation : -40-70 °C
• Ambient Air Temperature For Storage : -40-70 °C
• Circularity Profile : ENVEOLI2302007EN
• Environmental Disclosure : ENVPEP2302007EN
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : France
• Overview Attributes
• Device Presentation : basic element
