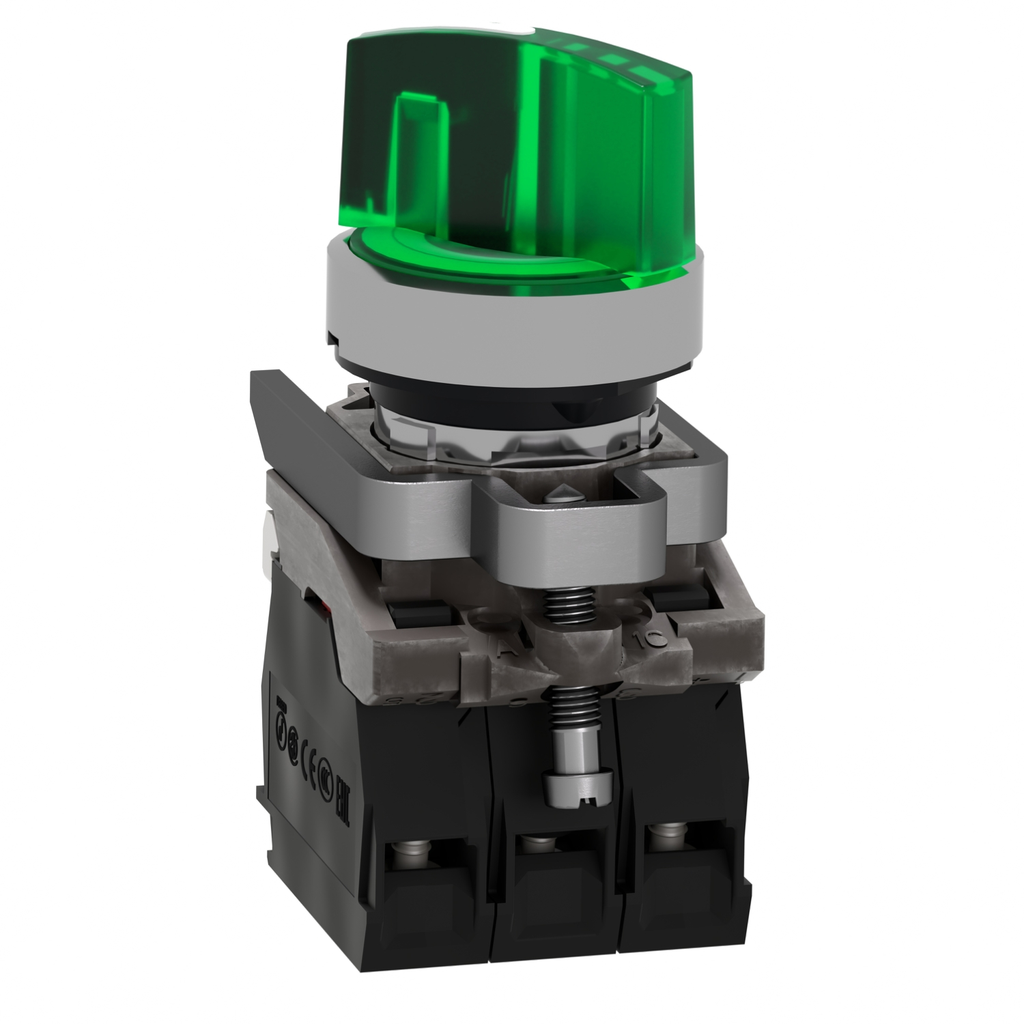

Illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 24V AC DC

ILLUMINATED SELECTOR SWITCH, M

SQDXB4BK123B5 XB4BK123B5 3389110892192
115.82 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL
  • Contact Material: Silver Alloy
  • Current: 18 mA
  • Depth: 68 mm
  • Height: 47 mm
  • Net Weight: 0.111 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
  • Width: 30 mm
QTY
  • Product Description
  • Specifications
This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
  • Environment
    • Product Certifications : DNV || LROS (Lloyds register of shipping) || GL || BV || CSA || UL
    • Ik Degree Of Protection : IK04 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
    • Standards : IEC 60947-5-4 || IEC 60947-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-5-1 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Electrical Shock Protection Class : class I IEC 60536
    • Protective Treatment : TH
    • Resistance To Fast Transients : 2 kV IEC 61000-4-4
    • Electromagnetic Emission : class B IEC 55011
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Important Information
    • Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
  • Complementary
    • Contacts Usage : standard contacts
    • Height : 47 mm
    • Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
    • Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Contacts Material : silver alloy (Ag/Ni)
    • Positive Opening : with IEC 60947-5-1 appendix K
    • [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Net Weight : 0.111 kg
    • [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
    • Current Consumption : 18 mA
    • Device Presentation : complete product
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    • Service Life : 100000 h at rated voltage and 25 °C
    • Surge Withstand : 1 kV IEC 61000-4-5
    • [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Signalling Type : steady
    • Operating Torque : 0.14 N.m NO changing electrical state
    • [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Supply Voltage Limits : 19.2-30 V DC || 21.6-26.4 V AC
    • Mechanical Durability : 1000000 cycles
    • Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
    • Width : 30 mm
    • Depth : 68 mm
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
  • Specifications
    • Range Of Product : Harmony XB4
    • Light Source : universal LED
    • Mounting Diameter : 22 mm
    • Type Of Operator : stay put
    • Product Or Component Type : illuminated selector switch
    • Shape Of Signaling Unit Head : round
    • Fixing Collar Material : zamak
    • Head Type : standard
    • Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Contacts Type And Composition : 1 NO + 1 NC
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Contact Operation : slow-break
    • Operator Profile : green standard handle
    • Operator Position Information : 2 positions 90°
    • Device Short Name : XB4
    • [Us] Rated Supply Voltage : 24 V AC/DC 50/60 Hz
    • Bulb Base : integral LED
