This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 120V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
- Environment
- Product Certifications : GL || LROS (Lloyds register of shipping) || CSA || BV || UL || DNV
- Ik Degree Of Protection : IK04 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
- Standards : IEC 60947-5-5 || IEC 60947-5-1 || UL 508 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ambient Air Temperature For Storage : -40-70 °C
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electrical Shock Protection Class : class I IEC 60536
- Protective Treatment : TH
- Resistance To Fast Transients : 2 kV IEC 61000-4-4
- Electromagnetic Emission : class B IEC 55011
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1808008EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1808008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Important Information
- Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Complementary
- Contacts Usage : standard contacts
- Height : 47 mm

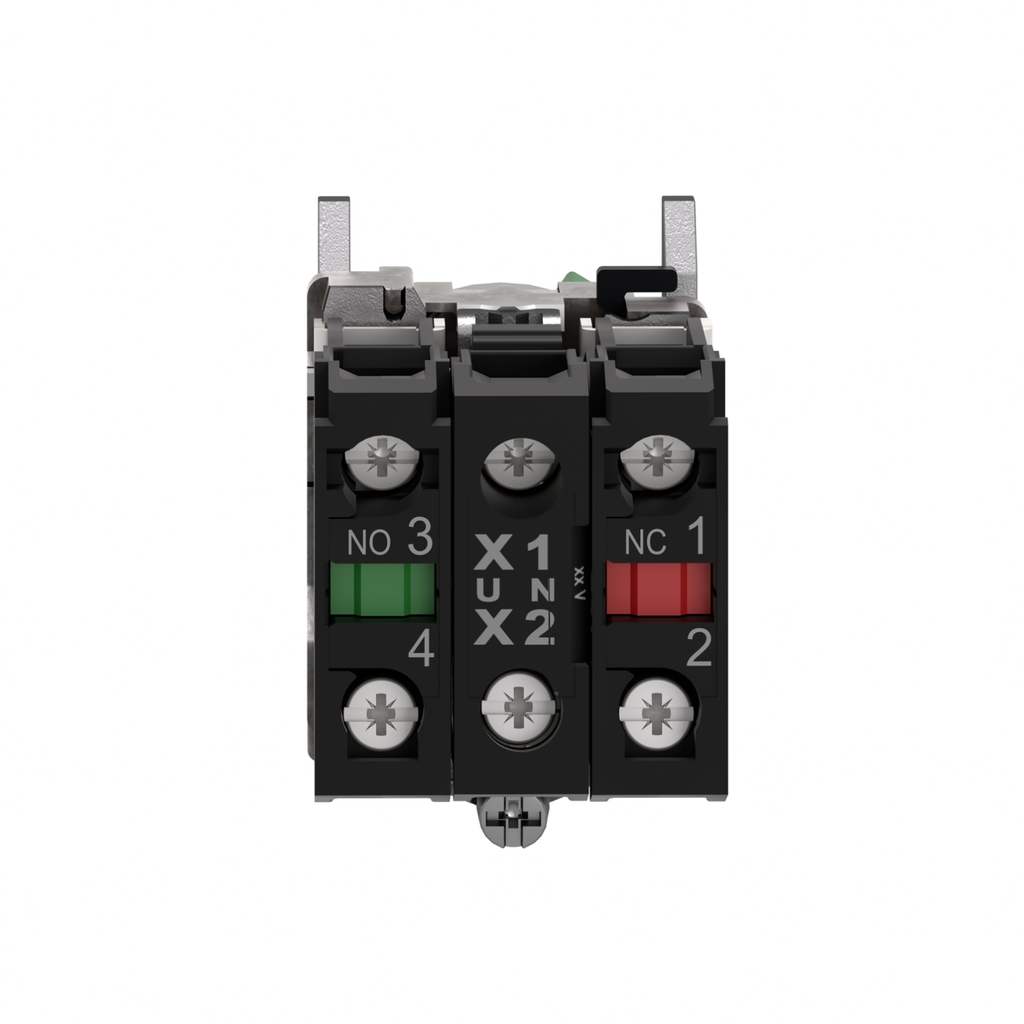

- Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
- Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
- Contacts Material : silver alloy (Ag/Ni)
- Positive Opening : with IEC 60947-5-1 appendix K
- [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
- Net Weight : 0.111 kg
- [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
- Current Consumption : 14 mA
- Device Presentation : complete product
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
- Service Life : 100000 h at rated voltage and 25 °C
- Surge Withstand : 1 kV IEC 61000-4-5
- [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
- Signalling Type : steady
- Operating Torque : 0.14 N.m NO changing electrical state
- [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Supply Voltage Limits : 100-132 V AC
- Mechanical Durability : 1000000 cycles
- Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Width : 30 mm
- Depth : 68 mm
- Tightening Torque : 0.8-1.2 N.m IEC 60947-1
- Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Specifications
- Range Of Product : Harmony XB4
- Light Source : universal LED
- Mounting Diameter : 22 mm
- Type Of Operator : stay put
- Product Or Component Type : illuminated selector switch
- Shape Of Signaling Unit Head : round
- Fixing Collar Material : zamak
- Head Type : standard
- Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Type And Composition : 1 NO + 1 NC
- Sale Per Indivisible Quantity : 1
- Bezel Material : chromium plated metal
- Contact Operation : slow-break
- Operator Profile : green standard handle
- Operator Position Information : 2 positions 90°
- Device Short Name : XB4
- [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
- Bulb Base : integral LED
