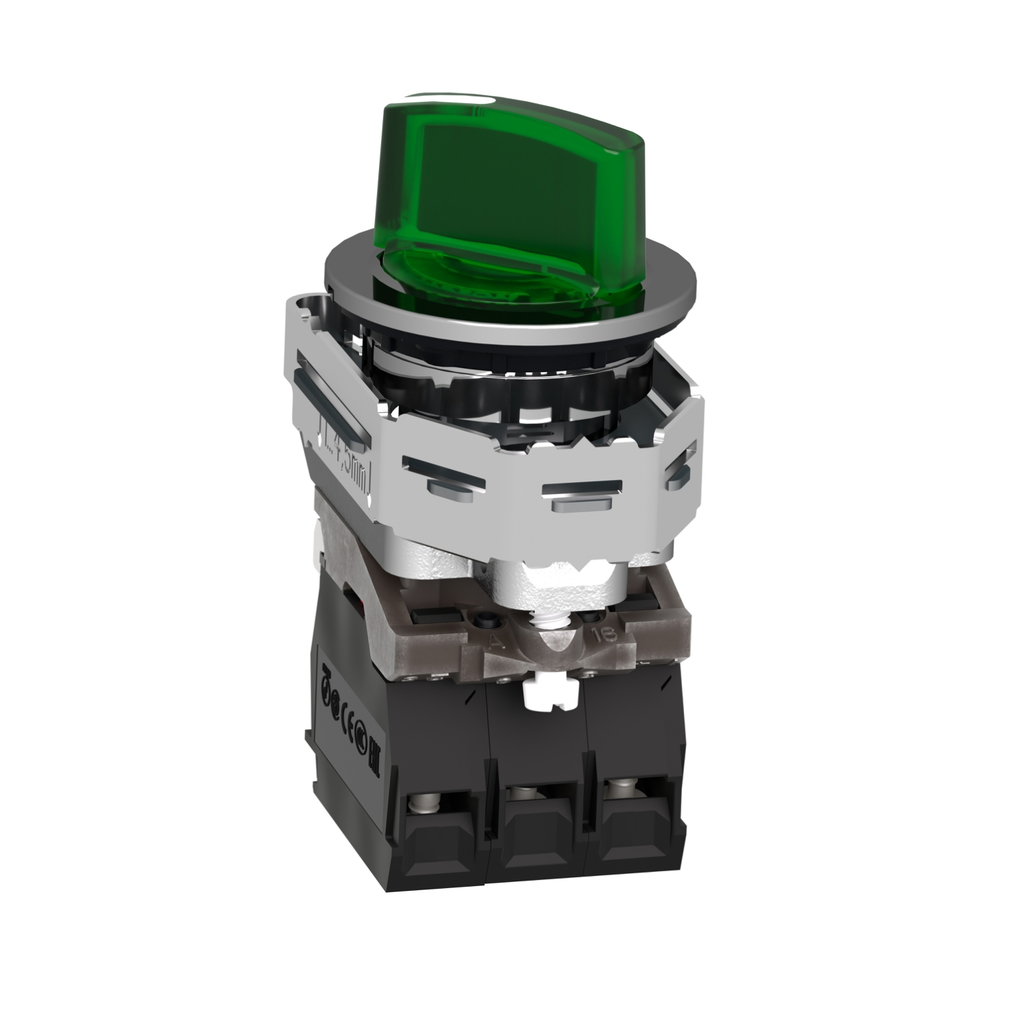

This flush mounted illuminated selector switch is a part of the Harmony XB4 metallic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. The source of light is a universal LED. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this selector switch addresses the market demands for ergonomic and aesthetics. It has a green standard handle with 2 positions 90 degree stay put. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The shape of the head is round. The bezel is chromium plated and the fixing collar is zamak. The weight of this selector switch is 151 grams, height is 53 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 12, 13, 4, and 4X, IK06, protection against solid objects, dust, water, and high impact is achieved. It is certified with EN/IEC, CE marking, UL, CSA, CCC, EAC, JIS, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this selector switch. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
- Environment
- Product Certifications : UL Listed || CSA || CCC || EAC
- Ik Degree Of Protection : IK04 conforming to IEC 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3
- Standards : CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Vibration Resistance : 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ambient Air Temperature For Storage : -40-70 °C
- Resistance To Electrostatic Discharge : 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Electrical Shock Protection Class : class I IEC 60536
- Protective Treatment : TH
- Resistance To Fast Transients : 2 kV IEC 61000-4-4
- Electromagnetic Emission : class B IEC 55011
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1808008EN
- Sustainable Offer Status : Green Premium product
- Reach Regulation : Reference contains Substances of Very High Concern above the threshold
- California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1808008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Important Information
- Important Message : Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Complementary
- Contacts Usage : standard contacts
- Height : 53 mm
- Terminals Description Iso N°1 : (13-14)NO || (21-22)NC
- Short-Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
- Fixing Mode : by screws 0.8 N.m 0.8...1.2 Nm)
- Contacts Material : silver alloy (Ag/Ni)
- Positive Opening : with NC contact IEC 60947-5-1 appendix K
- [Ith] Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
- Net Weight : 0.151 kg
- [Uimp] Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
- Current Consumption : 14 mA
- Device Presentation : complete product
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
- Service Life : 100000 h at rated voltage and 25 °C
- Surge Withstand : 1 kV IEC 61000-4-5
- [Ui] Rated Insulation Voltage : 600 V 3)IEC 60947-1
- Signalling Type : steady
- Operating Torque : 0.14 N.m NO changing electrical state
- [Ie] Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Supply Voltage Limits : 100-132 V AC
- Mechanical Durability : 1000000 cycles
- Electrical Reliability : λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Width : 36.6 mm
- Depth : 69.5 mm
- Tightening Torque : 0.8-1.2 N.m IEC 60947-1
- Shape Of Screw Head : cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Device Mounting : built-in 30.75 mm +/- 0.25 mm
- Specifications
- Range Of Product : Harmony XB4
- Light Source : universal LED
- Mounting Diameter : 30.5 mm
- Type Of Operator : stay put
- Product Or Component Type : illuminated selector switch
- Shape Of Signaling Unit Head : round
- Fixing Collar Material : zamak
- Head Type : built-in-flush
- Connections - Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Contacts Type And Composition : 1 NO + 1 NC
- Sale Per Indivisible Quantity : 1
- Bezel Material : chromium plated metal
- Contact Operation : slow-break
- Operator Profile : green standard handle
- Operator Position Information : 2 positions 90°
- Device Short Name : XB4F
- [Us] Rated Supply Voltage : 110...120 V AC 50/60 Hz
- Bulb Base : integral LED
