Bezel Material:
Chromium Plated Metal
-
Certifications:
BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
-
Contact Material:
Silver Alloy
-
Depth:
57 mm
-
Height:
47 mm
-
Net Weight:
0.097 kg
-
Standard:
CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
-
Storage Temperature:
-40-70 °C
-
Warranty Length:
18 mth
-
Width:
30 mm

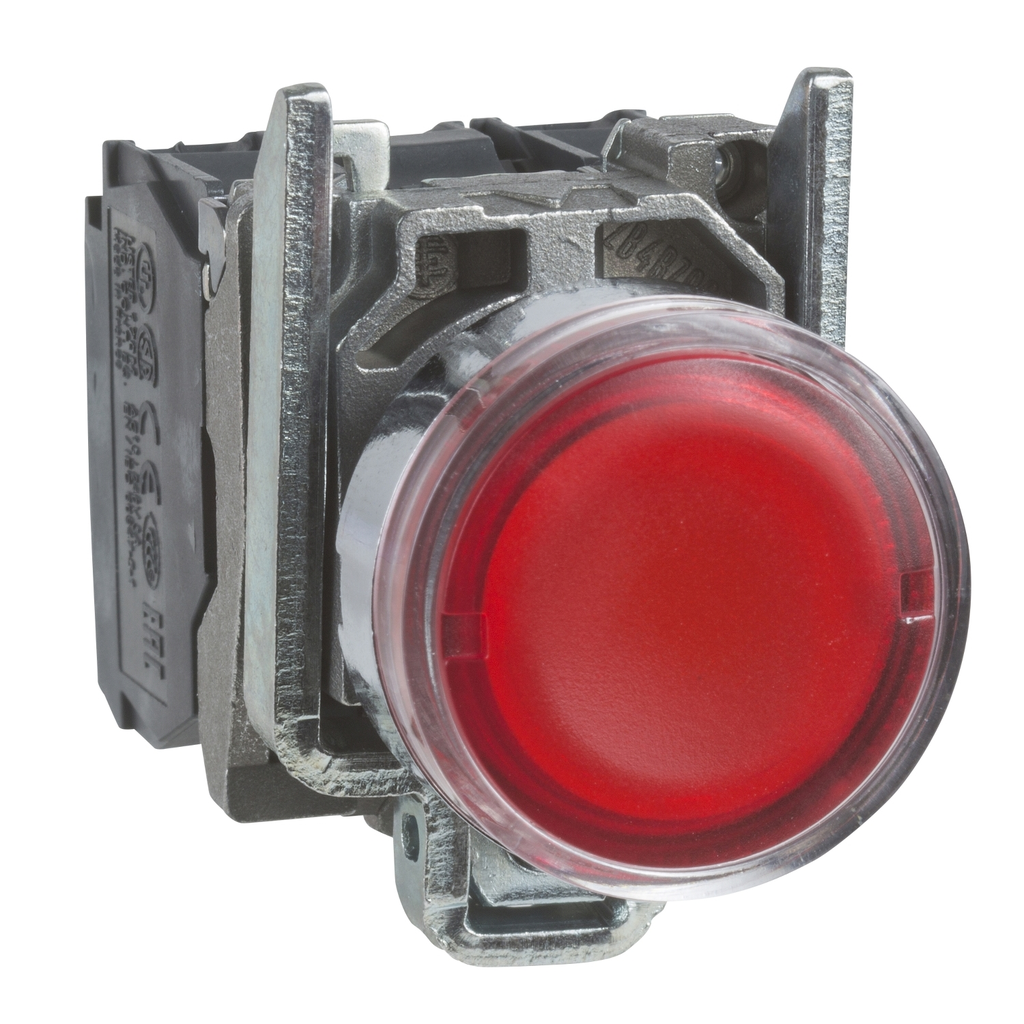

This Harmony XB4 plain lens illuminated modular red push button operates with a spring return / impulse mechanism, is supplied with 250V AC/DC. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
