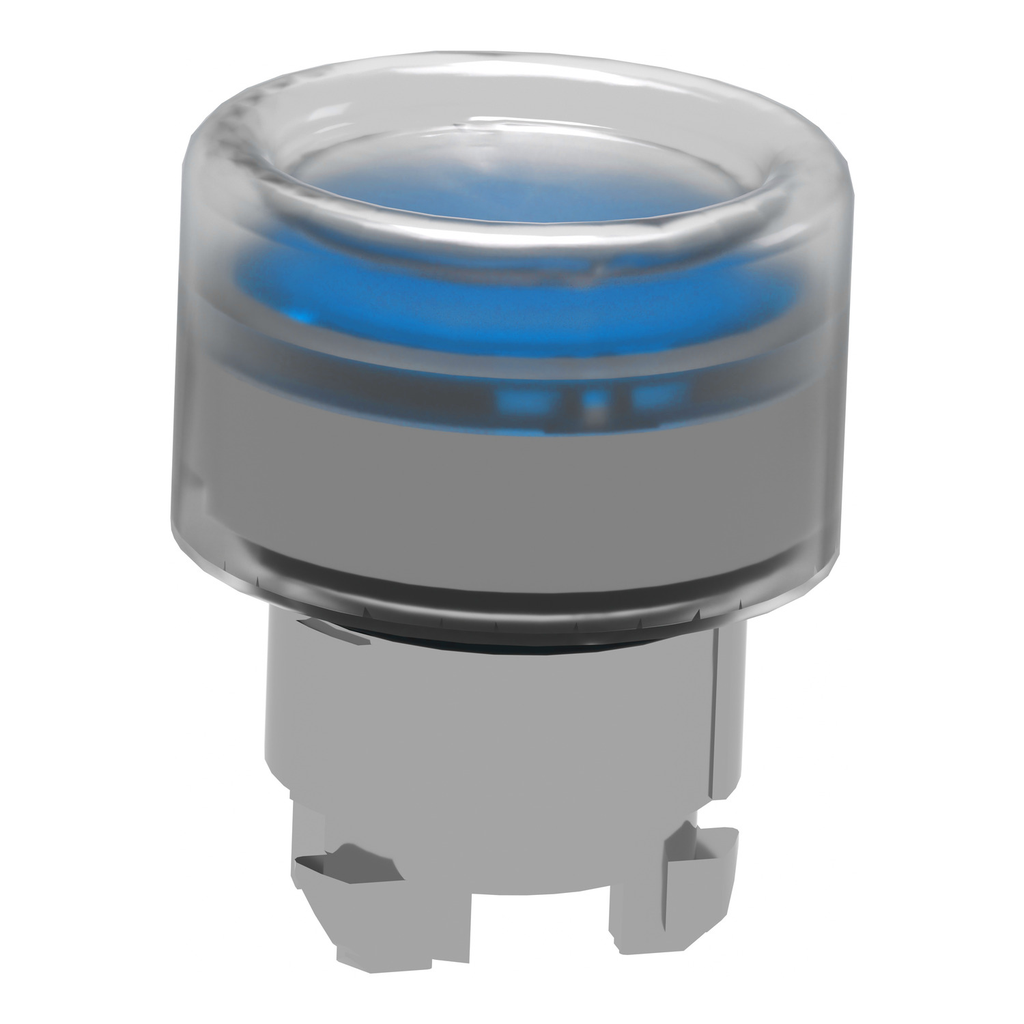

This Harmony XB4, plain lens illuminated flush blue button head with clear boot operates with a spring return / impulse mechanism. This button head with clear boot provides an ergonomic interface for controlling your machines and a simple solution to prevent dirt and contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to illuminated head and clear colors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.
- Environment
- Product Certifications : BV || GL || UL Listed || LROS (Lloyds register of shipping) || DNV || CSA
- Ik Degree Of Protection : IK06 conforming to EN 50102
- Ambient Air Temperature For Operation : -40-70 °C
- Standards : JIS C8201-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
- Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
- Ip Degree Of Protection : IP66 IEC 60529 || IP67
- Ambient Air Temperature For Storage : -40-70 °C
- Overvoltage Category : class I IEC 60536
- Nema Degree Of Protection : NEMA 13 || NEMA 4X
- Protective Treatment : TH
- Contractual warranty
- Offer Sustainability
- Rohs Exemption Information : Yes
- Mercury Free : Yes
- Environmental Disclosure : ENVPEP1808008EN
- Sustainable Offer Status : Green Premium product
- Toxic Heavy Metal Free : Yes
- Reach Regulation : Free of Substances of Very High Concern above the threshold
- Reach Free Of Svhc : Yes
- China Rohs Regulation : X
- Circularity Profile : ENVEOLI1808008EN
- Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
- Important Information
- Important Message : A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Complementary
- Electrical Composition Code : M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED
- Net Weight : 0.031 kg
- Cad Overall Height : 29 mm
- Device Presentation : basic sub-assemblies
- Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
- Mechanical Durability : 10000000 cycles
- Cad Overall Width : 29 mm
- Cad Overall Depth : 30 mm
- Specifications
- Operator Additional Information : clear boot
- Range Of Product : Harmony XB4
- Mounting Diameter : 22 mm
- Type Of Operator : spring return
- Product Or Component Type : head for illuminated push-button
- Shape Of Signaling Unit Head : round
- Head Type : standard
- Sale Per Indivisible Quantity : 1
- Bezel Material : chromium plated metal
- Operator Profile : blue flush, unmarked
- Product Compatibility : universal LED
- Device Short Name : ZB4
