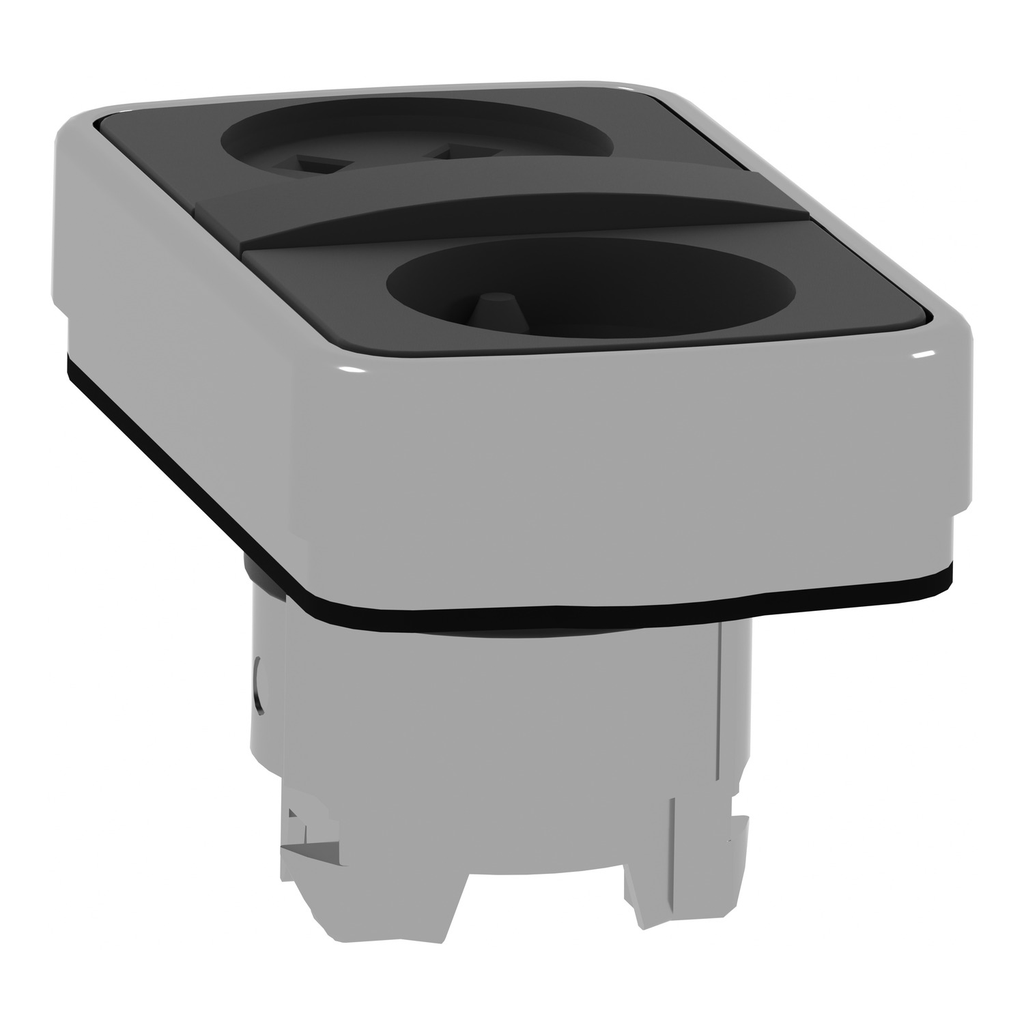

This Harmony XB4, double head without cap operates with a spring return / impulse mechanism. This double head is supplied without cap to allow users to customize control functions with desired caps for their machines operations. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment
• Product Certifications : CSA || LROS (Lloyds register of shipping) || BV || UL Listed || DNV
• Ik Degree Of Protection : IK03 conforming to IEC 50102
• Ambient Air Temperature For Operation : -40-70 °C
• Standards : IEC 60947-5-5 || UL 508 || JIS C8201-5-1 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-5-4 || IEC 60947-1 || JIS C8201-1
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Ip Degree Of Protection : IP67 IEC 60529 || IP69 IEC 60529
• Ambient Air Temperature For Storage : -40-70 °C
• Nema Degree Of Protection : NEMA 13 || NEMA 4X
• Electrical Shock Protection Class : class I conforming to IEC 60536
• Contractual warranty
• Warranty : 18 months
• Environmental data
• Rohs Exemption Information : Yes
• Packaging Made With Recycled Cardboard : Yes
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2308035EN
• Packaging Without Single Use Plastic : Yes
• Toxic Heavy Metal Free : Yes
• California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Reach Free Of Svhc : Yes
• Circularity Profile : ENVEOLI2308035EN
• Take-Back : No
• Carbon Footprint Of The Use Phase [B2, B3, B4, B6] : 0
• Carbon Footprint Of The Manufacturing Phase [A1 To A3] : 0.354400949
• Carbon Footprint Of The Distribution Phase [A4] : 0 kg CO2 eq.
• Carbon Footprint Of The Installation Phase [A5] : 0 kg CO2 eq.
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.4 kg CO2 eq.
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Carbon Footprint Of The End-Of-Life Phase [C1 To C4] : 0.0632443654
• Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 0.4342123369
• Complementary
• Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
• Colour Of Marking : black marking when white caps || white marking when green, red or black caps
• Net Weight : 0.056 kg
• Device Presentation : basic element
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Operator Profile : without cap
• Mechanical Durability : 1000000 cycles
• Specifications
• Country of Origin : France
• Weight : 0.056 kg
• Range Of Product : Harmony XB4
• Mounting Diameter : 22 mm
• Type Of Operator : spring return
• Operators Description : black pushes without cap
• Product Or Component Type : head for double-headed push-button
• Shape Of Signaling Unit Head : rectangular
• Operator Profile : 2 flush push-buttons
• Head Type : standard
• Sale Per Indivisible Quantity : 1
• Bezel Material : chromium plated metal
• Device Short Name : ZB4
