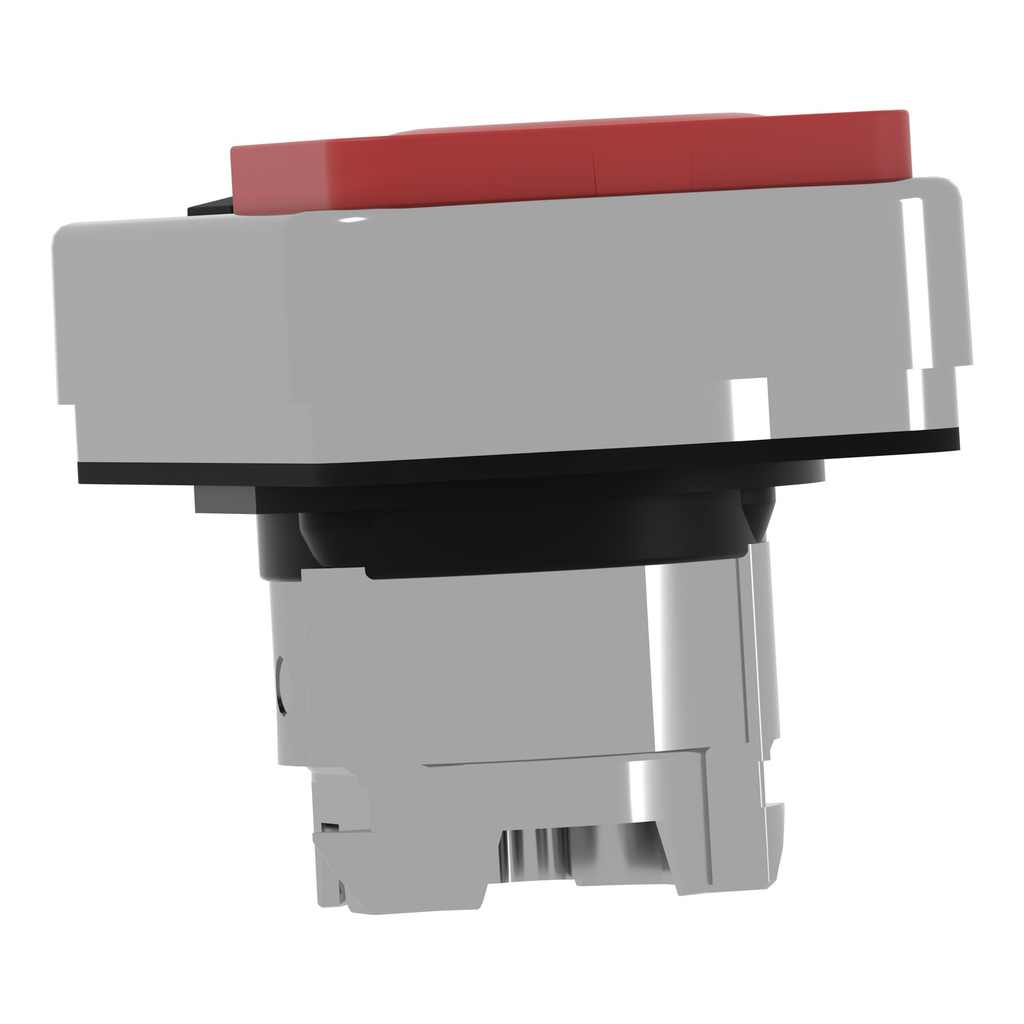

Head for double headed push button, Harmony XB4, metal, 22mm, 1 green flush marked I + 1 red projecting marked O

HARMONY XB4, DOUBLE-HEADED PUS

SQDZB4BL7341 ZB4BL7341 3389119043861
37.05 / EA
http://schema.org/OutOfStock
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, DNV, GL, LROS (Lloyds Register Of Shipping), UL Listed
  • Net Weight: 0.056 kg
  • Standard: CSA C22.2 No 14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Product Description
  • Specifications
This Harmony XB4, double head has 1 red and 1 green button, operates with a spring return mechanism. It is marked with "I" and "O" symbols. This double-head button provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear colors and by touch due to flush and projecting elements, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. it is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
  • Environment
    • Product Certifications : GL || CSA || DNV || UL Listed || LROS (Lloyds register of shipping) || BV
    • Ik Degree Of Protection : IK03 conforming to IEC 50102
    • Ambient Air Temperature For Operation : -40-70 °C
    • Standards : IEC 60947-5-4 || IEC 60947-1 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-5-5 || JIS C8201-1
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Ip Degree Of Protection : IP69 IEC 60529 || IP66 IEC 60529 || IP69K
    • Ambient Air Temperature For Storage : -40-70 °C
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Electrical Shock Protection Class : class I IEC 60536
  • Contractual warranty
    • Warranty : 18 months
  • Offer Sustainability
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1808008EN
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • China Rohs Regulation : X
    • Circularity Profile : ENVEOLI1808008EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Complementary
    • Electrical Composition Code : C3 6 single front mounting || C4 6 single and double front mounting || C14 2 single front mounting
    • Colour Of Marking : white marking when green, red or black caps || black marking when white caps
    • Net Weight : 0.056 kg
    • Device Presentation : basic element
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Operator Profile : green flush, I white) || red projecting, O white)
    • Mechanical Durability : 1000000 cycles
  • Specifications
    • Range Of Product : Harmony XB4
    • Mounting Diameter : 22 mm
    • Type Of Operator : spring return
    • Operators Description : green ''I'' - red ''O''
    • Product Or Component Type : head for double-headed push-button
    • Shape Of Signaling Unit Head : rectangular
    • Operator Profile : 1 flush - 1 projecting push-buttons
    • Head Type : standard
    • Sale Per Indivisible Quantity : 1
    • Bezel Material : chromium plated metal
    • Device Short Name : ZB4
