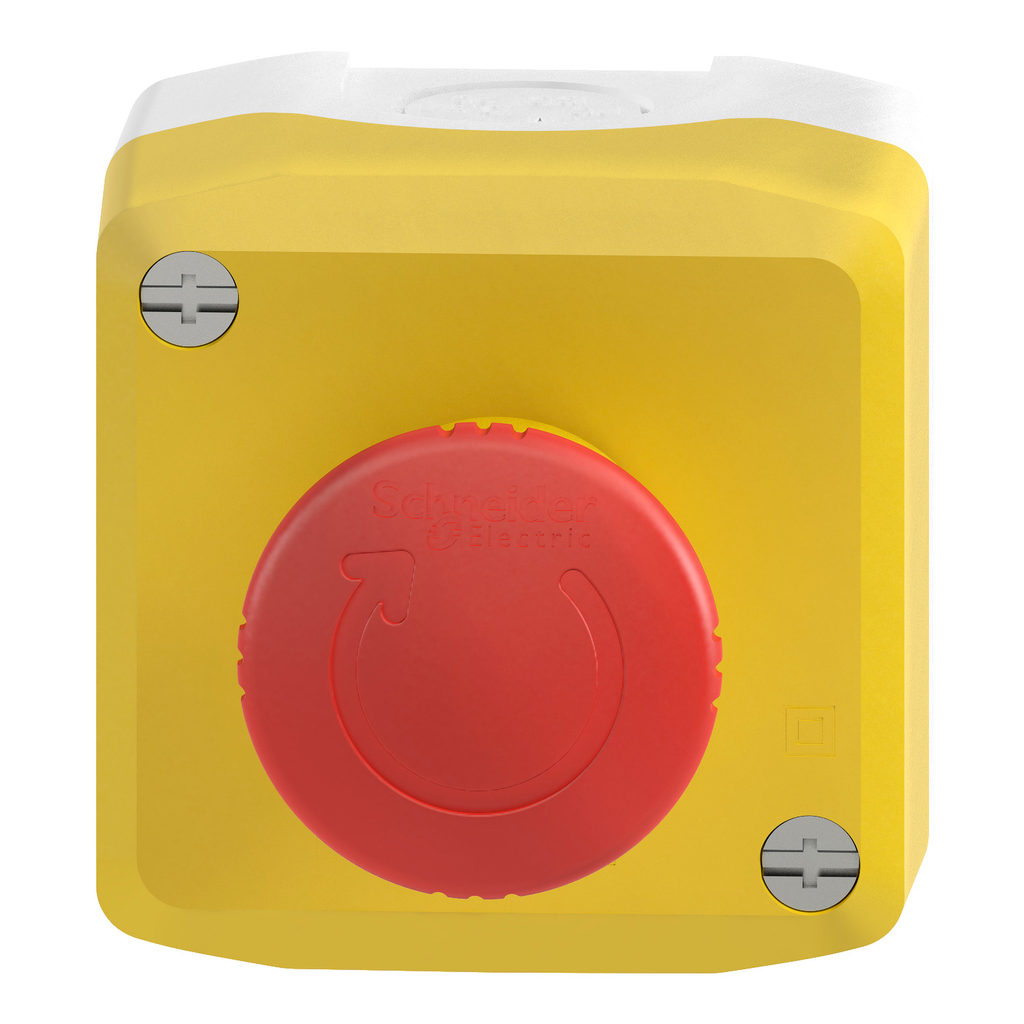

Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC

PUSH BUTTON ENCLOSURE 600VAC 1

SQDXALK178F XALK178F 3389110113648
239.01 / EA
http://schema.org/OutOfStock
Mayer-DDS-Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC-1
  • Cable Entry: 0-14 mm, 20 0-12 mm
  • Country of Origin: USA
  • Material: Polycarbonate
  • Operating Force: 44 N
  • Warranty Length: 18 mth
This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, without permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Specifications
This Harmony XALK yellow (RAL1021) control station is ideal for a clearly visible emergency shutdown of any machine. This yellow control station enables machine builders to easily add control and signalling functionality on their machines, without permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It offers emergency stop and emergency switching off functions. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments.
  • Assets
    • Cad : https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178.stp, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-back.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-bottom.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-front.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-isometric.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-left.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-right.DXF, https://download.schneider-electric.com/files?p_Doc_Ref=XALK178_NEW_2024&p_File_name=XALK178_2D-top.DXF
  • Physical Attributes
    • Color Of Cover : yellow, yellow RAL 1021)
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : yellow
  • Conformance Attributes
    • Standards : IEC 60204-1, IEC 60947-5-1, IEC 60364-5-53, ISO 13850, CSA C22.2 No 14, UL 508, IEC 60947-5-5, IEC 60947-5-4, IEC 60947-1, UL 60947-5-1, UL 60947-5-5, UL 60947-1
  • Complementary Attributes
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Ui Rated Insulation Voltage : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage : 6 kV IEC 60947-1
  • Important Information Attributes
    • Html Descr : Harmony XALK Complete Control Station
      • Color of Cover: Yellow RAL 1021
      • Color of Base: Light Grey RAL 7035
      • Operator Profile: 1 Mushroom Head Pushbutton
      • Operators Description: Red Unmarked 2 NC
      • Reset: 40mm Turn to Release
      • Degree of protection: NEMA 13/4X
      , Harmony XALK Complete Control Station
      • Color of Cover: Yellow RAL 1021
      • Color of Base: Light Grey RAL 7035
      • Operator Profile: 1 Mushroom Head Pushbutton
      • Operators Description: Red Unmarked 2 NC
      • Reset: 40mm Turn to Release
      • Degree of protection: NEMA 13/4X
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    • Control Station Application : emergency switching off function, emergency stop function
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    • Operating Travel : 1.5 mm NC changing electrical state), 4.3 mm total travel)
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Color Of Cover : yellow, yellow RAL 1021)
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.025030893, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.0366325426, 0 kg CO2 eq.
    • Carbon Footprint Of The Installation Phase A5 : 0 kg CO2 eq., 0.0011702419
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2626794819
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.1 kg CO2 eq., 0.1218928
    • Medium Desc : Complete control station, Harmony XALD, XALK, plastic, yellow lid, 1 red mushroom push button 40mm, turn to release, 2NC
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Global Commercial Status : Commercialised
    • Return Indicator : Y
    • Stocking Flag : N
    • Manufacturer : Schneider Electric
    • Legacy Weee Scope : In
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant
    • Rohs Eur Full Compliance Status : Compliant
    • China Rohs In Scope : Yes
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Product Kit Identifier : N
    • Compatibility Code : XALK
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Composition : 1 mushroom head Ø 40 mm push-button, red 2 NC unmarked
    • Dc Control Voltage : 125-600 V
    • Device Short Name : XALK
    • Housing Material : plastic
    • Material : polycarbonate
    • Mechanical Durability : 300000 cycles
    • Operating Force : 44 N
    • Operator Profile : 1 mushroom head push-button
    • Operators Description : red unmarked 2 NC
    • Overvoltage Category : class II conforming to IEC 60536
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALK
    • Reset : turn to release
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Software Version : EIME v5.8.1
    • Sustainable Packaging : No
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
    • Vibration Resistance : 5 gn (f= 12-500 Hz) conforming to IEC 60068-2-6
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ac Control Voltage 50 Hz : 120-600 V
    • Ac Control Voltage 60 Hz : 120-600 V
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : yellow
    • Ith Conventional Free Air Thermal Current : 10 A IEC 60947-5-1
    • Emergency Power Off Epo : no
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2016-11
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
  • Environment Attributes Main
    • Ambient Air Temperature For Operation : -40-70 °C, -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C, -40-70 °C
    • Ip Degree Of Protection : IP66 IEC 60529, IP67, IP69, IP69K, IP66/IP67/IP69/IP69K
    • Nema Degree Of Protection : NEMA 13, NEMA 4X, NEMA 4X/13
    • Take Back : Nej
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 1.4474059594
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALK
  • ETIM
    • ETIM 8 : EC000225
    • ETIM 9 : EC000225
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
