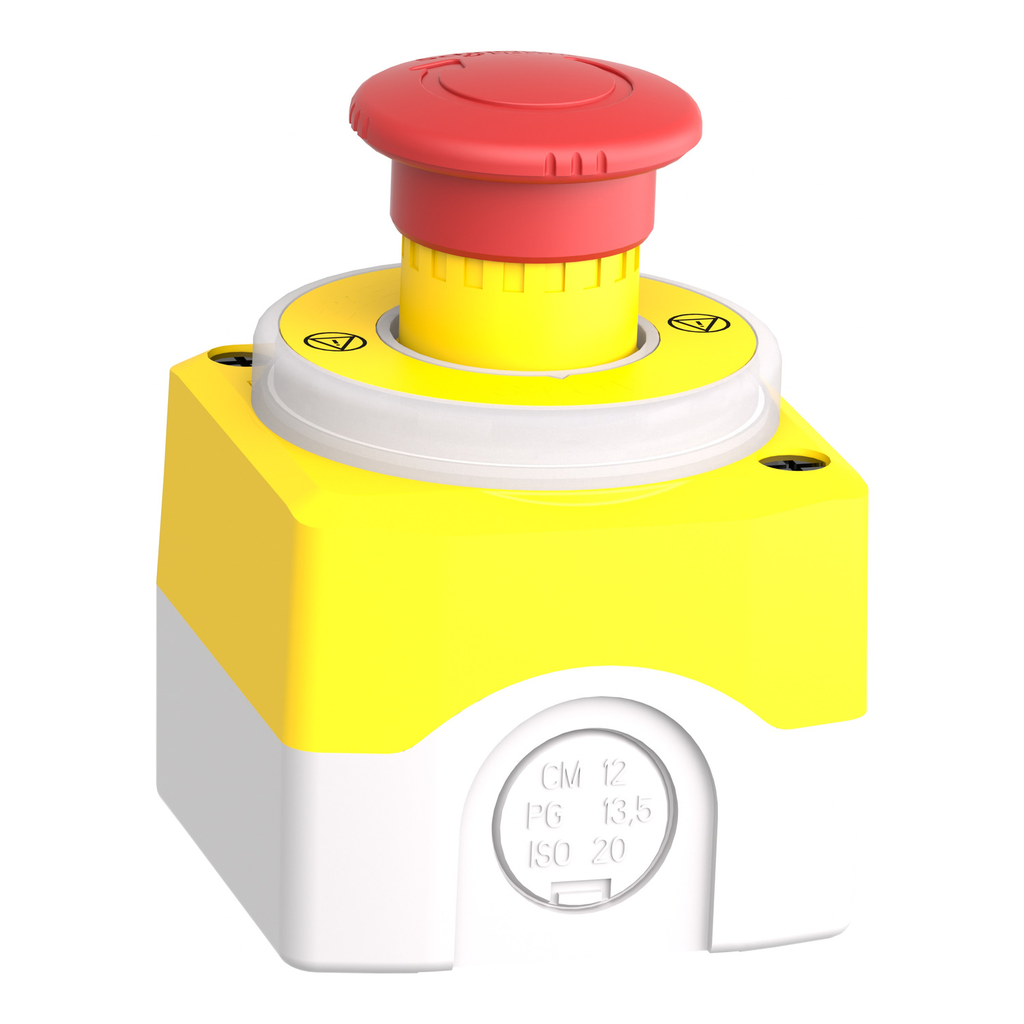

Control station, Harmony XALD, plastic, yellow lid, 1 emergency stop 40mm, turn to release, illuminated ring white red fixed, 1NO 1NC, 24V AC DC

ill. ring with e. stop d40 ttr

SQDXALK178W3B140E XALK178W3B140E 3606489745714
169.80 / EA
http://schema.org/OutOfStock
Mayer-DDS-Control station, Harmony XALD, plastic, yellow lid, 1 emergency stop 40mm, turn to release, illuminated ring white red fixed, 1NO 1NC, 24V AC DC-1
  • Cable Entry: 0-14 mm, 20 0-12 mm
  • Material: Polycarbonate
  • Operating Force: 44 N
  • Warranty Length: 18 mth
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
QTY
  • Product Description
  • Features
  • Specifications
This control station with mushroom head push-button for emergency stop function is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy. Its schematic is clearly distinguishable thanks to clear colors. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments.
  • Features
    • Full compatibility with the Ø 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range
    • Complete, ready-to-install stations with 1 to 3 buttons for the most common functions
    • Modular system and simple to cable universal range
    • Possibility to add up to 3 NO or NC contact blocks per operating head
    • Polycarbonate pre-drilled control stations
    • Large set of accessories to customize your panels
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Physical Attributes
    • Color Of Cover : yellow, yellow RAL 1021)
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Housing Color : yellow
  • Conformance Attributes
    • Product Certifications : UL Listed, CSA
    • Standards : CSA C22.2 No 14, IEC 60947-5-1, IEC 60947-5-4, UL 508, IEC 60947-1, JIS C 4520
  • Important Information Attributes
    • Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
    • Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    • Market Segmentation Id : COMMERCIAL, INDUSTRIAL
    • Market Segmentation : Commercial, Industrial
    • Cable Entry : 1 knock-out for cable entry 0-14 mm, 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
    • Color Of Cover : yellow, yellow RAL 1021)
    • Control Station Application : emergency switching off function, emergency stop function
    • Electrical Durability : 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
    • Electrical Reliability : λ < 10exp(-6) 5 V, 1 mA IEC 60947-5-4, λ < 10exp(-8) 17 V, 5 mA IEC 60947-5-4
    • Operating Travel : 1.5 mm NC changing electrical state), 4.3 mm total travel)
    • Resistance To Electrostatic Discharge : 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
    • Shape Of Screw Head : cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
    • Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
    • Ie Rated Operational Current2 : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Carbon Footprint Of The Distribution Phase A4 : 0.0241277164, 0 kg CO2 eq.
    • Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0353107498
    • Carbon Footprint Of The Installation Phase A5 : 0.0011280166, 0 kg CO2 eq.
    • Carbon Footprint Of The Manufacturing Phase A1 To A3 : 1 kg CO2 eq., 1.2171188821
    • Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.4 kg CO2 eq., 0.3742624
    • Connections Terminals : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Connections Terminals3 : screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
    • Ie Rated Operational Current5 : 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
    • Local Data Status : Publishable
    • Local Publishable Date : 2026-01-12
    • Legacy WEEE Scope : In
    • Scope Perimeter : At least in Europe
    • EOLI Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2506022EN
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • ROHS EUR In Scope : No
    • ROHS EUR Status : Compliant with Exemptions
    • ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
    • China ROHS In Scope : Yes
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Color Of Base Of Enclosure : light grey RAL 7035)
    • Compatibility Code : XALK
    • Contact Operation : slow-break
    • Contacts Material : silver alloy (Ag/Ni)
    • Control Station Composition : 1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC
    • DC Control Voltaage : 24-24 V
    • Device Short Name : XALK
    • Electrical Insulation Class : class II IEC 61140
    • Housing Color : yellow
    • Housing Material : plastic
    • Material : polycarbonate
    • Mechanical Durability : 300000 cycles
    • Operating Force : 44 N
    • Operator Profile : 1 mushroom head push-button
    • Operators Description : red unmarked 1 NO + 1 NC
    • Package Weight Lbs : 190.000 g
    • Positive Opening : with IEC 60947-5-1 appendix K
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Destination : for XB5 Ø 22 mm control and signalling units
    • Product Or Component Type : complete control station
    • Protective Treatment : TH
    • Range Of Product : Harmony XALK
    • Reset : turn to release
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Returnability : Yes
    • Short Circuit Protection : 10 A cartridge fuse gG IEC 60947-5-1
    • Sustainable Packaging : Yes
    • Tightening Torque : 0.8-1.2 N.m IEC 60947-1
    • Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
    • Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Ith Conventional Free Air Thermal Current2 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage2 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage2 : 6 kV IEC 60947-1
    • Ac Control Voltage 50 Hz : 24-24 V
    • Ac Control Voltage 60 Hz : 24-24 V
    • Medium Desc : Control station, Harmony XALD, plastic, yellow lid, 1 emergency stop 40mm, turn to release, illuminated ring white red fixed, 1NO 1NC, 24V AC DC
    • Stocking Flag : Y
    • Product Kit Identifier : N
    • Emergency Power Off Epo3 : no
    • Pep Code : ENVPEP2506022EN
    • Database Version : 2016-11
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
    • Data Source : extrapolated product
    • Functional Unit Description : To provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    • Functional Unit Unit : unité (unit)
    • Energy Model Manufacturing A1 A3 2 : Energy model used: France
    • Energy Model Installation A5 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model Use B6 2 : Electricity mix; AC; < 1kV; EU-27
    • Energy Model End Of Life C1 C4 2 : Electricity mix; AC; < 1kV; EU-27
    • Global Commercial Status : Commercialised
    • Ith Conventional Free Air Thermal Current5 : 10 A IEC 60947-5-1
    • Ui Rated Insulation Voltage5 : 600 V 3)IEC 60947-1
    • Uimp Rated Impulse Withstand Voltage5 : 6 kV IEC 60947-1
  • Environment Attributes Main
    • Take Back : No, Nej
    • EU ROHS Directive : Compliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
    • IP Degree Of Protection : IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, IP66/IP67/IP69/IP69K
    • ROHS Exemption Information : Yes
    • Recycled Metal Content At Cr Level : 0 %
    • China ROHS Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 1.651947765
    • Ambient Air Temperature For Operation : -40-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Circularity Profile : ENVEOLI2506022EN
    • Environmental Disclosure : ENVPEP2506022EN
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Pep Code : ENVPEP2506022EN
    • Pep Verification Date : 2018-09-01
    • Pcr Version : PCR-ed3-EN-2015 04 02
    • Psr Version : PSR-0005-ed2-EN-2016 03 29
    • Type Of Verification For The Pep : Independent internal review
  • General Attributes
    • Product Or Component Type : complete control station
    • Range Of Product : Harmony XALK
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
