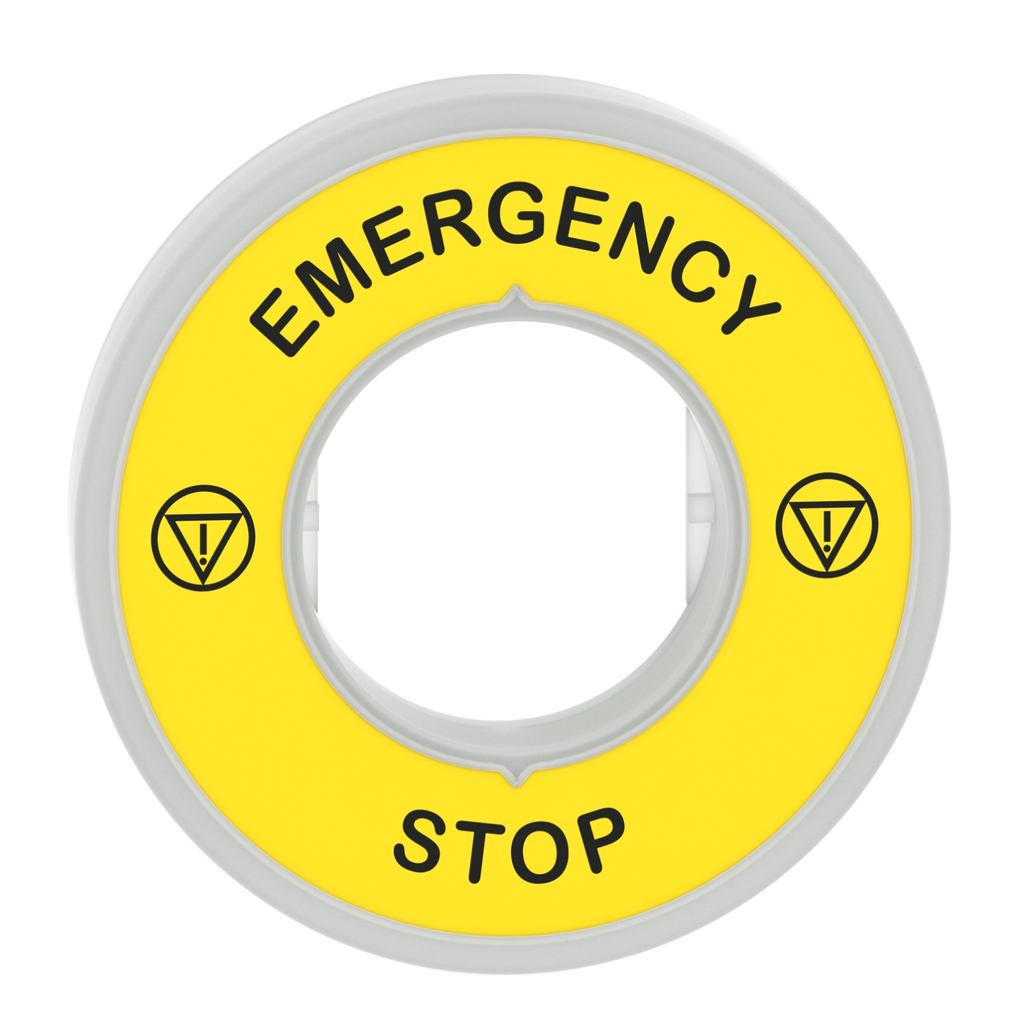

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

• US Rated Supply Voltage
• 24 V AC/DC 50/60 Hz
• Supply Voltage Limits
• 19.2-30 V DC
• 21.6-26.4 V AC
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Type 13 UL 50E
• Type 12 UL 50E
• Type 4 UL 50E
• Type 4X UL 50E
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.0021595212458877214
• 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0 kg CO2 eq.
• 0.0440213187816692
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 0.4 kg CO2 eq.
• 0.37402731232846614
• UI Rated Insulation Voltage
• 24 V 3)IEC 60947-1
• Marking
• black EMERGENCY STOP yellow
• Accessories
• ZB5AZ905
• ZBYLEG503001
• Service Life
• 100000 h at rated voltage and 25 °C
• Electrical Insulation Class
• class II IEC 61140
• Vibration Resistance
• 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• 25 mm peak to peak (f= 2-10 Hz) conforming to IEC
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 13 kg CO2 eq.
• 13.022513636697278
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Surge Withstand
• 1 kV IEC 61000-4-5
• Electromagnetic Emission
• class B IEC 55011
• Compatibility Code
• XB4
• XB5
• Resistance To Electrostatic Discharge
• 4 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• 8 kV in
• Carbon Footprint Of The Distribution Phase A4
• 0.02685441149298871
• 0 kg CO2 eq.
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave ac

• Assets
• CAD : https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0002859_3D-CAD
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-10-02
• Manufacturing Carbon Footprint : 0.37402731232846614
• Distribution Carbon Footprint : 0.02685441149298871
• Installation Carbon Footprint : 0.0021595212458877214
• Use Carbon Footprint : 13.022513636697278
• End Of Life Carbon Footprint : 0.0440213187816692
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2506032EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : integral LED
• Label Dimensions : Ø 60 mm
• Overvoltage Category : class II
• Package Weight Lbs : 21.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : illuminated marked legend ring
• Range Of Product : Harmony
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 13 kg CO2 eq.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 13.469576200546289
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2506032EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Product Weight In G : 21
• Functional Unit Description : Illuminated ring uses to indicate clear status of emergency stop and pushbutton applications to improve operational efficiency during its 10 years of lifetime with a maximum power consumption of 0.432 W at 71% usage during 10 years lifetime.
• Functional Unit Quantity : 1
• Functional Unit Unit : unit
• Reference Lifetime In Y : 10
• Energy Consumption On Product Lifetime In Kwh : 26.868672
• Energy Model Manufacturing A1 A3 : Electricity Mix; High voltage; 2020; Indonesia, ID
• Energy Model Installation A5 : No energy used
• Energy Model Use B6 : Electricity Mix; Low voltage; 2020; Global, GLO
• Energy Model End Of Life C1 C4 : Global, European and French datasets are used.
• Recyclability Potential In : 3
• Acidification Ap Mole Of H Equiv Total Life Cycle : 0.06849476644026989
• Acidification Ap Mole Of H Equiv Manufacturing A1 A3 : 0.0015122001947777582
• Acidification Ap Mole Of H Equiv Distribution A4 : 0.00011006362540941663
• Acidification Ap Mole Of H Equiv Installation A5 : 0.00000264992495836775
• Acidification Ap Mole Of H Equiv Maintenance B2 : 0
• Acidification Ap Mole Of H Equiv Repair B3 : 0
• Acidification Ap Mole Of H Equiv Replacement B4 : 0
• Acidification Ap Mole Of H Equiv Operational Energy Use B6 : 0.06683427771398755
• Acidification Ap Mole Of H Equiv End Of Life C1 C4 : 0.00003557498113679765
• Acidification Ap Mole Of H Equiv Benefits Loads Beyond System Boundaries D : -0.00009367106688662997
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Associated Packaging Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Biogenic Carbon Content Of The Product Kg Of C Total Life Cycle : 0
• Biogenic Carbon Content Of The Product Kg Of C Manufacturing A1 A3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Distribution A4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Installation A5 : 0
• Biogenic Carbon Content Of The Product Kg Of C Maintenance B2 : 0
• Biogenic Carbon Content Of The Product Kg Of C Repair B3 : 0
• Biogenic Carbon Content Of The Product Kg Of C Replacement B4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Operational Energy Use B6 : 0
• Biogenic Carbon Content Of The Product Kg Of C End Of Life C1 C4 : 0
• Biogenic Carbon Content Of The Product Kg Of C Benefits Loads Beyond System Boundaries D : 0
• Climate Change Biogenics Kg Co2 Eq Total Life Cycle : 0.1326946184878732
• Climate Change Biogenics Kg Co2 Eq Manufacturing A1 A3 : -0.004894595092698369
• Climate Change Biogenics Kg Co2 Eq Distribution A4 : 0
• Climate Change Biogenics Kg Co2 Eq Installation A5 : -0.0000000981486074772
• Climate Change Biogenics Kg Co2 Eq Maintenance B2 : 0
• Climate Change Biogenics Kg Co2 Eq Repair B3 : 0
• Climate Change Biogenics Kg Co2 Eq Replacement B4 : 0
• Climate Change Biogenics Kg Co2 Eq Operational Energy Use B6 : 0.13758590628936687
• Climate Change Biogenics Kg Co2 Eq End Of Life C1 C4 : 0.00000340543981216684
• Climate Change Biogenics Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00011263106198276426
• Climate Change Fossil Fuels Kg Co2 Eq Total Life Cycle : 13.33686779331889
• Climate Change Fossil Fuels Kg Co2 Eq Manufacturing A1 A3 : 0.3789081189707831
• Climate Change Fossil Fuels Kg Co2 Eq Distribution A4 : 0.02685441149298871
• Climate Change Fossil Fuels Kg Co2 Eq Installation A5 : 0.002159619394495199
• Climate Change Fossil Fuels Kg Co2 Eq Maintenance B2 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Repair B3 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Replacement B4 : 0
• Climate Change Fossil Fuels Kg Co2 Eq Operational Energy Use B6 : 12.884927730407908
• Climate Change Fossil Fuels Kg Co2 Eq End Of Life C1 C4 : 0.044017913052714186
• Climate Change Fossil Fuels Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.0011871784365225057
• Climate Change Total Kg Co2 Eq Total Life Cycle : 13.469576200546289
• Climate Change Total Kg Co2 Eq Manufacturing A1 A3 : 0.37402731232846614
• Climate Change Total Kg Co2 Eq Distribution A4 : 0.02685441149298871
• Climate Change Total Kg Co2 Eq Installation A5 : 0.0021595212458877214
• Climate Change Total Kg Co2 Eq Maintenance B2 : 0
• Climate Change Total Kg Co2 Eq Repair B3 : 0
• Climate Change Total Kg Co2 Eq Replacement B4 : 0
• Climate Change Total Kg Co2 Eq Operational Energy Use B6 : 13.022513636697278
• Climate Change Total Kg Co2 Eq End Of Life C1 C4 : 0.0440213187816692
• Climate Change Total Kg Co2 Eq Benefits Loads Beyond System Boundaries D : -0.00129980949850527
• Components For Re Use Kg Total Life Cycle : 0
• Components For Re Use Kg Manufacturing A1 A3 : 0
• Components For Re Use Kg Distribution A4 : 0
• Components For Re Use Kg Installation A5 : 0
• Components For Re Use Kg Maintenance B2 : 0
• Components For Re Use Kg Repair B3 : 0
• Components For Re Use Kg Replacement B4 : 0
• Components For Re Use Kg Operational Energy Use B6 : 0
• Components For Re Use Kg End Of Life C1 C4 : 0
• Components For Re Use Kg Benefits Loads Beyond System Boundaries D : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Total Life Cycle : 0.00001769206559601651
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Manufacturing A1 A3 : 0.00001493522544738847
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Distribution A4 : 0.00000000000280171901
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Installation A5 : 0.00000000000920333687
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Maintenance B2 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Repair B3 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Replacement B4 : 0
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Operational Energy Use B6 : 0.00000275691952114555
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb End Of Life C1 C4 : -0.0000000000913775734
• Depletion Of Abiotic Resources Elements Kg Equivalent Sb Benefits Loads Beyond System Boundaries D : -0.00000091532723533339
• Depletion Of Abiotic Resources Fossil Fuels Mj Total Life Cycle : 281.2896434518519
• Depletion Of Abiotic Resources Fossil Fuels Mj Manufacturing A1 A3 : 6.2474949494430465
• Depletion Of Abiotic Resources Fossil Fuels Mj Distribution A4 : 0.33825434053307546
• Depletion Of Abiotic Resources Fossil Fuels Mj Installation A5 : 0.0024844569562103742
• Depletion Of Abiotic Resources Fossil Fuels Mj Maintenance B2 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Repair B3 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Replacement B4 : 0
• Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 : 274.62229966670884
• Depletion Of Abiotic Resources Fossil Fuels Mj End Of Life C1 C4 : 0.07911003821068696
• Depletion Of Abiotic Resources Fossil Fuels Mj Benefits Loads Beyond System Boundaries D : -0.021263316626276237
• Ecotoxicity Fresh Water Ctue Total Life Cycle : 21.71724548284926
• Ecotoxicity Fresh Water Ctue Manufacturing A1 A3 : 1.7517859261016133
• Ecotoxicity Fresh Water Ctue Distribution A4 : 0.2185135758632354
• Ecotoxicity Fresh Water Ctue Installation A5 : 0.016117556898191762
• Ecotoxicity Fresh Water Ctue Maintenance B2 : 0
• Ecotoxicity Fresh Water Ctue Repair B3 : 0
• Ecotoxicity Fresh Water Ctue Replacement B4 : 0
• Ecotoxicity Fresh Water Ctue Operational Energy Use B6 : 19.403294258108588
• Ecotoxicity Fresh Water Ctue End Of Life C1 C4 : 0.32753416587763307
• Ecotoxicity Fresh Water Ctue Benefits Loads Beyond System Boundaries D : -0.021693696203297884
• Emission Of Fine Particles Incidence Of Diseases Total Life Cycle : 0.00000047595990538004
• Emission Of Fine Particles Incidence Of Diseases Manufacturing A1 A3 : 0.00000001081268486718
• Emission Of Fine Particles Incidence Of Diseases Distribution A4 : 0.00000000031481676811
• Emission Of Fine Particles Incidence Of Diseases Installation A5 : 0.0000000000115554323
• Emission Of Fine Particles Incidence Of Diseases Maintenance B2 : 0
• Emission Of Fine Particles Incidence Of Diseases Repair B3 : 0
• Emission Of Fine Particles Incidence Of Diseases Replacement B4 : 0
• Emission Of Fine Particles Incidence Of Diseases Operational Energy Use B6 : 0.00000046456473238832
• Emission Of Fine Particles Incidence Of Diseases End Of Life C1 C4 : 0.00000000025611592414
• Emission Of Fine Particles Incidence Of Diseases Benefits Loads Beyond System Boundaries D : -0.00000000056205331745
• Exported Energy Mj By Energy Vector Total Life Cycle : 0.00000038076488979384
• Exported Energy Mj By Energy Vector Manufacturing A1 A3 : 0.00000038076488979384
• Exported Energy Mj By Energy Vector Distribution A4 : 0
• Exported Energy Mj By Energy Vector Installation A5 : 0
• Exported Energy Mj By Energy Vector Maintenance B2 : 0
• Exported Energy Mj By Energy Vector Repair B3 : 0
• Exported Energy Mj By Energy Vector Replacement B4 : 0
• Exported Energy Mj By Energy Vector Operational Energy Use B6 : 0
• Exported Energy Mj By Energy Vector End Of Life C1 C4 : 0
• Exported Energy Mj By Energy Vector Benefits Loads Beyond System Boundaries D : 0
• Freshwater Eutrophication Kg P Eq Total Life Cycle : 0.00002238632729975424
• Freshwater Eutrophication Kg P Eq Manufacturing A1 A3 : 0.0000022314540837469
• Freshwater Eutrophication Kg P Eq Distribution A4 : 0.00000000316392206198
• Freshwater Eutrophication Kg P Eq Installation A5 : 0.00000000086806039517
• Freshwater Eutrophication Kg P Eq Maintenance B2 : 0
• Freshwater Eutrophication Kg P Eq Repair B3 : 0
• Freshwater Eutrophication Kg P Eq Replacement B4 : 0
• Freshwater Eutrophication Kg P Eq Operational Energy Use B6 : 0.00002009736368170535
• Freshwater Eutrophication Kg P Eq End Of Life C1 C4 : 0.00000005347755184484
• Freshwater Eutrophication Kg P Eq Benefits Loads Beyond System Boundaries D : -0.00000000168762017473
• Hazardous Waste Disposed Of Kg Total Life Cycle : 0.15942494525420647
• Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.15584063018655894
• Hazardous Waste Disposed Of Kg Distribution A4 : 0.0000282591999238904
• Hazardous Waste Disposed Of Kg Installation A5 : 0.00000114790547449889
• Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Hazardous Waste Disposed Of Kg Repair B3 : 0
• Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 0
• Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.003554907962249133
• Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.07078359720826315
• Human Toxicity Carcinogenic Effects Ctuh Total Life Cycle : 0.00000000393850526921
• Human Toxicity Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.0000000004573027528
• Human Toxicity Carcinogenic Effects Ctuh Distribution A4 : 0.00000000002667894699
• Human Toxicity Carcinogenic Effects Ctuh Installation A5 : 0.00000000003577899227
• Human Toxicity Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000000157323517015
• Human Toxicity Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.000000001845509407
• Human Toxicity Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000001253897199
• Human Toxicity Non Carcinogenic Effects Ctuh Total Life Cycle : 0.00000004735293828676
• Human Toxicity Non Carcinogenic Effects Ctuh Manufacturing A1 A3 : 0.00000000412469714448
• Human Toxicity Non Carcinogenic Effects Ctuh Distribution A4 : 0.00000000004157551311
• Human Toxicity Non Carcinogenic Effects Ctuh Installation A5 : 0.00000000001008184701
• Human Toxicity Non Carcinogenic Effects Ctuh Maintenance B2 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Repair B3 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Replacement B4 : 0
• Human Toxicity Non Carcinogenic Effects Ctuh Operational Energy Use B6 : 0.00000004294186545067
• Human Toxicity Non Carcinogenic Effects Ctuh End Of Life C1 C4 : 0.00000000023471833149
• Human Toxicity Non Carcinogenic Effects Ctuh Benefits Loads Beyond System Boundaries D : -0.00000000126471163655
• Impacts Related To Land Use Soil Quality Total Life Cycle : 0.28388228117027886
• Impacts Related To Land Use Soil Quality Manufacturing A1 A3 : 0.044864611444282505
• Impacts Related To Land Use Soil Quality Distribution A4 : 0
• Impacts Related To Land Use Soil Quality Installation A5 : 0
• Impacts Related To Land Use Soil Quality Maintenance B2 : 0
• Impacts Related To Land Use Soil Quality Repair B3 : 0
• Impacts Related To Land Use Soil Quality Replacement B4 : 0
• Impacts Related To Land Use Soil Quality Operational Energy Use B6 : 0.23900640278792729
• Impacts Related To Land Use Soil Quality End Of Life C1 C4 : 0.00001126693806907065
• Impacts Related To Land Use Soil Quality Benefits Loads Beyond System Boundaries D : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Total Life Cycle : 11.37471425286592
• Ionizing Radiation Human Health Kbq Of U235 Equiv Manufacturing A1 A3 : 0.3811750048808634
• Ionizing Radiation Human Health Kbq Of U235 Equiv Distribution A4 : 0.00003310089417542101
• Ionizing Radiation Human Health Kbq Of U235 Equiv Installation A5 : 0.00000341170641662257
• Ionizing Radiation Human Health Kbq Of U235 Equiv Maintenance B2 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Repair B3 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Replacement B4 : 0
• Ionizing Radiation Human Health Kbq Of U235 Equiv Operational Energy Use B6 : 10.993182427324598
• Ionizing Radiation Human Health Kbq Of U235 Equiv End Of Life C1 C4 : 0.0003203080598665371
• Ionizing Radiation Human Health Kbq Of U235 Equiv Benefits Loads Beyond System Boundaries D : -0.0016271403762123302
• Marine Aquatic Eutrophication Kg Of N Equiv Total Life Cycle : 0.00830716073315537
• Marine Aquatic Eutrophication Kg Of N Equiv Manufacturing A1 A3 : 0.0002437991642405695
• Marine Aquatic Eutrophication Kg Of N Equiv Distribution A4 : 0.00004857735157738836
• Marine Aquatic Eutrophication Kg Of N Equiv Installation A5 : 0.00000117361268551735
• Marine Aquatic Eutrophication Kg Of N Equiv Maintenance B2 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Repair B3 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Replacement B4 : 0
• Marine Aquatic Eutrophication Kg Of N Equiv Operational Energy Use B6 : 0.007999568665510232
• Marine Aquatic Eutrophication Kg Of N Equiv End Of Life C1 C4 : 0.00001404193914166315
• Marine Aquatic Eutrophication Kg Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00000139190153774923
• Materials For Energy Recovery Kg Total Life Cycle : 0
• Materials For Energy Recovery Kg Manufacturing A1 A3 : 0
• Materials For Energy Recovery Kg Distribution A4 : 0
• Materials For Energy Recovery Kg Installation A5 : 0
• Materials For Energy Recovery Kg Maintenance B2 : 0
• Materials For Energy Recovery Kg Repair B3 : 0
• Materials For Energy Recovery Kg Replacement B4 : 0
• Materials For Energy Recovery Kg Operational Energy Use B6 : 0
• Materials For Energy Recovery Kg End Of Life C1 C4 : 0
• Materials For Energy Recovery Kg Benefits Loads Beyond System Boundaries D : 0
• Materials For Recycling Kg Total Life Cycle : 0.0006428306843526155
• Materials For Recycling Kg Manufacturing A1 A3 : 0.00006638068435261548
• Materials For Recycling Kg Distribution A4 : 0
• Materials For Recycling Kg Installation A5 : 0
• Materials For Recycling Kg Maintenance B2 : 0
• Materials For Recycling Kg Repair B3 : 0
• Materials For Recycling Kg Replacement B4 : 0
• Materials For Recycling Kg Operational Energy Use B6 : 0
• Materials For Recycling Kg End Of Life C1 C4 : 0.00057645
• Materials For Recycling Kg Benefits Loads Beyond System Boundaries D : 0
• Net Use Of Fresh Water M3 Total Life Cycle : 0.02300148994882969
• Net Use Of Fresh Water M3 Manufacturing A1 A3 : 0.004347043916583038
• Net Use Of Fresh Water M3 Distribution A4 : 0.00003213694124089036
• Net Use Of Fresh Water M3 Installation A5 : 0.00001359387568500204
• Net Use Of Fresh Water M3 Maintenance B2 : 0
• Net Use Of Fresh Water M3 Repair B3 : 0
• Net Use Of Fresh Water M3 Replacement B4 : 0
• Net Use Of Fresh Water M3 Operational Energy Use B6 : 0.018535195433030158
• Net Use Of Fresh Water M3 End Of Life C1 C4 : 0.00007351978229060313
• Net Use Of Fresh Water M3 Benefits Loads Beyond System Boundaries D : -0.00010665110203584302
• Non Hazardous Waste Disposed Of Kg Total Life Cycle : 2.213317042140109
• Non Hazardous Waste Disposed Of Kg Manufacturing A1 A3 : 0.13623509127729386
• Non Hazardous Waste Disposed Of Kg Distribution A4 : 0.00003169227119989653
• Non Hazardous Waste Disposed Of Kg Installation A5 : 0.0051449596527035875
• Non Hazardous Waste Disposed Of Kg Maintenance B2 : 0
• Non Hazardous Waste Disposed Of Kg Repair B3 : 0
• Non Hazardous Waste Disposed Of Kg Replacement B4 : 0
• Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 : 2.0580882247156356
• Non Hazardous Waste Disposed Of Kg End Of Life C1 C4 : 0.013817074223276174
• Non Hazardous Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.00009712558394353554
• Ozone Depletion Kg Equivalent Cfc 11 Total Life Cycle : 0.00000017370543840766
• Ozone Depletion Kg Equivalent Cfc 11 Manufacturing A1 A3 : 0.00000009527978400449
• Ozone Depletion Kg Equivalent Cfc 11 Distribution A4 : 0.00000002358967849858
• Ozone Depletion Kg Equivalent Cfc 11 Installation A5 : 0.00000000000819814776
• Ozone Depletion Kg Equivalent Cfc 11 Maintenance B2 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Repair B3 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Replacement B4 : 0
• Ozone Depletion Kg Equivalent Cfc 11 Operational Energy Use B6 : 0.00000005472864102218
• Ozone Depletion Kg Equivalent Cfc 11 End Of Life C1 C4 : 0.00000000009913673465
• Ozone Depletion Kg Equivalent Cfc 11 Benefits Loads Beyond System Boundaries D : -0.00000000037258891002
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Total Life Cycle : 0.02724302530676745
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Manufacturing A1 A3 : 0.0008286056034297866
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Distribution A4 : 0.00019032355944360434
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Installation A5 : 0.00000289903279310478
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Maintenance B2 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Repair B3 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Replacement B4 : 0
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Operational Energy Use B6 : 0.026182859396180626
• Photochemical Ozone Formation Kg Of Nmvoc Equiv End Of Life C1 C4 : 0.00003833771492032589
• Photochemical Ozone Formation Kg Of Nmvoc Equiv Benefits Loads Beyond System Boundaries D : -0.0000105161411043769
• Radioactive Waste Disposed Of Kg Total Life Cycle : 0.0005052050485491263
• Radioactive Waste Disposed Of Kg Manufacturing A1 A3 : 0.00008953118088252897
• Radioactive Waste Disposed Of Kg Distribution A4 : 0.00000532201785935346
• Radioactive Waste Disposed Of Kg Installation A5 : 0.00000002525950759459
• Radioactive Waste Disposed Of Kg Maintenance B2 : 0
• Radioactive Waste Disposed Of Kg Repair B3 : 0
• Radioactive Waste Disposed Of Kg Replacement B4 : 0
• Radioactive Waste Disposed Of Kg Operational Energy Use B6 : 0.00040976901946803047
• Radioactive Waste Disposed Of Kg End Of Life C1 C4 : 0.00000055757083161881
• Radioactive Waste Disposed Of Kg Benefits Loads Beyond System Boundaries D : -0.0000001027459850625
• Terrestrial Eutrophication Mole Of N Equiv Total Life Cycle : 0.10671303705098499
• Terrestrial Eutrophication Mole Of N Equiv Manufacturing A1 A3 : 0.002733250674128057
• Terrestrial Eutrophication Mole Of N Equiv Distribution A4 : 0.0005283321755345683
• Terrestrial Eutrophication Mole Of N Equiv Installation A5 : 0.00001255890191083705
• Terrestrial Eutrophication Mole Of N Equiv Maintenance B2 : 0
• Terrestrial Eutrophication Mole Of N Equiv Repair B3 : 0
• Terrestrial Eutrophication Mole Of N Equiv Replacement B4 : 0
• Terrestrial Eutrophication Mole Of N Equiv Operational Energy Use B6 : 0.10328037975112689
• Terrestrial Eutrophication Mole Of N Equiv End Of Life C1 C4 : 0.00015851554828464148
• Terrestrial Eutrophication Mole Of N Equiv Benefits Loads Beyond System Boundaries D : -0.00001637598631009382
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.5727947876710932
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5727947876710932
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Total Use Of Primary Energy During The Life Cycle Mj Total Life Cycle : 326.4952729636447
• Total Use Of Primary Energy During The Life Cycle Mj Manufacturing A1 A3 : 6.831126773913922
• Total Use Of Primary Energy During The Life Cycle Mj Distribution A4 : 0.33825513186364475
• Total Use Of Primary Energy During The Life Cycle Mj Installation A5 : 0.002495742152574988
• Total Use Of Primary Energy During The Life Cycle Mj Maintenance B2 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Repair B3 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Replacement B4 : 0
• Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 : 319.24291457814434
• Total Use Of Primary Energy During The Life Cycle Mj End Of Life C1 C4 : 0.08048073757022521
• Total Use Of Primary Energy During The Life Cycle Mj Benefits Loads Beyond System Boundaries D : -0.02367926122350634
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.20562951179286
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5836318244708749
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000079133056924989
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00001128519636461367
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 44.62061491143551
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0013706993595382364
• Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0024159445972300945
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.5727947876710932
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5727947876710932
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 280.71684866418076
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 5.674700161771953
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.33825434053307546
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.0024844569562103742
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 274.62229966670884
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.07911003821068696
• Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.021263316626276237
• Use Of Non Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Non Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Non Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Non Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Non Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Non Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Non Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Non Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Non Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Non Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 0.08087184
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.08087184
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0
• Use Of Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Total Life Cycle : 45.12475767179286
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 : 0.5027599844708748
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Distribution A4 : 0.00000079133056924989
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Installation A5 : 0.00001128519636461367
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Maintenance B2 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Repair B3 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Replacement B4 : 0
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 : 44.62061491143551
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj End Of Life C1 C4 : 0.0013706993595382364
• Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Benefits Loads Beyond System Boundaries D : -0.0024159445972300945
• Use Of Renewable Secondary Fuels Mj Total Life Cycle : 0
• Use Of Renewable Secondary Fuels Mj Manufacturing A1 A3 : 0
• Use Of Renewable Secondary Fuels Mj Distribution A4 : 0
• Use Of Renewable Secondary Fuels Mj Installation A5 : 0
• Use Of Renewable Secondary Fuels Mj Maintenance B2 : 0
• Use Of Renewable Secondary Fuels Mj Repair B3 : 0
• Use Of Renewable Secondary Fuels Mj Replacement B4 : 0
• Use Of Renewable Secondary Fuels Mj Operational Energy Use B6 : 0
• Use Of Renewable Secondary Fuels Mj End Of Life C1 C4 : 0
• Use Of Renewable Secondary Fuels Mj Benefits Loads Beyond System Boundaries D : 0
• Use Of Secondary Materials Kg Total Life Cycle : 0
• Use Of Secondary Materials Kg Manufacturing A1 A3 : 0
• Use Of Secondary Materials Kg Distribution A4 : 0
• Use Of Secondary Materials Kg Installation A5 : 0
• Use Of Secondary Materials Kg Maintenance B2 : 0
• Use Of Secondary Materials Kg Repair B3 : 0
• Use Of Secondary Materials Kg Replacement B4 : 0
• Use Of Secondary Materials Kg Operational Energy Use B6 : 0
• Use Of Secondary Materials Kg End Of Life C1 C4 : 0
• Use Of Secondary Materials Kg Benefits Loads Beyond System Boundaries D : 0
• Water Use M3 Eq Total Life Cycle : 0.9879844327033812
• Water Use M3 Eq Manufacturing A1 A3 : 0.1885097398020227
• Water Use M3 Eq Distribution A4 : 0.0013802816262962403
• Water Use M3 Eq Installation A5 : 0.0005838569606708377
• Water Use M3 Eq Maintenance B2 : 0
• Water Use M3 Eq Repair B3 : 0
• Water Use M3 Eq Replacement B4 : 0
• Water Use M3 Eq Operational Energy Use B6 : 0.7943933967800682
• Water Use M3 Eq End Of Life C1 C4 : 0.0031171575343233214
• Water Use M3 Eq Benefits Loads Beyond System Boundaries D : -0.004580664832439457
• Air Pollution M3 Total Life Cycle : 0
• Air Pollution M3 Manufacturing A1 A3 : 0
• Air Pollution M3 Distribution A4 : 0
• Air Pollution M3 Installation A5 : 0
• Air Pollution M3 Maintenance B2 : 0
• Air Pollution M3 Repair B3 : 0
• Air Pollution M3 Replacement B4 : 0
• Air Pollution M3 Operational Energy Use B6 : 0
• Air Pollution M3 End Of Life C1 C4 : 0
• Air Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Water Pollution M3 Total Life Cycle : 0
• Water Pollution M3 Manufacturing A1 A3 : 0
• Water Pollution M3 Distribution A4 : 0
• Water Pollution M3 Installation A5 : 0
• Water Pollution M3 Maintenance B2 : 0
• Water Pollution M3 Repair B3 : 0
• Water Pollution M3 Replacement B4 : 0
• Water Pollution M3 Operational Energy Use B6 : 0
• Water Pollution M3 End Of Life C1 C4 : 0
• Water Pollution M3 Benefits Loads Beyond System Boundaries D : 0
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : illuminated marked legend ring
• Range Of Product : Harmony
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=475004823&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 13.469576200546289
• Circularity Profile : ENVEOLI2506032EN
• Environmental Disclosure : ENVPEP2506032EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506032EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Overview Attributes
• Device Presentation : intermediate ring
