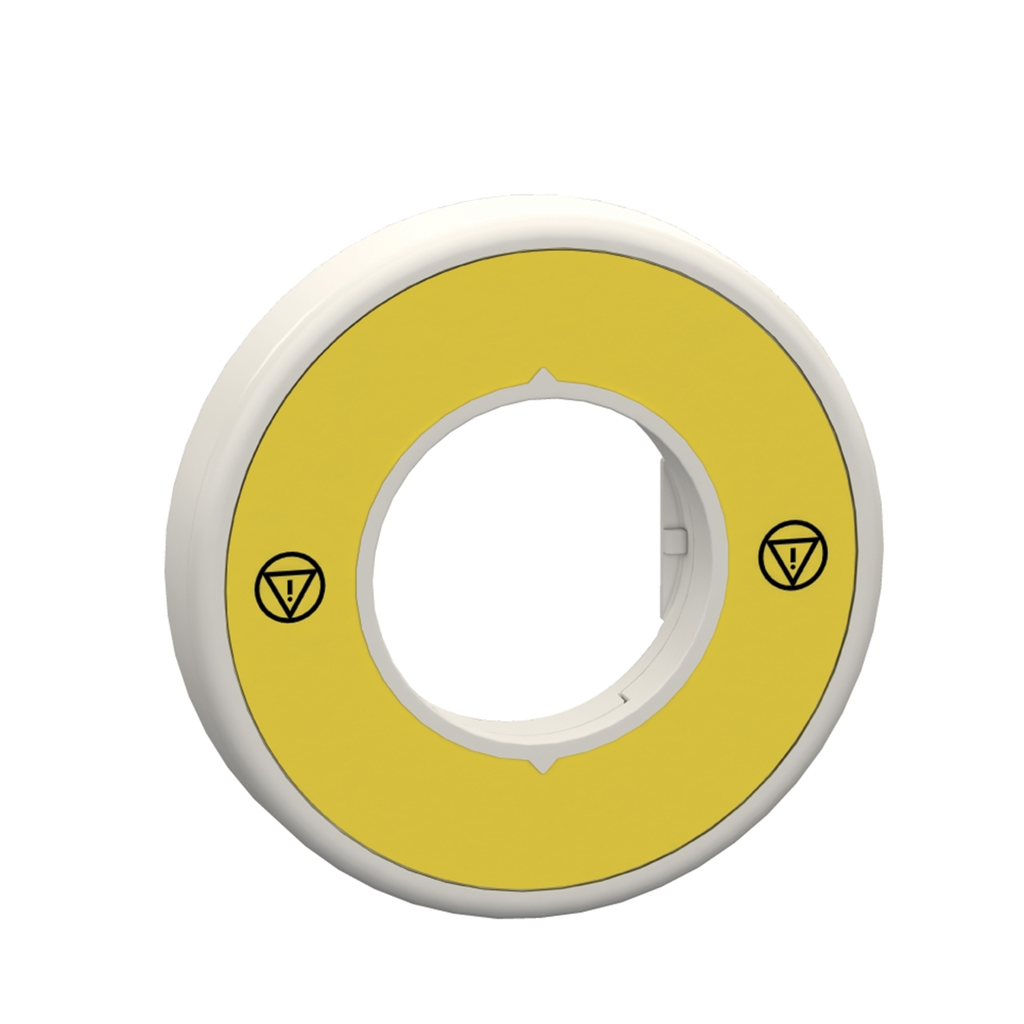

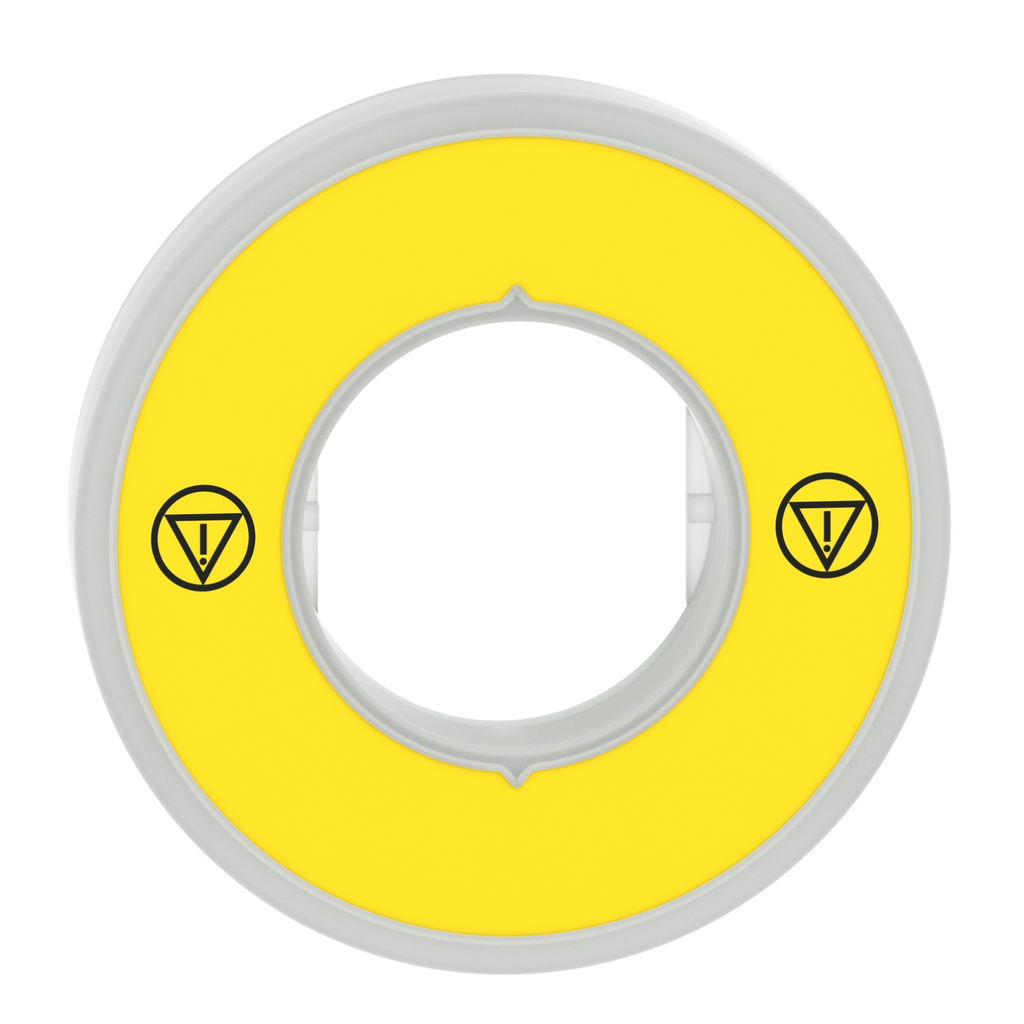

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Complementary Attributes
• UI Rated Insulation Voltage : 120 V 3)IEC 60947-1, 120 V 3)IEC 60947-1, 120 V 3)IEC 60947-1
• US Rated Supply Voltage : 110...120 V AC 50/60 Hz, 110...120 V AC 50/60 Hz, 110...120 V AC 50/60 Hz
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Compatibility Code : XB4, XB5
• Electrical Insulation Class : class II IEC 61140, class II IEC 61140
• Electromagnetic Emission : class B IEC 55011, class B IEC 55011
• Marking : unmarked yellow, unmarked yellow
• Resistance To Electromagnetic Fields : 10 V/m IEC 61000-4-3, 10 V/m IEC 61000-4-3
• Resistance To Electrostatic Discharge : 4 kV on contact (on metal parts) IEC 61000-4-2, 4 kV on contact (on metal parts) IEC 61000-4-2, 4 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
• Resistance To Fast Transients : 2 kV IEC 61000-4-4, 2 kV IEC 61000-4-4
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m, 7000000 Pa 55 °C 0.1 m
• Service Life : 100000 h at rated voltage and 25 °C, 100000 h at rated voltage and 25 °C
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
• Supply Voltage Limits : 100-132 V AC, 100-132 V AC
• Vibration Resistance : 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : integral LED
• Label Dimensions : Ø 60 mm
• Package Weight Lbs : 15.9 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : illuminated unmarked legend ring
• Range Of Product : Harmony
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2506048EN
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant By Exemption​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67 IEC 60529, IP67 IEC 60529, IP69 IEC 60529, IP69 IEC 60529, IP69K ISO 20653, IP69K ISO 20653, Type 13 UL 50E, Type 13 UL 50E, Type 12 UL 50E, Type 12 UL 50E, Type 4 UL 50E, Type 4 UL 50E, Type 4X UL 50E, Type 4X UL 50E
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2506048EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506048EN
• General Attributes
• Product Or Component Type : illuminated unmarked legend ring
• Range Of Product : Harmony
• Surge Protection And Filtering Attributes
• Surge Withstand : 1 kV IEC 61000-4-5, 1 kV IEC 61000-4-5
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Overview Attributes
• Device Presentation : intermediate ring
