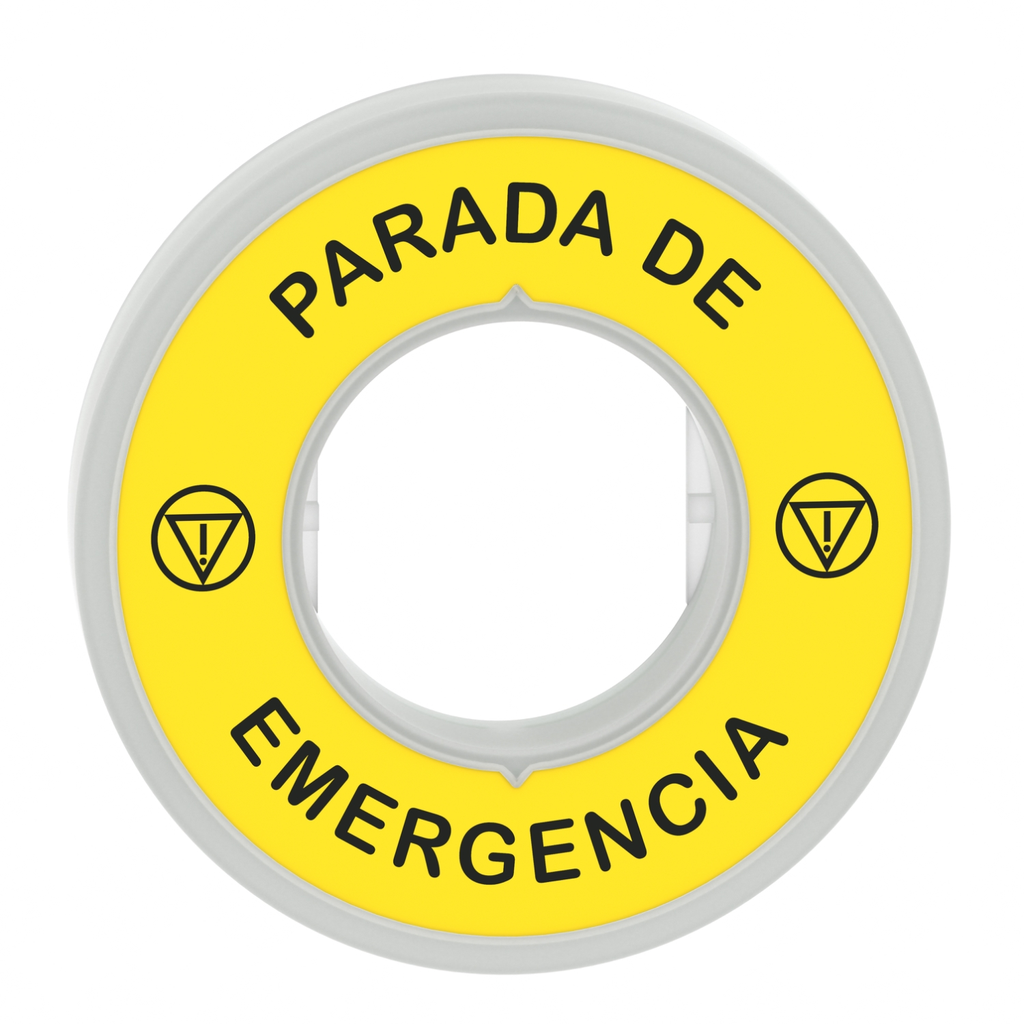

This circular legend provides clear labelling of your emergency stop devices. It is supplied ready engraved with a marking relevant to machine operation and is compatible with any standard 60mm Harmony emergency stop or switching off unit.

• US Rated Supply Voltage
• 110...120 V AC 50/60 Hz
• CAD
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_3D-simplified.stp
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-back.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-back.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-bottom.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-bottom.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-front.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-front.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-isometric.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-isometric.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-left.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-left.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-right.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-right.dxf
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-top.dwg
• https://download.schneider-electric.com/files?p_Doc_Ref=MCADID0005603_3D-CAD&p_File_name=MCADID0005603_2D-top.dxf
• Supply Voltage Limits
• 100-132 V AC
• IP Degree Of Protection
• IP66 IEC 60529
• IP67 IEC 60529
• IP69 IEC 60529
• IP69K ISO 20653
• Type 13 UL 50E
• Type 12 UL 50E
• Type 4 UL 50E
• Type 4X UL 50E
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• UI Rated Insulation Voltage
• 120 V 3)IEC 60947-1
• Marking
• black PARADA DE EMERGENCIA yellow
• Accessories
• ZB5AZ905
• ZBYLEG503001
• Service Life
• 100000 h at rated voltage and 25 °C
• Electrical Insulation Class
• class II IEC 61140
• Vibration Resistance
• 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
• 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• Charge Point Operator
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• Electrician
• System Integrator
• IT Channel Partner
• Resistance To Fast Transients
• 2 kV IEC 61000-4-4
• Persona Type Ids
• BM9
• EU
• LC
• OM
• OM8
• PB
• SC
• SI
• VR
• Surge Withstand
• 1 kV IEC 61000-4-5
• Electromagnetic Emission
• class B IEC 55011
• Compatibility Code
• XB4
• XB5
• Resistance To Electrostatic Discharge
• 4 kV on contact (on metal parts) IEC 61000-4-2
• 8 kV in free air (in insulating parts) IEC 61000-4-2
• Resistance To High Pressure Washer
• 7000000 Pa 55 °C 0.1 m
• Resistance To Electromagnetic Fields
• 10 V/m IEC 61000-4-3
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Shock Resistance
• 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
• 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2024-01-12
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant with Exemptions
• ROHS EUR Conformity Date : 1930
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• China ROHS Label : 7
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Bulb Base : integral LED
• Label Dimensions : Ø 60 mm
• Package Weight Lbs : 15.9 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : illuminated marked legend ring
• Range Of Product : Harmony
• Returnability : Yes
• Sale Per Indivisible Quantity : 1
• Shape Of Signaling Unit Head : round
• Signalling Type : steady
• Sustainable Packaging : No
• Relationship Type : Compatible relationship
• Pep Code : ENVPEP2506048EN
• Nbr Of Units In Pkg : 1
• Warranty In Months : 18
• General Attributes
• Product Or Component Type : illuminated marked legend ring
• Range Of Product : Harmony
• Environment Attributes
• ROHS Exemption Information : Yes
• China ROHS url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=475004808&lang=en-us
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Environmental Disclosure : ENVPEP2506048EN
• EU ROHS Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2506048EN
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Overview Attributes
• Device Presentation : intermediate ring
