Foot Switch, Harmony, industrial, oversized pedal and side shields with safety door, four stage, 10A at 600 VAC, 2 DPDT

FOOT SWITCH 600VAC 10AMP +OPTI

SQD9002AW123 9002AW123 785901846314
1393.81 / EACH
http://schema.org/OutOfStock

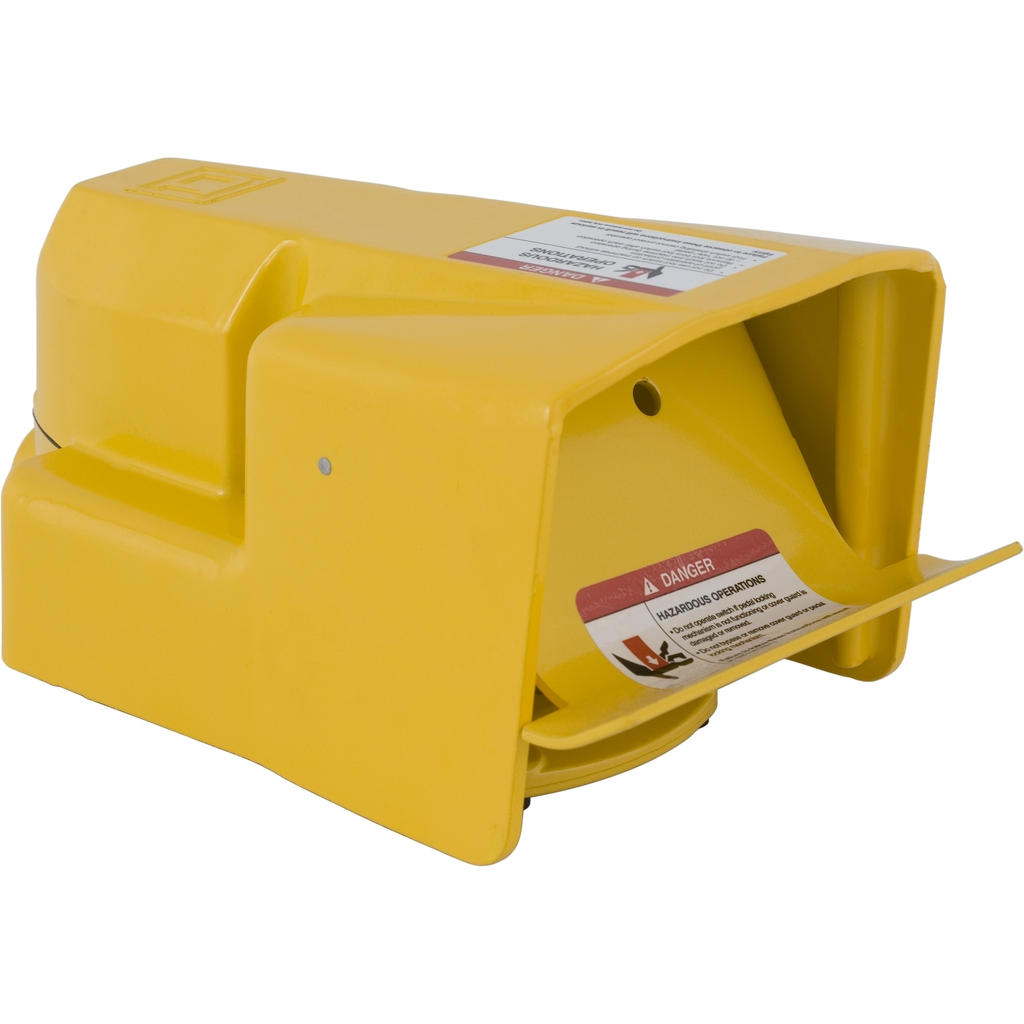

Mayer-DDS-Foot Switch, Harmony, industrial, oversized pedal and side shields with safety door, four stage, 10A at 600 VAC, 2 DPDT-1
  • Cable Entry: 0.75 in
  • Country of Origin: Mexico
  • Depth: 283 mm
  • Height: 159 mm
  • Warranty Length: 18 mth
  • Width: 163 mm
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The two double pole double throw snap switches used for the contacts of this foot switch are rated at 10A resistive at 600 VAC. For other contact ratings, refer to the catalog. Each of the double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
QTY
  • Product Description
  • Features
  • Specifications
9002AW NEMA industial foot switches are heavy duty devices to used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has an oversized pedal shield, side shields and a safety door. The two double pole double throw snap switches used for the contacts of this foot switch are rated at 10A resistive at 600 VAC. For other contact ratings, refer to the catalog. Each of the double pole double throw snap switch contains two electrically separated sets of contact elements allowing use on circuits of opposite polarity. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP121009EN
    • Packaging Without Single Use Plastic : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Circularity Profile : N/A
    • Take-Back : No
    • Sustainable Packaging : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
  • Specifications
    • Country of Origin : Mexico
    • Product Certifications : CSA || UL Listed
    • Height : 159 mm
    • Range Of Product : 9002AW
    • Type Of Operator : spring return
    • Product Or Component Type : foot switch
    • Nema Degree Of Protection : NEMA 2/4/13
    • Contact Operation : 4 steps
    • Switch Function : SPDT per step
    • Cable Entry : 0.75 inch NPT conduit entrance
    • Width : 163 mm
    • Depth : 283 mm
    • Device Composition : side shield || oversized pedal shield || safety door
    • [Ue] Rated Operational Voltage : 600 V AC/DC
  • Contractual warranty
    • Warranty : 18 months
