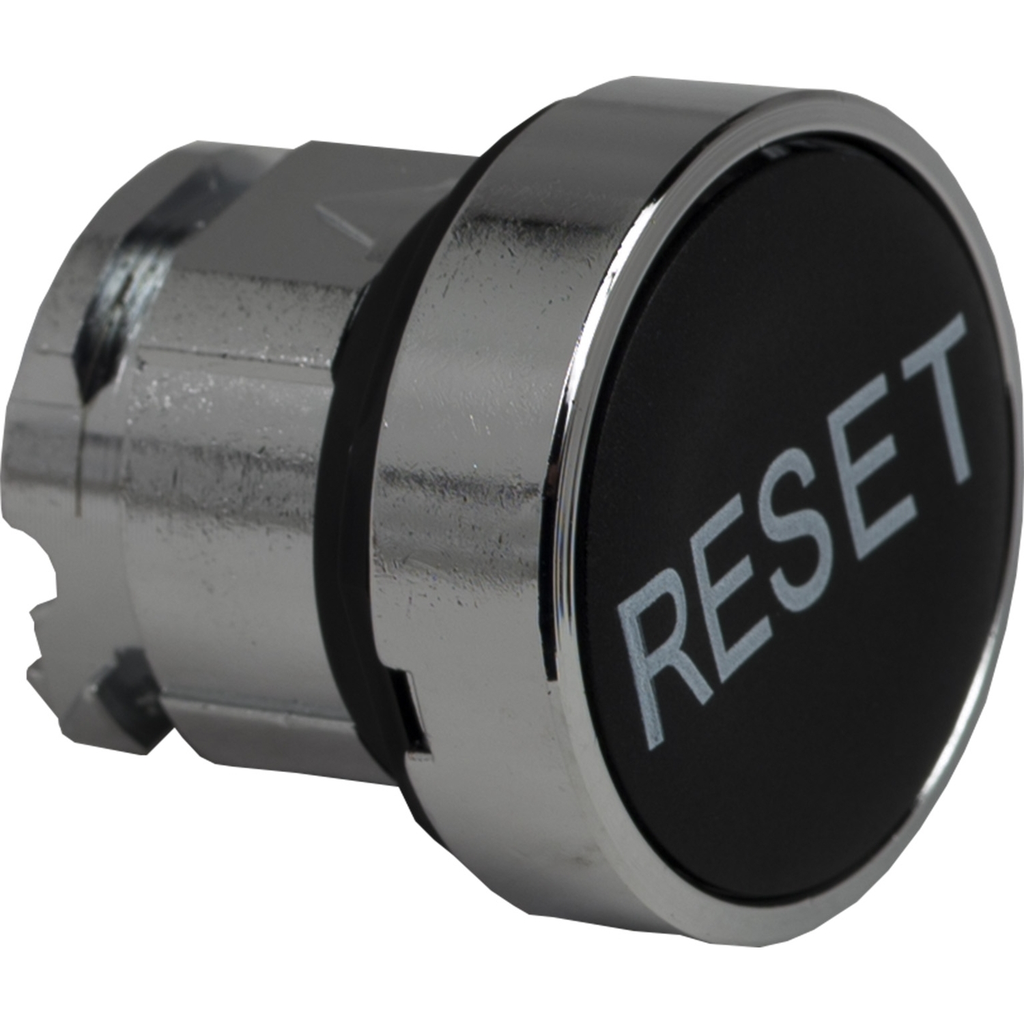

This button head provides an ergonomic interface for controlling your machines It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly High performance International standards & certifications ( Marine certification, IP66)

• Prop 65
• WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• IP Degree Of Protection : IP66 IEC 60529, IP66 IEC 60529, IP67, IP69, IP69K
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 0.2952643891
• Circularity Profile : ENVEOLI2308035EN
• Environmental Disclosure : ENVPEP2308035EN
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Pep Code : ENVPEP2308035EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Important Information Attributes
• Customizable : no, 0
• Operator Profile : flush, RESET, flush, RESET
• Overvoltage Category : class I conforming to IEC 60536, class I conforming to IEC 60536
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6, 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Carbon Footprint Of The Distribution Phase A4 : 0.0044462159, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0 kg CO2 eq., 0.0430061684
• Carbon Footprint Of The Installation Phase A5 : 0.0068193594, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.2 kg CO2 eq., 0.2409926453
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-19
• Legacy WEEE Scope : Out
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2308035EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Compatibility Code : ZB4
• Device Short Name : ZB4
• Group Of Product : flush push with marking
• Head Type : standard
• Main Group : push-button
• Mounting Diameter : 22.5 mm
• Package Weight Lbs : 30.000 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 0.3 kg CO2 eq.
• Pep Code : ENVPEP2308035EN
• Pep Verification Date : 2023-08-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : This Harmony XB4 modular green push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections.The main function of a push button switch is to switch something either on or off industrial applications with power consumption 0.002W with 71% active mode for 10 years and product is conforming with standard EN 60947-5-1.
• Functional Unit Unit : Unit
• Product Kit Identifier : N
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• General Attributes
• Product Or Component Type : head for non-illuminated push-button
• Range Of Product : Harmony XB4
