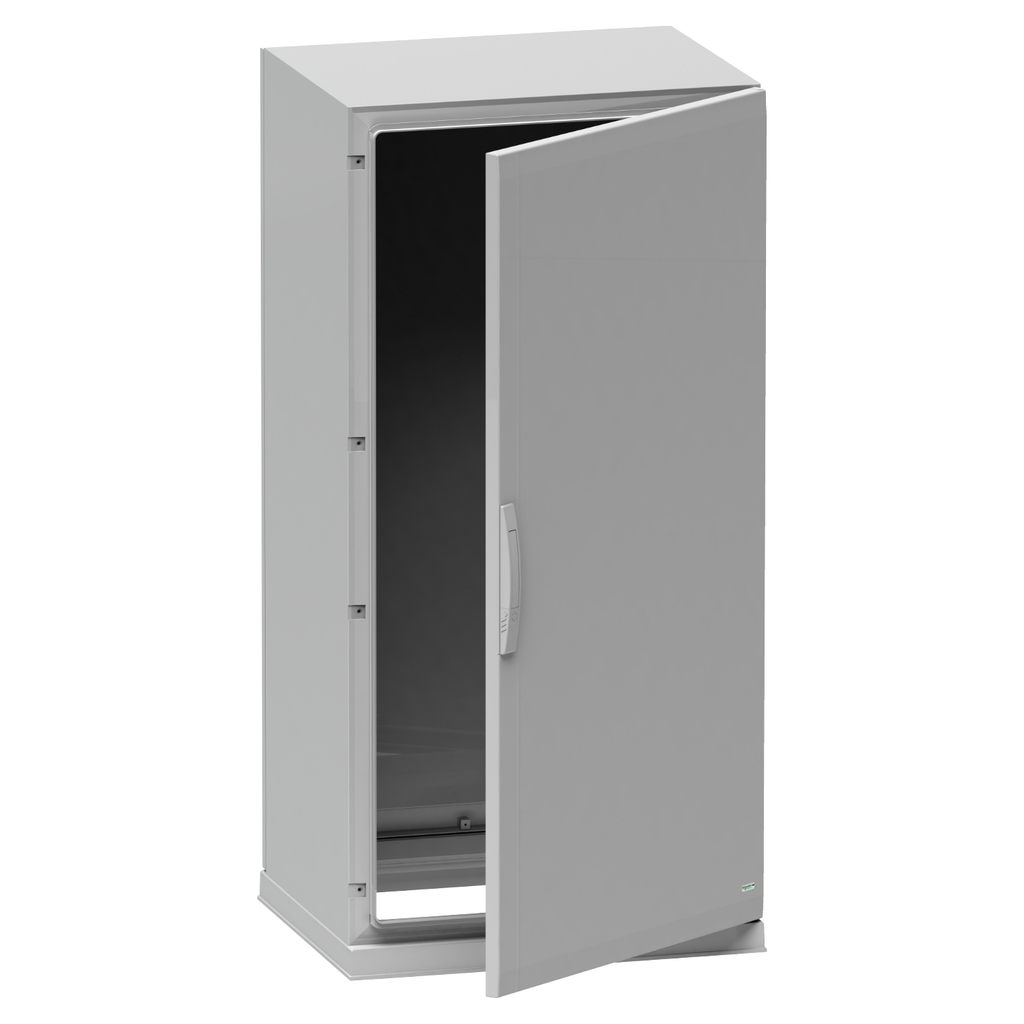

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 1250x500x420mm, IP54, IK10

FLOOR STANDING ENCL.POLYESTER

SQDNSYPLAZ1254G NSYPLAZ1254G 3606480775680
876.73 / EA
http://schema.org/OutOfStock
Mayer-DDS-Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 1250x500x420mm, IP54, IK10-2
  • Body Type: Sealed Top And Open Bottom Part Assembled With Side Parts
  • Country of Origin: Spain
  • Enclosure Height: 1250 mm
  • Enclosure Width: 500 mm
  • Lock Type: 5 mm
  • Material: Fiberglass, Polyester
  • Number of Doors: 1
  • Warranty Length: 18 mth
QTY
  • Features
  • Specifications
  • Carbon Footprint Of The Installation Phase A5
    • 11.116857640419958
    • 11 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 60 kg CO2 eq.
    • 60.178672220776676
  • Ip Degree Of Protection
    • IP54 IEC 60529 plinth type open bottom)
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 120 kg CO2 eq.
    • 119.88413101372043
  • Removable Parts
    • door by hinges
    • rear panel by fixing element
  • Accessories
    • NSYMUPLA124G
    • NSYUVPLA
    • NSYTJPLA54G
    • NSYFMPLA
    • NSYECPLAZ54G
    • NSYZZ254G
    • NSYZHPLA54G
    • NSYSNLPLA
    • NSYINS61
    • NSYIN2452E1
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Device Composition
    • 1 top part
    • 1 bottom part
    • 2 side part
    • 1 rear panel
    • 1 door
    • 1 plinth
  • Fire Resistance
    • 960 °C IEC 62208
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 0 kg CO2 eq.
    • 0
  • Persona Type Ids
    • LC
    • OM
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 65.51564855924242
    • 66 kg CO2 eq.
  • Door Opening Side
    • reversible 120 °)
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Color
    • Gray RAL 7035)
  • Door Type
    • Solid front
  • Physical Attributes
    • Enclosure Nominal Height : 1250 mm
    • Enclosure Nominal Width : 500 mm
  • Conformance Attributes
    • Product Certifications : Veritas
    • Standards : IEC 62208
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-12-12
    • Etim 10 : EC000261
    • Manufacturing Carbon Footprint : 119.88413101372
    • Distribution Carbon Footprint : 65.5156485592424
    • Installation Carbon Footprint : 11.11685764042
    • Use Carbon Footprint : 0
    • End Of Life Carbon Footprint : 60.1786722207767
    • Legacy Weee Scope : Out
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : CONTAINS_SVHC
    • Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 1916
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : No
    • With Recycled Cardboard : No
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : N
    • Wd Status : 1 - GSC certified
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Body Type : sealed top and open bottom part assembled with side parts
    • Device Application : multi-purpose
    • Device Short Name : PLAZ
    • Electrical Insulation Class : class II
    • Enclosure Mounting : floor-standing
    • Energy Efficiency Optimized : False
    • Lock Type : 4 points lock, handle with 5 mm double bar insert
    • Material : polyester reinforced with fibreglass
    • Number Of Doors : 1
    • Package Weight Lbs : 33.000 kg
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : suitable enclosure
    • Range : PanelSeT
    • Returnability : No
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 257 kg CO2 eq.
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 256.6953094341595
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : suitable enclosure
  • ETIM
    • ETIM 8 : EC000261
    • ETIM 9 : EC000261
  • Environment Attributes
    • Take Back : No
    • Recycled Metal Content At Cr Level : 0 %
    • China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
    • Mercury Free : Yes
    • Carbon Footprint : 256.69530943416
    • Ambient Air Temperature For Storage : -35-90 °C
    • Environmental Disclosure : ENVPEP110505EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Packaging Made With Recycled Cardboard : No
    • Packaging Without Single Use Plastic : No
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Spain
