SQUARE D

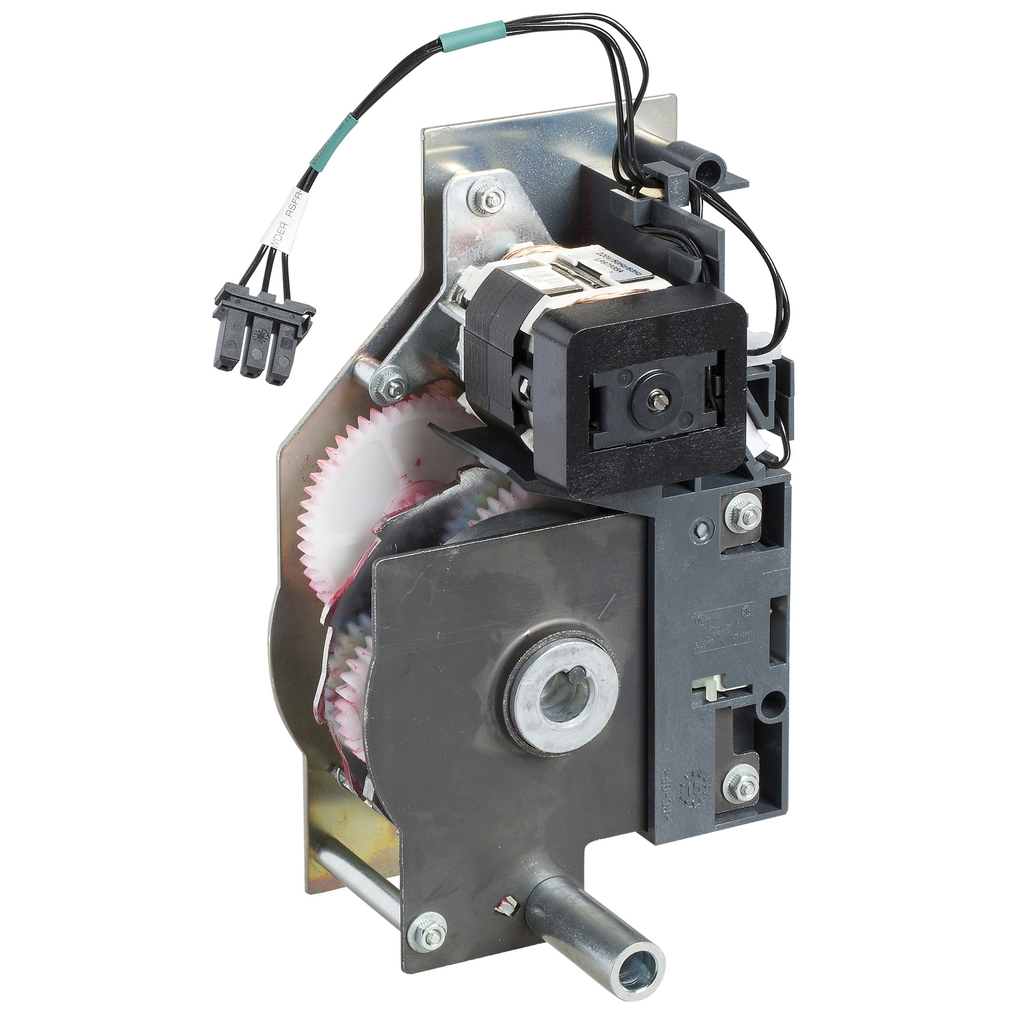

Electric motor MCH, MasterPact MTZ1, remote operation, 200/250VDC, spare part

Electric motor MCH, MasterPact

SQDLV833188SP LV833188SP 3606481186355
3580.00 / EA
http://schema.org/OutOfStock
Mayer-DDS-Electric motor MCH, MasterPact MTZ1, remote operation, 200/250VDC, spare part-1
  • Country of Origin: USA
QTY
  • Features
  • Specifications
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Environmental data
    • Rohs Exemption Information : Yes
    • Packaging Made With Recycled Cardboard : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP2307034EN
    • Halogen Content Performance : Halogen free plastic parts product
    • Packaging Without Single Use Plastic : Yes
    • Scip Number : 8105062d-c949-4aef-a371-66dcfc82357e
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Minimum Percentage Of Recycled Plastic Content : 0
    • Recycled Metal Content At Cr Level : 0
    • Circularity Profile : ENVEOLI2307034EN
    • Take-Back : No
    • Global Warming ; Total Life Cycle​ : 6 kg CO2 eq.
    • Eu Rohs Directive : Compliant with Exemptions
    • Carbon Footprint (Kg Co2 Eq, Total Life Cycle) : 5.967831443966315
  • Complementary
    • [Uc] Control Circuit Voltage : 200...250 V DC
    • Maximum Charging Time : 3 s
    • Control Type : standard
    • Rated Voltage : limit switch contact 240 V 10 A
    • Overcurrent Protection : 2...3 x In 0.1 s
    • Threshold Tripping Voltage : 0.85...1.1 Un
    • Maximum Operating Frequency : <= 3 cycles per minute
    • Maximum Power Consumption In Va : 180 VA
  • Specifications
    • Country of Origin : United States
    • Range Compatibility : Masterpact MasterPact MTZ1
    • Product Or Component Type : motor mechanism
    • Range : MasterPact
    • Device Application : control
    • Device Short Name : MCH
  • Environment
    • Provided Equipment : 1 instruction sheet
    • Offer Type : spare part
