SQUARE D

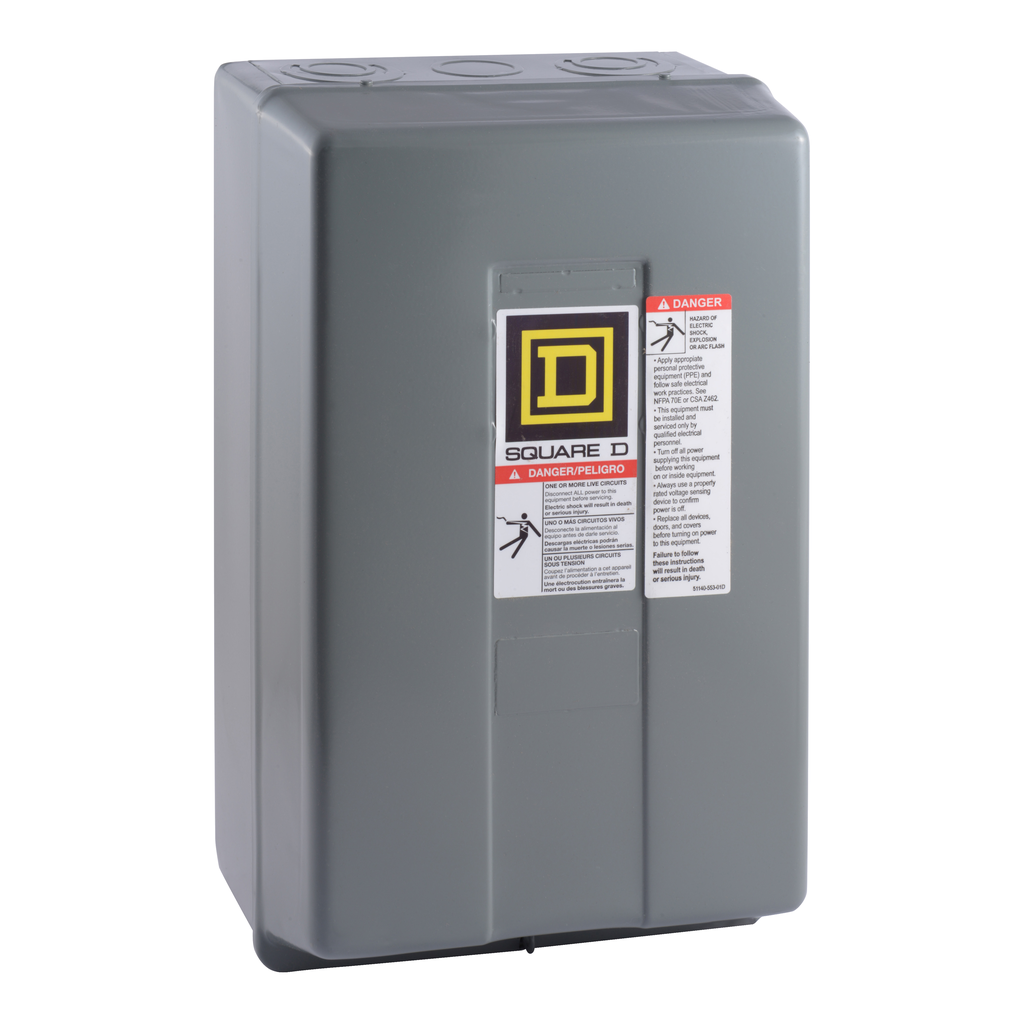

Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600 V, 208 VAC 60 Hz coil, NEMA 1

LIGHTING CONTACTOR 600VAC 30A

SQD8903LG30V08 8903LG30V08 785901022695
512.16 / EACH
http://schema.org/OutOfStock
Mayer-Contactor, Type L, multipole lighting, electrically held, 30A, 3 pole, 600 V, 208 VAC 60 Hz coil, NEMA 1-1
  • Certifications: CSA, UL Listed
  • Depth: 153 mm
  • Height: 322 mm
  • IsSustainable: No
  • Line Rated Current: 20-20 A, 30-30 A
  • Warranty Length: 18 mth
  • Width: 198 mm
UL Listed and CSA certified to meet a variety of North American needs
QTY
  • Specifications
  • Specifications
    • Range Of Product : 8903L
    • Control Circuit : separate control circuit
    • Product Or Component Type : Electrically Held Lighting Contactor
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Local Signalling : no indicator
    • Height : 322 mm
    • Control Type : no control units
    • [Uc] Control Circuit Voltage : 208 V AC 60 Hz
    • Hold-In Power Consumption In Va : 30-30 VA 60 Hz
    • Electrical Connection : screw-clamp terminals
    • Width : 198 mm
    • Depth : 153 mm
    • Line Rated Current : 20-20 A tungsten || 30-30 A fluorescent
    • Inrush Power In Va : 150-150 VA 60 Hz
    • Poles Description : 3P 3 NO
  • Offer Sustainability
    • China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP1407018EN
    • Sustainable Offer Status : Green Premium product
    • Pvc Free : Yes
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Compliant
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • Halogen Content Performance : Halogen free plastic parts product
    • Reach Free Of Svhc : Yes
  • Environment
    • Product Certifications : UL Listed || CSA
    • Nema Degree Of Protection : NEMA 1 painted sheet steel surface
