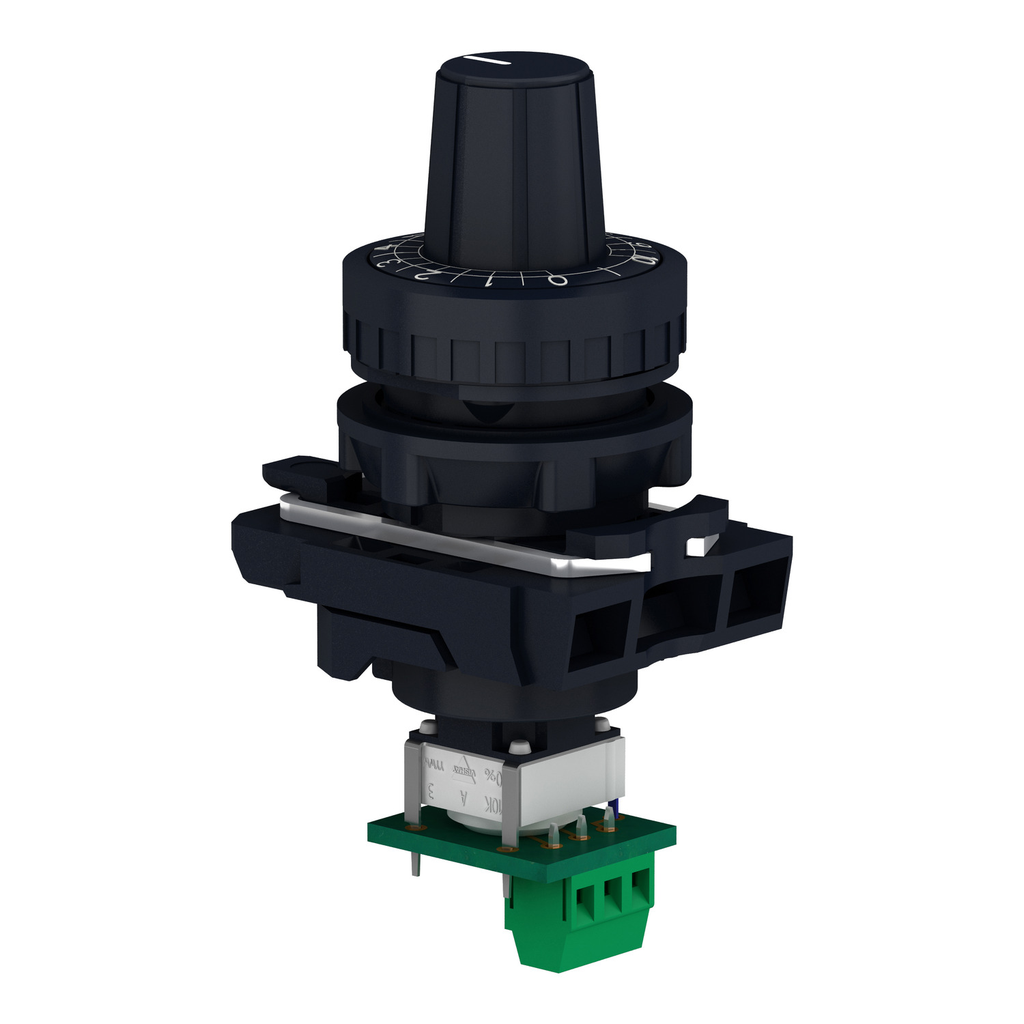

This Harmony XB5, 22mm diameter potentiometer has a resistance of 10kΩ and uses screw clamp terminals. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Physical Attributes
• Cad Overall Depth : 82 mm
• Cad Overall Height : 42 mm
• Cad Overall Width : 30 mm
• Color Of Marking : white
• Complementary Attributes
• US Rated Supply Voltage : <= 42 V DC, <= 42 V DC, <= 30 V AC, <= 30 V AC
• Rated Power In W : 1 W 70 °C
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Customizable : no, 0
• Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
• Carbon Footprint Of The Distribution Phase A4 : 0.006276754785779399, 0 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.11017684594348223
• Carbon Footprint Of The Installation Phase A5 : 0.012486235186873291, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 0.6 kg CO2 eq., 0.5590337283500456
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0.5 kg CO2 eq., 0.46984
• Local Data Status : Publishable
• Local Publishable Date : 2025-12-17
• HTML Description : Head Ø22 + mounting base + potentiometer 10K
• Manufacturer : Schneider Electric
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI2312041EN
• Product Repair Index Dam Doc : XB4BS8442-ENVREPAIR-A-EN
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : dark grey plastic
• Color Of Marking : white
• Compatibility Code : XB5
• Device Short Name : XB5
• Electrical Shock Protection Class : class II conforming to IEC 60536
• Group Of Product : potentiometer knurled knob
• Head Type : standard
• Main Group : potentiometer
• Mounting Diameter : 22 mm
• Ohmic Value : 10000 Ohm
• Operator Profile : knurled knob, with white)
• Package Weight Lbs : 58.000 g
• Precision Of Internal Conversion Resistor : +-10%
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : potentiometer
• Product Repair Index : A
• Range Of Product : Harmony XB5
• Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
• Returnability : Yes
• Shape Of Signaling Unit Head : round
• Sustainable Packaging : No
• Total Lifecycle Carbon Footprint : 1 kg CO2 eq.
• Vibration Resistance : 5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Relationship Type : Compatible relationship
• Product Repair Index Dam Document Id : XB4BS8442-ENVREPAIR-A-EN
• Pep Code : ENVPEP2312041_V1
• Pep Verification Date : 2024-06-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : Potentiometer is used to precise control and adjustment of machines in industrial applications. Potentiometers provide a particularly easy way to control speed or configure general settings such as temperature.It is made up of metal bezel and It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.This product will be in active mode at 70% with power consumption of 0.017 W with life span of 10 years and adhering to IEC 60947-1 standards.
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Nema Degree Of Protection : NEMA 13, NEMA 4X
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Mercury Free : Yes
• Carbon Footprint : 1.1578135642661804
• Circularity Profile : ENVEOLI2312041EN
• Environmental Disclosure : ENVPEP2312041_V1
• IP Degree Of Protection : IP66 IEC 60529
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Pep Code : ENVPEP2312041_V1
• Pep Verification Date : 2024-06-01
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed2-2016 03 29
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : potentiometer
• Range Of Product : Harmony XB5
• Overview Attributes
• Device Presentation : complete product
