SQUARE D

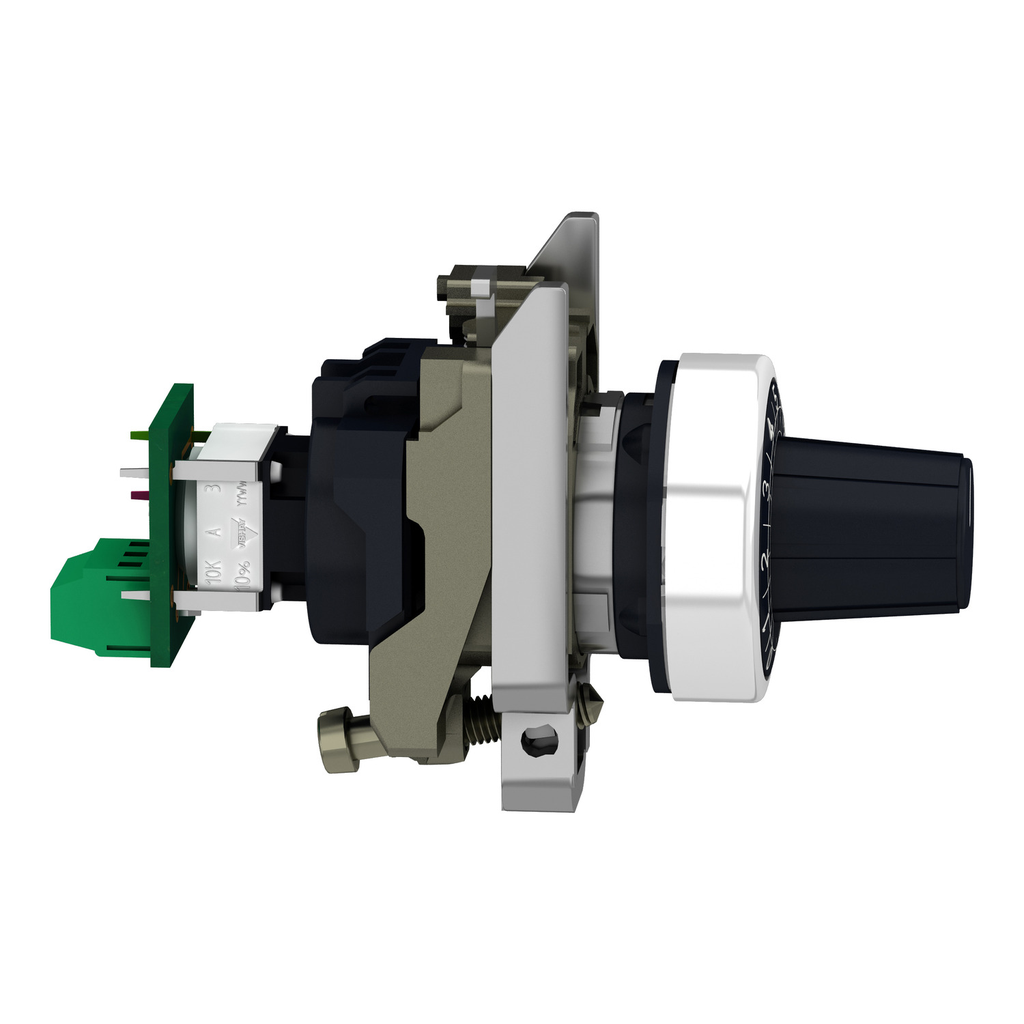

Harmony XB4, Complete potentiometer, metal, Ø22, 4K7

POTENTIOMETER KIT SQD XB4BD912

SQDXB4BD912R4K7 XB4BD912R4K7 785901527664
49.91 / EA
  • Bezel Material: Chromium Plated Metal
  • Certifications: BV, CSA, UL Listed
  • Material: Cermet
  • Net Weight: 0.095 kg
  • Rated Power: 1 W
  • Standard: CSA C22.2 No 14, EN/IEC 60947-1, UL 508
  • Storage Temperature: -40-70 °C
This Harmony XB4 potentiometer has a resistance of 4.7kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
  • Product Description
  • Specifications
This Harmony XB4 potentiometer has a resistance of 4.7kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.
  • Complementary
    • Net Weight : 0.095 kg
    • Shock Resistance : 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    • Potentiometer Characteristic : linear
    • Cad Overall Depth : 82 mm
    • Protective Treatment : TH
    • [Us] Rated Supply Voltage : <= 30 V AC || <= 42 V DC
    • Nema Degree Of Protection : NEMA 13 || NEMA 4X
    • Ik Degree Of Protection : IK06 IEC 50102
    • Group Of Product : potentiometer knurled knob
    • Vibration Resistance : 5 gn 2-500 Hz)IEC 60068-2-6
    • Precision Of Internal Conversion Resistor : +-10%
    • Electrical Shock Protection Class : class II IEC 60536
    • Mounting Diameter : 22 mm
    • Cad Overall Height : 47 mm
    • Main Group : potentiometer
    • Shape Of Signaling Unit Head : round
    • Ohmic Value : 4700 Ohm
    • Rated Power In W : 1 W 70 °C
    • Product Compatibility : Ø 6 mm shaft
    • Mechanical Durability : 50000 cycles
    • Resistance To High Pressure Washer : 7000000 Pa 55 °C 0.1 m
    • Colour Of Marking : white
    • Ambient Air Temperature For Operation : -40-70 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Bezel Material : chromium plated metal
    • Cad Overall Width : 30 mm
    • Material : cermet
    • Operator Profile : knurled knob, with white)
    • Standards : CSA C22.2 No 14 || EN/IEC 60947-1 || UL 508
    • Sale Per Indivisible Quantity : 1
    • Ip Degree Of Protection : IP66 IEC 60529 || IP69 IEC 60529 || IP69K IEC 60529
    • Product Certifications : CSA || UL Listed || BV
  • Device Short Name : XB4
  • Range Of Product : Harmony XB4
  • Device Presentation : complete product
  • Head Type : standard
  • Product Or Component Type : potentiometer
  • Offer Sustainability
    • Sustainable Offer Status : Green Premium product
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Mercury Free : Yes
    • Circularity Profile : ENVEOLI1808008EN
    • Rohs Exemption Information : Yes
    • Reach Regulation : Reference contains Substances of Very High Concern above the threshold
    • Environmental Disclosure : ENVPEP1808008EN
    • China Rohs Regulation : X
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
