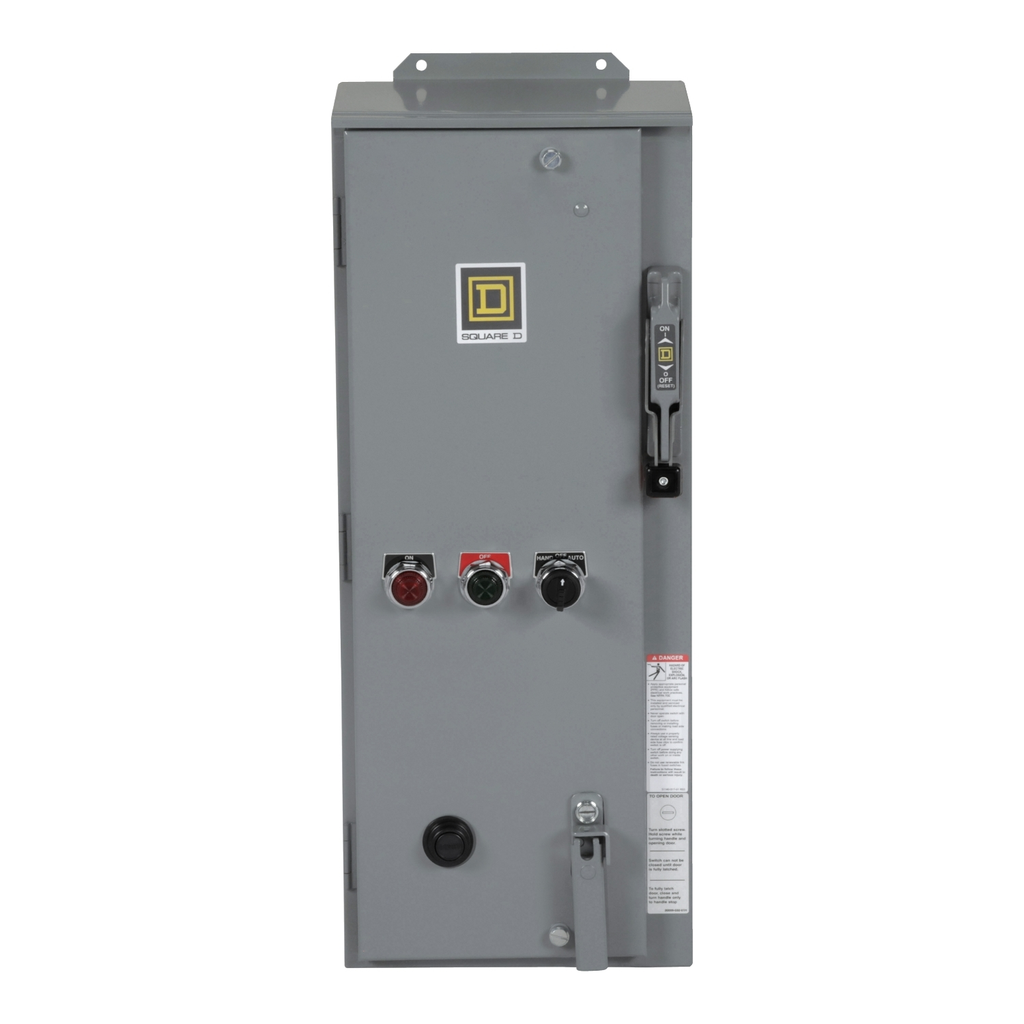

NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12 [TAA]

NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12 [TAA]

SQD8538SDASP5 8538SDASP5 785901908258
3198.79 / EACH
http://schema.org/OutOfStock
Mayer-DDS-NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12 [TAA]-2
  • Country of Origin: Mexico
  • Depth: 9.59 in
  • Height: 27.75 in
  • Warranty Length: 18 mth
  • Width: 10.5 in
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 15 HP at 480 a
QTY
  • Product Description
  • Features
  • Specifications
Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 15 HP at 480 a
  • Uc Control Circuit Voltage
    • 110 V AC 50 Hz
    • 120 V AC 60 Hz
  • Control Type
    • selector switch HAND-OFF-AUTO)
  • Ue Rated Operational Voltage
    • 600 V AC
  • Nema Degree Of Protection
    • NEMA 12 painted sheet steel with external reset
  • Accessories
    • 9999SX6
    • 9999SX7
    • 9999SX8
  • Maximum Horse Power Rating
    • 15-15 hp 460 V AC, 3 phase
    • 15-15 hp 575 V AC, 3 phase
  • Disconnector Device Type
    • fusible disconnect switch H and K, 30 A, electrical SPDT
    • fusible disconnect switch
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
  • Persona Type Ids
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
  • Thermal Overload Type
    • solid state Motor Logic class 10/20 15-45 A
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Local Signalling
    • red indicator on LED
    • green indicator off LED
  • Product Certifications
    • UL Listed
    • CSA
  • Complementary Attributes
    • Control Circuit : separate control circuit
    • Line Rated Current : 45 A
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2025-05-30
    • Legacy Weee Scope : In
    • Weee Product Category : 5
    • Scope Perimeter : Outside of Europe
    • Rohs Eur In Scope : Yes
    • Rohs Eur Full Compliance Status : Under investigation
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Motor Starter Type : non reversing
    • Package Weight Lbs : 23.133 kg
    • Poles Description : 3P
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : Combination Starter
    • Range Of Product : S
  • Environment Attributes
    • Take Back : No
    • Eu Rohs Directive : Under investigation
    • Nema Size : 2
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : Mexico
    • Height : 27.75 in
    • Width : 10.5 in
    • Compliance : TAA
    • Depth : 9.59 in
