SQUARE D

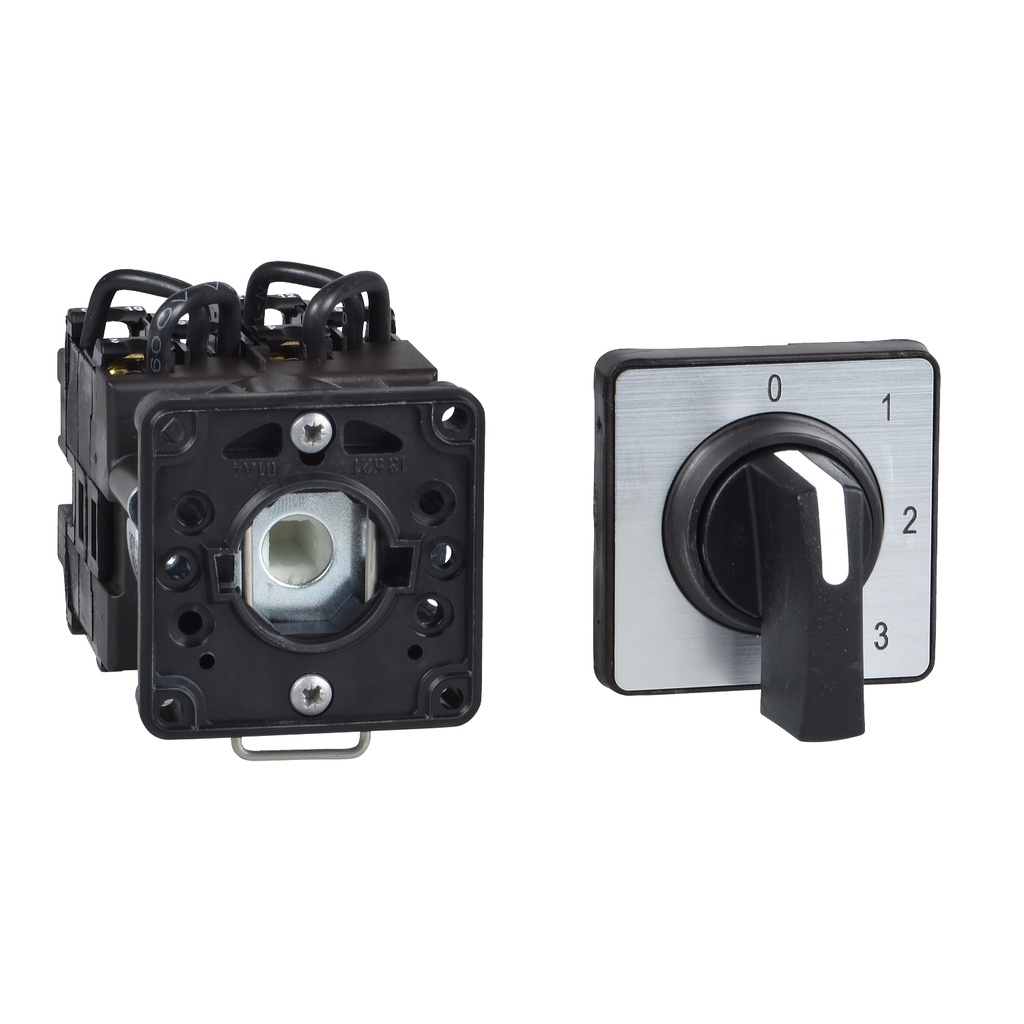

cam changeover switch - 2-pole - 45° - 20 A - for Ø 22 mm

Cam switch - changeover

SQDK2D002UCH K2D002UCH 3389110979770
140.85 / EA
http://schema.org/OutOfStock
  • Certifications: CSA 240 V 1 Hp 1 Phase, CSA 240 V 3 Hp 3 Phase 2, UL 240 V 0.33 Hp 1 Phase 2, UL 240 V 1 Hp 3 Phase
  • Net Weight: 0.16 kg
  • Operating Temperature: -25-55 °C
  • Short Circuit Current: 10000 A
  • Standard: CENELEC EN 50013, EN 60947-3 Power Circuit, EN 60947-5-1 Control Circuit, IEC 60947-3 Power Circuit, IEC 60947-5-1 Control Circuit
  • Storage Temperature: -40-70 °C
  • Warranty Length: 18 mth
QTY
  • Specifications
  • Specifications
    • Switching Positions : right: 0° - 45° || left: 0° - 315°
    • Range Of Product : Harmony K
    • Cam Switch Head Type : with front plate 45 x 45 mm
    • Fixing Mode : Ø 22 mm hole
    • Product Mounting : front mounting
    • Presentation Of Legend : with metallic, 2 - 0 - 1 black
    • Poles Description : 2P
    • Rotary Handle Padlocking : without
    • Ip Degree Of Protection : IP65 IEC 529 || IP65 NF C 20-010
    • Return : without
    • Product Or Component Type : complete cam switch
    • [Ith] Conventional Free Air Thermal Current : 20 A
    • Cam Switch Function : changeover switch
    • Component Name : K2
    • Type Of Operator : Black handle 35 mm
    • Off Position : with Off position
  • Contractual warranty
    • Warranty : 18 months
  • Complementary
    • Electrical Connection : captive screw clamp terminals flexible 2 x 1.5 mm² || captive screw clamp terminals solid 1 x 2.5 mm²
    • Electrical Durability : 200000 cycles AC-23 || 200000 cycles AC-3 || 600000 cycles AC-15 || 600000 cycles AC-21
    • Maximum Operating Rate : 2.5 cyc/mn AC-21 || 2.5 cyc/mn AC-23 || 2.5 cyc/mn AC-3 || 8.333 cyc/mn AC-15
    • Short-Circuit Current : 10000 A
    • Short-Circuit Protection : 20 A cartridge fuse gG
    • [Ui] Rated Insulation Voltage : 690 V 3)IEC 60947-1
    • Positive Opening : with
    • Contact Operation : slow-break
    • Mechanical Durability : 1000000 cycles
    • [Ithe] Conventional Enclosed Thermal Current : 16 A
    • Cad Overall Width : 45 mm
    • Cad Overall Depth : 59 mm
    • Net Weight : 0.16 kg
    • [Uimp] Rated Impulse Withstand Voltage : 4 kV in isolating function || 6 kV IEC 947-1
    • Cad Overall Height : 50 mm
    • Switching Angle : 45 °
  • Offer Sustainability
    • China Rohs Regulation : X
    • Rohs Exemption Information : Yes
    • Mercury Free : Yes
    • Environmental Disclosure : ENVPEP071103EN_V1
    • Sustainable Offer Status : Green Premium product
    • Toxic Heavy Metal Free : Yes
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
    • California Proposition 65 : WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    • Reach Free Of Svhc : Yes
    • Weee : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
  • Environment
    • Ambient Air Temperature For Operation : -25-55 °C
    • Ambient Air Temperature For Storage : -40-70 °C
    • Electrical Shock Protection Class : class II IEC 536 || class II NF C 20-030
    • Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6
    • Shock Resistance : 30 gn IEC 68-2-27
    • Product Certifications : CSA 240 V 3 hp 3 phase 2 || UL 240 V 0.33 hp 1 phase 2 || CSA 240 V 1 hp 1 phase || UL 240 V 1 hp 3 phase
    • Protective Treatment : TC
    • Standards : EN 60947-3 power circuit || EN 60947-5-1 control circuit || IEC 60947-3 power circuit || IEC 60947-5-1 control circuit || CENELEC EN 50013
