Straight length, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, integral ground bus, Cu, plug in, 10ft [TAA]

BUSWAY PLUG-IN STRAIGHT LENGTH

SQDCP2508G10ST CP2508G10ST 785901068617
18042.81 / EACH
http://schema.org/OutOfStock

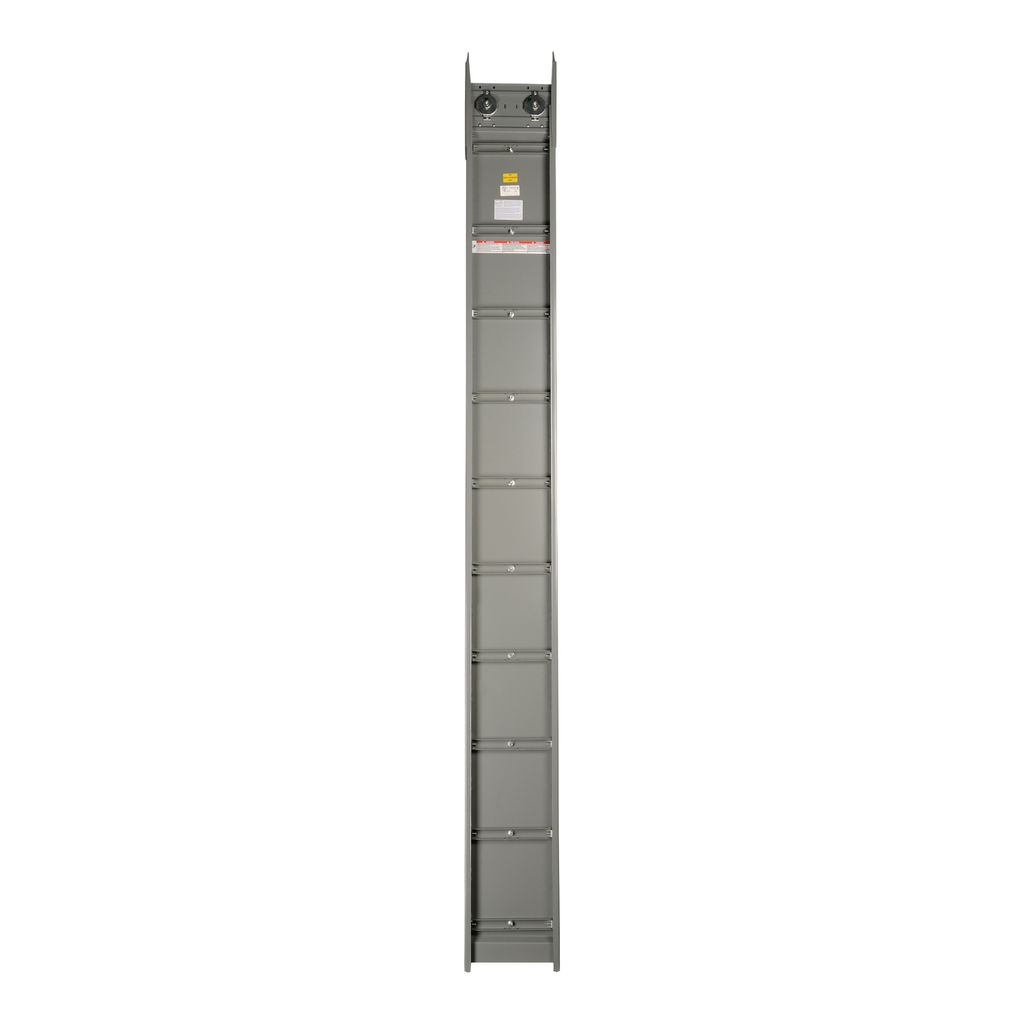

Mayer-DDS-Straight length, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, integral ground bus, Cu, plug in, 10ft [TAA]-1
  • Country of Origin: USA
  • Warranty Length: 18 mth
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line's plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busw
QTY
  • Product Description
  • Features
  • Specifications
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line's plug-in busway has options from 225A to 5000A with aluminum or copper conductors; its feeder busway from 800A to 5000A. I-Line busw
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm.
  • Carbon Footprint Of The Installation Phase A5
    • 8.183769210787128
    • 8 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 154 kg CO2 eq.
    • 154.47008177613418
  • Standards
    • CSA C22.2 No 27:1997
    • IEC 61439-2
    • UL 857
  • Ue Rated Operational Voltage
    • 600 V AC
  • Material
    • copper: busbar
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 305 kg CO2 eq.
    • 305.2990779894192
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Contractor
    • OEM - Control Panelbuilder
    • Panel Builder
    • System Integrator
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 2 065 kg CO2 eq.
    • 2065.1360322144
  • Persona Type Ids
    • LC
    • OM8
    • PB
    • SI
  • Carbon Footprint Of The Distribution Phase A4
    • 150.40549131541124
    • 150 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Physical Attributes
    • Trunking Length : 10 ft
  • Conformance Attributes
    • Product Certifications : UL listed file E22182
  • Complementary Attributes
    • Line Rated Current : 800 A
    • Short Circuit Withstand : 50 kA
  • Important Information Attributes
    • B2B Bullet Point 1 : Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor.
    • B2B Bullet Point 2 : Part of a family of compatible lengths and fittings for flexible design choices
    • B2B Bullet Point 3 : Sandwich-type construction for improved voltage drop
    • B2B Bullet Point 4 : Rated up to 600V, up to 5000A for copper conductors and 4000A for aluminum
    • B2B Bullet Point 5 : Rated for 100% continuous current
    • B2B Bullet Point 6 : 3 pole and 4 pole full neutral configurations
    • B2B Bullet Point 7 : This product is TAA,BAA via COTS compliant.
    • Local Data Status : Publishable
    • Local Publishable Date : 9/30/2025
    • Manufacturing Carbon Footprint : 305.299078
    • Distribution Carbon Footprint : 150.4054913
    • Installation Carbon Footprint : 8.183769211
    • Use Carbon Footprint : 2065.136032
    • End Of Life Carbon Footprint : 154.4700818
    • Legacy WEEE Scope : In
    • WEEE Product Category : 5
    • Scope Perimeter : Outside of Europe
    • EOLI Availability Display : No need of specific recycling operations
    • Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
    • Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
    • Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
    • ROHS Eur In Scope : Yes
    • ROHS Eur Status : Compliant
    • ROHS Eur Conformity Date : 1913
    • ROHS Eur Full Compliance Status : Compliant
    • ROHS Eur Full Compliance Status Id : COMPLIANT
    • China ROHS Label : 1
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : No
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • WD Status : 5 - INITIALIZED WITH DataSCAN OK (Migration)
    • Tier Id : 2
    • Tier : 2
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Device Application : plug-in
    • Package Weight Lbs : 75.614 kg
    • Phase : 3 phase
    • Product Availability : Non-Stock - Not normally stocked in distribution facility
    • Product Or Component Type : straight length
    • Protection Type : 50 percent capacity integral ground bus
    • Range Of Product : I-Line
    • Returnability : Yes
    • Short Circuit Withstand : 50 kA
    • Sustainable Packaging : No
    • Total Lifecycle Carbon Footprint : 2 683 kg CO2 eq.
    • Wiring Configuration : 4-wire
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 2683.494453
  • General Attributes
    • Phase : 3 phase
    • Product Or Component Type : straight length
    • Range Of Product : I-Line
  • Environment Attributes
    • ROHS Exemption Information : Yes
    • China ROHS Url : https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfRoHSChina&pid=352517&lang=en-us
    • Take Back : No
    • Reach Free Shvc : Yes
    • Recycled Metal Content At Cr Level : 0%
    • China ROHS Regulation : X
    • Toxic Heavy Metal Free : Yes
    • Mercury Free : Yes
    • Carbon Footprint : 2683.494453
    • Environmental Disclosure : ENVPEP2412023_V1
    • Eu Rohs Directive : Compliant
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : No
    • Reach Free Of Svhc : Yes
    • Reach Regulation : Free of Substances of Very High Concern above the threshold
  • Contractual Warranty Attributes
    • Warranty Period : 18 months
    • Warranty : 18 months
  • Specifications
    • Country of Origin : United States
    • Compliance : TAA | BAA via COTS
