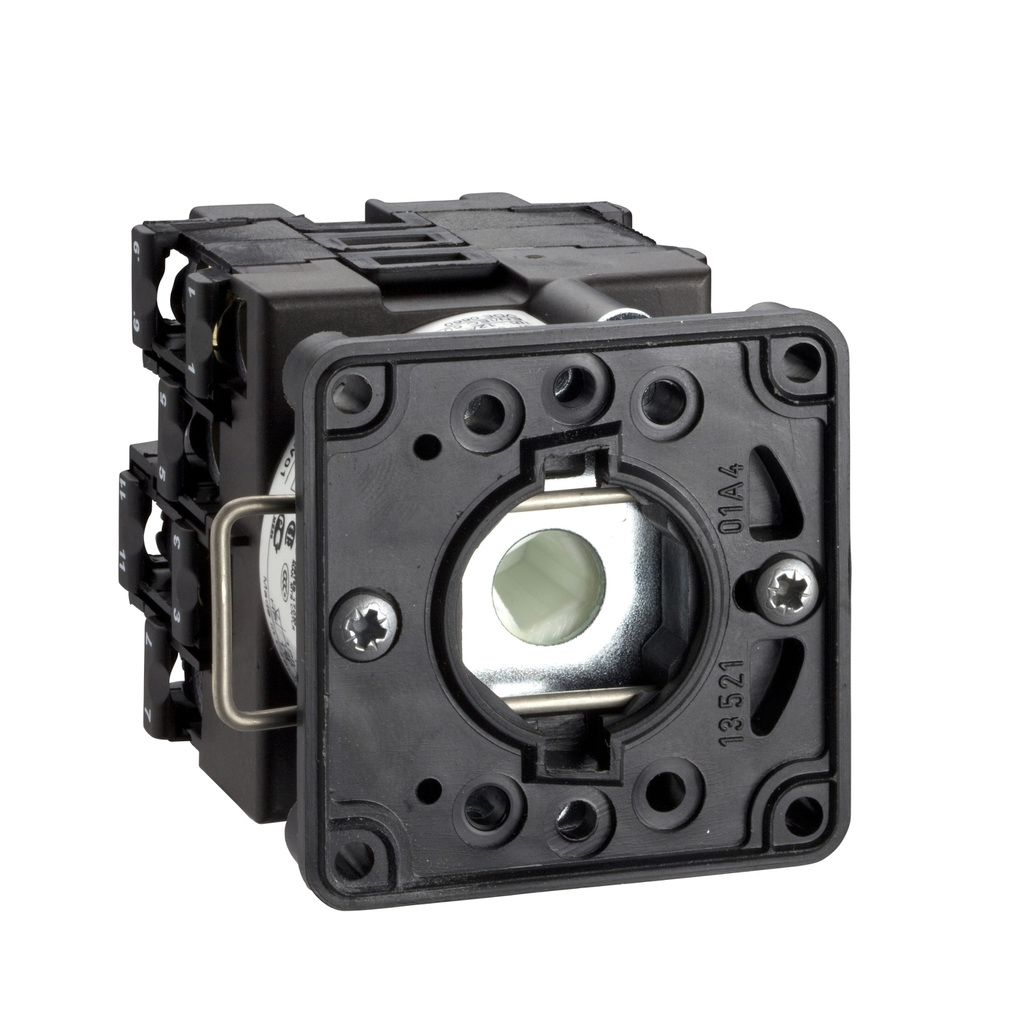

This product is part of the Harmony K1, K2 range, an offer of Ø 22mm, plastic, 1 pole, position 0, 45°, 12A. It is a Cam switch body. This Cam switch body operates with 45° switching angle. It provides a fixing mode of 22mm hole. It has 1 pole, position 0 mechanism.

• Prop 65
• WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

• Conformance Attributes
• Product Certifications : CSA 240 V 1 hp 1 phase, CSA 240 V 1 hp 1 phase, CSA 240 V 1 hp 1 phase, CSA 240 V 1 hp 1 phase, CSA 240 V 3 hp 3 phase 2, CSA 240 V 3 hp 3 phase 2, CSA 240 V 3 hp 3 phase 2, CSA 240 V 3 hp 3 phase 2, CSA 240 V 3 hp 3 phase 2, UL 240 V 1 hp 3 phase, UL 240 V 1 hp 3 phase, UL 240 V 1 hp 3 phase, UL 240 V 1 hp 3 phase, UL 240 V 0.33 hp 1 phase 2, UL 240 V 0.33 hp 1 phase 2, UL 240 V 0.33 hp 1 phase 2, UL 240 V 0.33 hp 1 phase 2, UL 240 V 0.33 hp 1 phase 2
• Standards : CENELEC EN 50013, EN/IEC 60947-3 power circuit, EN/IEC 60947-3 power circuit, EN/IEC 60947-5-1 control circuit, EN/IEC 60947-5-1 control circuit
• Complementary Attributes
• Maximum Operating Rate : 8333 cyc/mn AC-15, 8333 cyc/mn AC-15, 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-21, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-23, 2.5 cyc/mn AC-3, 2.5 cyc/mn AC-3
• Rated Operational Power In W : 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 10500 W AC-21, 500 - 660 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 690 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 4800 W AC-21, 230 V 3 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 600 W AC-3, 230 V 1 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3, 8300 W AC-21, 400 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1100 W AC-3, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-23A, 230 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 1 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 400 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 500 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 1500 W AC-3, 690 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 400 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3, 2200 W AC-23A, 500 V 3 phase IEC 947-3
• IE Rated Operational Current AC : 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3
• UI Rated Insulation Voltage : 690 V 3)IEC 60947-1, 690 V 3)IEC 60947-1, 690 V 3)IEC 60947-1
• UIMP Rated Impulse Withstand Voltage : 4 kV in isolating function, 4 kV in isolating function, 6 kV IEC 947-1, 6 kV IEC 947-1
• Important Information Attributes
• Persona Type Ids : BM9, EU, LC, OM, OM8, PB, SC, SI, VR
• Persona Type Names : Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
• Market Segmentation Id : COMMERCIAL, INDUSTRIAL
• Market Segmentation : Commercial, Industrial
• Electrical Connection : captive screw clamp terminals flexible 2 x 1.5 mm², captive screw clamp terminals flexible 2 x 1.5 mm², captive screw clamp terminals flexible 2 x 1.5 mm², captive screw clamp terminals solid 1 x 2.5 mm², captive screw clamp terminals solid 1 x 2.5 mm², captive screw clamp terminals solid 1 x 2.5 mm²
• Electrical Durability : 1000000 cycles AC-15, 1000000 cycles AC-15, 1000000 cycles AC-21, 1000000 cycles AC-21, 500000 cycles AC-23, 500000 cycles AC-23, 500000 cycles AC-3, 500000 cycles AC-3
• Electrical Shock Protection Class : class II conforming to IEC 536, class II conforming to IEC 536, class II conforming to NF C 20-030, class II conforming to NF C 20-030
• Shock Resistance : 30 gn IEC 68-2-27, 30 gn IEC 68-2-27
• Short Circuit Protection : 16 A cartridge fuse gG, 16 A cartridge fuse gG, 16 A cartridge fuse gG, 16 A cartridge fuse gG
• Vibration Resistance : 5 gn 10-150 Hz)IEC 68-2-6, 5 gn 10-150 Hz)IEC 68-2-6, 5 gn 10-150 Hz)IEC 68-2-6
• IE Rated Operational Current AC : 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 1 A 500 V AC-15 IEC 947-5-1, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 4.8 A 400 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 5.6 A 230 V AC-23A 3 phase IEC 947-3, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 2 A 400 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 3 A 230 V AC-15 IEC 947-5-1, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 1.8 A 690 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 500 V AC-3 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 2.8 A 690 V AC-23A 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.3 A 400 V AC-3 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 3.8 A 500 V AC-23A 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3, 4.6 A 230 V AC-3 3 phase IEC 947-3
• Carbon Footprint Of The Distribution Phase A4 : 0.06355992538133462, 0.1 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4 : 0.1 kg CO2 eq., 0.11072460638041513
• Carbon Footprint Of The Installation Phase A5 : 0.015606792033897914, 0 kg CO2 eq.
• Carbon Footprint Of The Manufacturing Phase A1 To A3 : 2 kg CO2 eq., 1.6571521256398254
• Carbon Footprint Of The Use Phase B2 B3 B4 B6 : 0 kg CO2 eq., 0
• Local Data Status : Publishable
• Local Publishable Date : 2025-11-25
• Legacy WEEE Scope : In
• Scope Perimeter : At least in Europe
• EOLI Availability Display : No need of specific recycling operations
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• ROHS EUR In Scope : No
• ROHS EUR Status : Compliant
• ROHS EUR Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• ROHS EUR Full Compliance Status Id : PRO_ACTIVE_COMPLIANCE
• China ROHS In Scope : Yes
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : No
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• WD Status : 1 - GSC certified
• Function Option Id : STANDARD
• Function Option : Standard
• Bezel Material : plastic
• Cam Switch Function : OFF-ON switch
• Compatibility Code : K1A
• Component Name : K1
• Off Position : with Off position
• Package Weight Lbs : 90.0 g
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : cam switch body
• Range Of Product : Harmony K
• Returnability : Yes
• Sub Assembly Composition : contact blocks + fixing plate
• Sustainable Packaging : No
• Switching Angle : 45 °
• Switching Positions : right: 0° - 45°
• Total Lifecycle Carbon Footprint : 2 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Pep Code : ENVPEP2312055EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• Functional Unit Description : The main purpose of the Harmony K1/K2 series of cam switches is to directly control simple machines and to provide process control in industry and buildings. This voltmeter phase switch offers the maximum mechanical and electrical robustness of its class for prolonged operation without maintenance. Its high IP allows for handling of panel operations in very dusty and wet environments including outdoors.
• Functional Unit Unit : unit
• Product Kit Identifier : N
• Environment Attributes Main
• EU ROHS Directive : Compliant​, Pro-active compliance (Product out of EU RoHS legal scope)
• Reach Regulation : Free of Substances of Very High Concern above the threshold, Free of Substances of Very High Concern above the threshold
• ROHS Exemption Information : Yes
• Take Back : No
• Reach Free SHVC : Yes
• Recycled Metal Content At Cr Level : 0 %
• China ROHS Regulation : X
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 1.8470434494354728
• Environmental Disclosure : ENVPEP2312055EN
• Packaging Made With Recycled Cardboard : No
• Packaging Without Single Use Plastic : No
• Reach Free Of SVHC : Yes
• Pep Code : ENVPEP2312055EN
• Pep Verification Date : 2025-06-30
• PCR Version : PEP-PCR-ed4-2021 09 06
• PSR Version : PSR-0005-ed3.1-EN-2023 12 08
• Type Of Verification For The Pep : Independent internal review
• General Attributes
• Product Or Component Type : cam switch body
• Range Of Product : Harmony K
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
