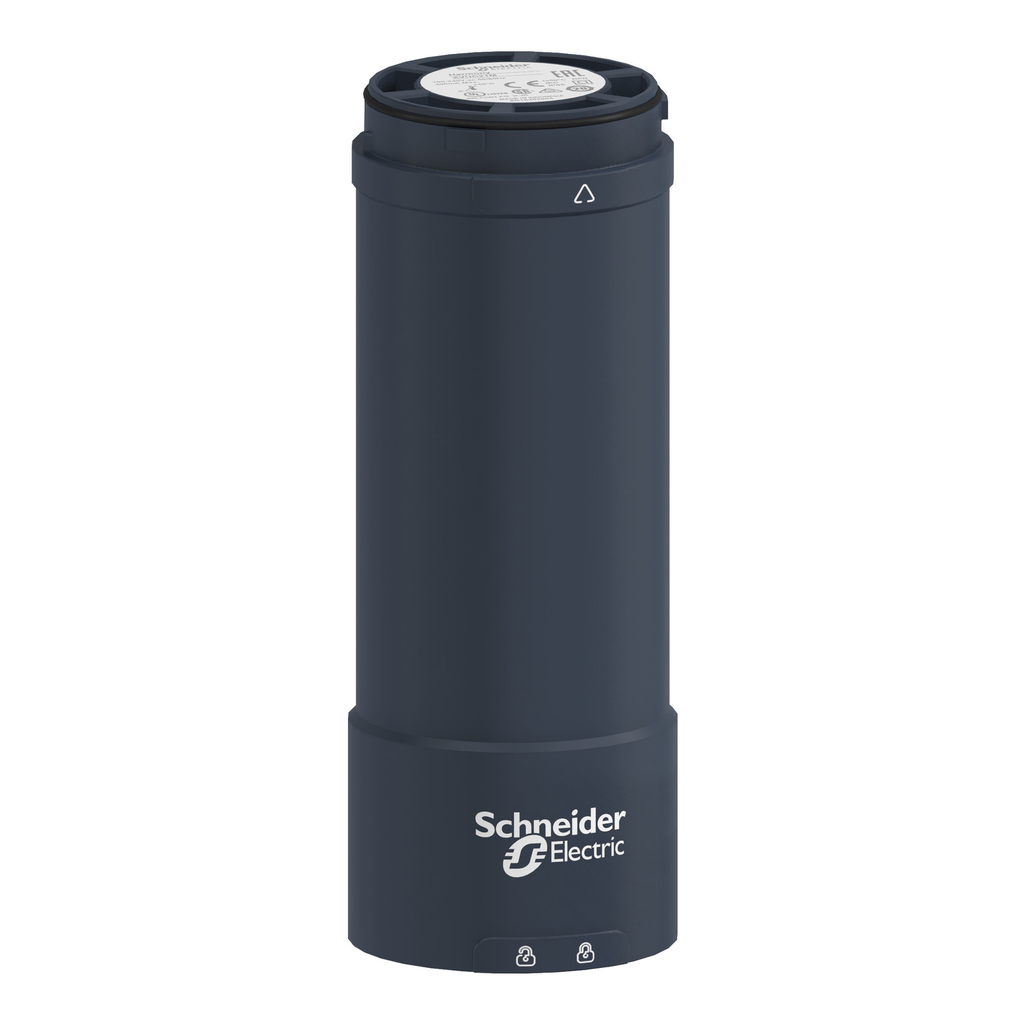

Base unit with top cover for modular tower lights, Harmony XVU, black, 60mm, PNP, 100...240V AC

XVU BODY AC BLACK PNP

SQDXVUC21MP XVUC21MP 3606480616747
86.63 / EA
http://schema.org/OutOfStock
Mayer-DDS-Base unit with top cover for modular tower lights, Harmony XVU, black, 60mm, PNP, 100...240V AC-3
  • Country of Origin: Indonesia
  • Length: 5.94 in
This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of yo
QTY
  • Product Description
  • Features
  • Specifications
This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of yo
  • Prop 65
    • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
  • Carbon Footprint Of The Installation Phase A5
    • 0.4343909149
    • 0.4 kg CO2 eq.
  • Carbon Footprint Of The End Of Life Phase C1 To C4
    • 0.4 kg CO2 eq.
    • 0.3667552538
  • Material
    • PBT (polybutylene terephthalate) V-0 UL 94
    • ABS (acrylonitrile butadiene-styrene) V-0 UL 94
    • ABS (acrylonitrile butadiene-
  • Carbon Footprint Of The Manufacturing Phase A1 To A3
    • 3 kg CO2 eq.
    • 2.6560088977
  • Electrical Shock Protection Class
    • class II on base unit IEC 61140
  • Accessories
    • XVUC23
    • XVUC24
    • XVUC25
    • XVUC26
    • XVUC27
    • XVUC28
    • XVUC29
    • XVUC29P
    • XVUC43
    • XVUC44
  • Market Segmentation
    • Commercial
    • Industrial
  • Persona Type Names
    • Charge Point Operator
    • End User
    • Contractor
    • Original Equipment Manufacturer
    • OEM - Control Panelbuilder
    • Panel Builder
    • Electrician
    • System Integrator
    • IT Channel Partner
  • Carbon Footprint Of The Use Phase B2 B3 B4 B6
    • 48 kg CO2 eq.
    • 48.1541723744
  • Persona Type Ids
    • BM9
    • EU
    • LC
    • OM
    • OM8
    • PB
    • SC
    • SI
    • VR
  • Us Rated Supply Voltage
    • 100...240 V AC +/- 10 %
  • Carbon Footprint Of The Distribution Phase A4
    • 0.0549206814
    • 0.1 kg CO2 eq.
  • Market Segmentation Id
    • COMMERCIAL
    • INDUSTRIAL
  • Kit Composition
    • base unit PNP)
    • cover
  • Product Certifications
    • CE
    • CSA
    • UL
    • CCC
  • Physical Attributes
    • Housing Color : black
  • Important Information Attributes
    • Local Data Status : Publishable
    • Local Publishable Date : 2024-02-10
    • Etim 10 : EC001152
    • Manufacturing Carbon Footprint : 2.6560088977
    • Distribution Carbon Footprint : 0.0549206814
    • Installation Carbon Footprint : 0.4343909149
    • Use Carbon Footprint : 48.1541723744
    • End Of Life Carbon Footprint : 0.3667552538
    • Legacy Weee Scope : Out
    • Weee Product Category : 5
    • Scope Perimeter : At least in Europe
    • Eoli Availability Display : Yes
    • End Of Life Doc Ref : ENVEOLI2308032EN
    • Rohs Eur In Scope : No
    • Rohs Eur Status : Compliant with Exemptions
    • Rohs Eur Conformity Date : 1930
    • Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
    • China Rohs In Scope : Yes
    • China Rohs Label : 5
    • Green Premium Status For Reporting : Green Premium product
    • With Recycled Cardboard : Yes
    • Without Single Use Plastic : Yes
    • Product Contributes To Saved And Avoided Emissions : No
    • Return Indicator : Y
    • Wd Status : 1 - GSC certified
    • Tier Id : 1
    • Tier : 1
    • Function Option Id : STANDARD
    • Function Option : Standard
    • Assembly Style : customer assembly, up to 5 units
    • Component Name : XVU
    • Current Consumption : <= 400 mA
    • Fixing Mode : direct or tube fixing
    • Housing Color : black
    • Mounting Diameter : 60 mm
    • Package Weight Lbs : 439.984 g
    • Product Availability : Stock - Normally stocked in distribution facility
    • Product Or Component Type : modular tower light
    • Range Of Product : Harmony XVU
    • Returnability : Yes
    • Sustainable Packaging : Yes
    • Total Lifecycle Carbon Footprint : 52 kg CO2 eq.
    • Vibration Resistance : 2 gn
    • Carbon Footprint Kg Co2 Eq Total Life Cycle : 51.6662481222
    • Relationshiptype : Compatible relationship
  • General Attributes
    • Product Or Component Type : modular tower light
    • Range Of Product : Harmony XVU
  • ETIM
    • ETIM 8 : EC001152
    • ETIM 9 : EC001152
  • Environment Attributes
    • Take Back : No
    • China Rohs Regulation : X
    • Mercury Free : Yes
    • Carbon Footprint : 51.6662481222
    • Ambient Air Temperature For Operation : 0-50 °C
    • Ambient Air Temperature For Storage : -20-65 °C
    • Circularity Profile : ENVEOLI2308032EN
    • Environmental Disclosure : ENVPEP2308032EN
    • Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
    • Ip Degree Of Protection : IP65
    • Packaging Made With Recycled Cardboard : Yes
    • Packaging Without Single Use Plastic : Yes
  • Specifications
    • Country of Origin : Indonesia
    • Length : 5.94 in
