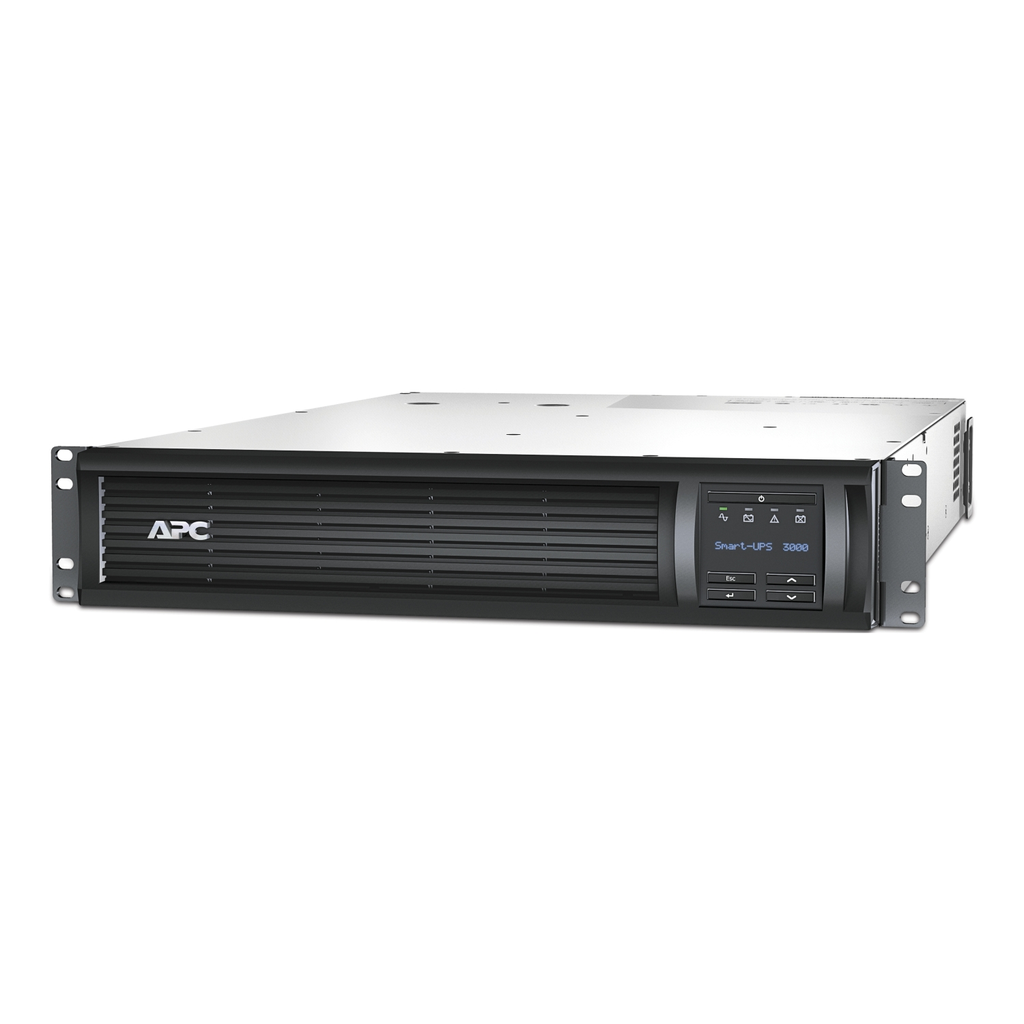

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 3kVA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. I

• Input Connection Type
• NEMA L6-20P
• Output Frequency Sync To Mains
• 50/60 Hz +/- 3 Hz sync to mains
• Prop 65
• WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 20.2984026568
• 20 kg CO2 eq.
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 5 kg CO2 eq.
• 4.7556936622
• Provided Equipment
• CD with software
• Documentation CD
• Rack mounting hardware
• Rack Mounting support rails
• Smart UPS signalling RS-232 cable
• USB cable
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 1 715 kg CO2 eq.
• 1715.1928299177
• Size Ups Version
• Internetworking
• Server
• Telecom
• Battery Charge Power Watts
• 188 W rated
• Market Segmentation
• Residential
• Commercial
• Industrial
• Persona Type Names
• Consumer
• Panel Builder
• Electrician
• IT Channel Partner
• Alarm
• alarm when on battery : distinctive low battery alarm : configurable delays
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 1 222 kg CO2 eq.
• 1221.9412223393
• Communication Options
• AP9613
• AP9620
• Persona Type Ids
• EUA
• PB
• SC
• VR
• Carbon Footprint Of The Distribution Phase A4
• 0.0178643968
• 0 kg CO2 eq.
• Battery Power In Vah
• 566 VAh runtime
• Input Frequency
• 50/60 Hz +/- 3 Hz auto-sensing
• Market Segmentation Id
• RESIDENTIAL
• COMMERCIAL
• INDUSTRIAL
• Efficiency At Full Load
• 131...268 V adjustable
• 141...255 V
• Output Connection Type
• 2 NEMA L6-20R

• Communications & Management Attributes
• Communication Port Type : SmartSlot
• Control Panel : Multi-function LCD status and control console
• Free Slots : 1
• Physical Attributes
• Cable Length : 8 ft
• Complementary Attributes
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Maximum Configurable Power In Va : 3000 VA
• Rated Power In Va : 3000 VA
• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-08-28
• Pre Comm Date : 2011-07-05
• Etim 10 : EC000382
• Html Descr : APC Smart-UPS 3000VA RM 2U LCD 208VAPC Smart-UPS,2700 Watts /3000 VA,Input 208V /Output 208V, Interface Port USB, Rack Height 2 UIncludes: CD with software, Documentation CD, Rack mounting hardware, Rack Mounting support rai
• Manufacturer : American Power Conversion Corp. (APC)
• Baan Price : 8996.4
• Baan Currency : USD
• Device Type : UPS - Network and Server
• Serviceability : Yes
• Traceability : Yes
• Field Service Division : SPIBS
• Average Life Duration : 5 year(s)
• Preventive Maintenance : 0
• Cr Shelf Life : 12
• Spare Used In Spare Kit : No
• Spare Part Order Method : ERP to ERP
• Spare Part Order Method Direction : Consult local ERP Setup
• Service Catalog Item : Finished good
• Manufacturing Carbon Footprint : 1715.1928299177
• Distribution Carbon Footprint : 0.0178643968
• Installation Carbon Footprint : 20.2984026568
• Use Carbon Footprint : 1221.9412223393
• End Of Life Carbon Footprint : 4.7556936622
• Legacy Weee Scope : In
• Weee Product Category : 4
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1612029_EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1850
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : No
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : L - LOB initialized
• Dangerous Goods Code : BATTERIES WET NON SPILLABLE (ELECTRIC STORAGE or LEAD ACID)
• Tier Id : 2
• Tier : 2
• Function Option Id : STANDARD
• Function Option : Standard
• Curve Equation : efficiency
• Curve Fixed Loss : 0.0046
• Curve Load Maximum : 100 %
• Curve Load Minimum : 1 %
• Curve Proportional Loss : 0
• Curve Square Loss : 0.0115
• Curve Test Cond Id : Curve fit of data measured in accordance with the ENERGY STAR Test Method for Uninterruptible Power Supplies. All measurements taken in normal mode(s), at typical environmental conditions, with 208V/60Hz electrical input and balanced resistive load (PF =
• Curve X Axis Maximum : 100 %
• Curve X Axis Minimum : 0 %
• Curve X Axis Title : load
• Curve X Axis Units : percentage
• Curve Y Axis Maximum : 100 %
• Curve Y Axis Minimum : 50 %
• Curve Y Axis Title : efficiency
• Curve Y Axis Units : percentage
• Energy Efficiency Optimized : Energy efficient product
• Equipment Protection Policy : Lifetime : $150000
• Extendable Run Time : 0
• Graph Display : 1
• Kw Rating : 2700 W
• Liquid Electrolyte Value : 0
• Maximum Configurable Power In Va : 3000 VA
• Mounting Location : front
• Mounting Mode : rack-mounted
• Mounting Preference : no preference
• Number Of Cables : 1
• Number Of Power Module : 0
• Number Of Power Module Filled Slots : 0
• Number Of Power Module Free Slots : 0
• Number Of Rack Unit : 2U
• Number Of Tare Power : 98 W
• Package Weight Lbs : 51.7 kg
• Performance Multiplier : 1
• Product Availability : Non-Stock - Not normally stocked in distribution facility
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS
• Rbc Quantity : 1
• Redundant : No
• Returnability : Yes
• Show Note Op Temperature : No
• Surge Energy Rating : 320 J
• Sustainable Packaging : No
• Topology : Line Interactive
• Total Lifecycle Carbon Footprint : 2 962 kg CO2 eq.
• Transfer Time : 4ms typical : 8ms maximum
• Two Post Mountable : 0
• Typical Recharge Time : 3 h
• Ups Size : S
• Usb Compatible : No
• Value Multiplier : 1
• Waveform Type : Sine wave
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Max Configurable Power Watts : 2700 W
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 2962.2060129728
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : uninterruptible power supply (UPS)
• Range Of Product : Smart-UPS
• ETIM
• ETIM 8 : EC000382
• ETIM 9 : EC000382
• Output Attributes
• Harmonic Distortion : Less than 5%
• Output Voltage : 208 V
• Surge Protection And Filtering Attributes
• Surge Energy Rating : 320 J
• Environment Attributes
• Take Back : No
• Mercury Free : Yes
• Optimized Energy Efficiency : Energy efficient product
• Carbon Footprint : 2962.2060129728
• Ambient Air Temperature For Operation : 0-40 °C
• Ambient Air Temperature For Storage : -15-45 °C
• Circularity Profile : ENVEOLI1612029_EN
• Environmental Disclosure : ENVPEP1612029_EN
• Eu Rohs Directive : Compliant with Exemptions
• Online Thermal Dissipation : 348 Btu/h
• Operating Altitude : 0...10000 ft
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : No
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Relative Humidity : 0-95 %
• Storage Altitude : 0-50000 ft
• Storage Relative Humidity : 0-95 %
• Contractual Warranty Attributes
• Warranty Period : 3 years repair or replace (excluding battery) and 2 years for battery
• Warranty : 3 years repair or replace (excluding battery) and 2 years for battery
• Input Attributes
• Main Input Voltage : 208 V
• Specifications
• Country of Origin : Philippines
• Height : 3.39 in
• Width : 18.9 in
• Depth : 26.89 in
• Batteries & Runtime Attributes
• Removable Battery : USER_REPLACEABLE
• Battery Curve : C
• Battery Life : 3-5 year(s)
• Battery Slots Empty : 0
• Battery Type : Lead-Acid battery
• Included Battery Modules : 0
• Replacement Battery : RBC43
