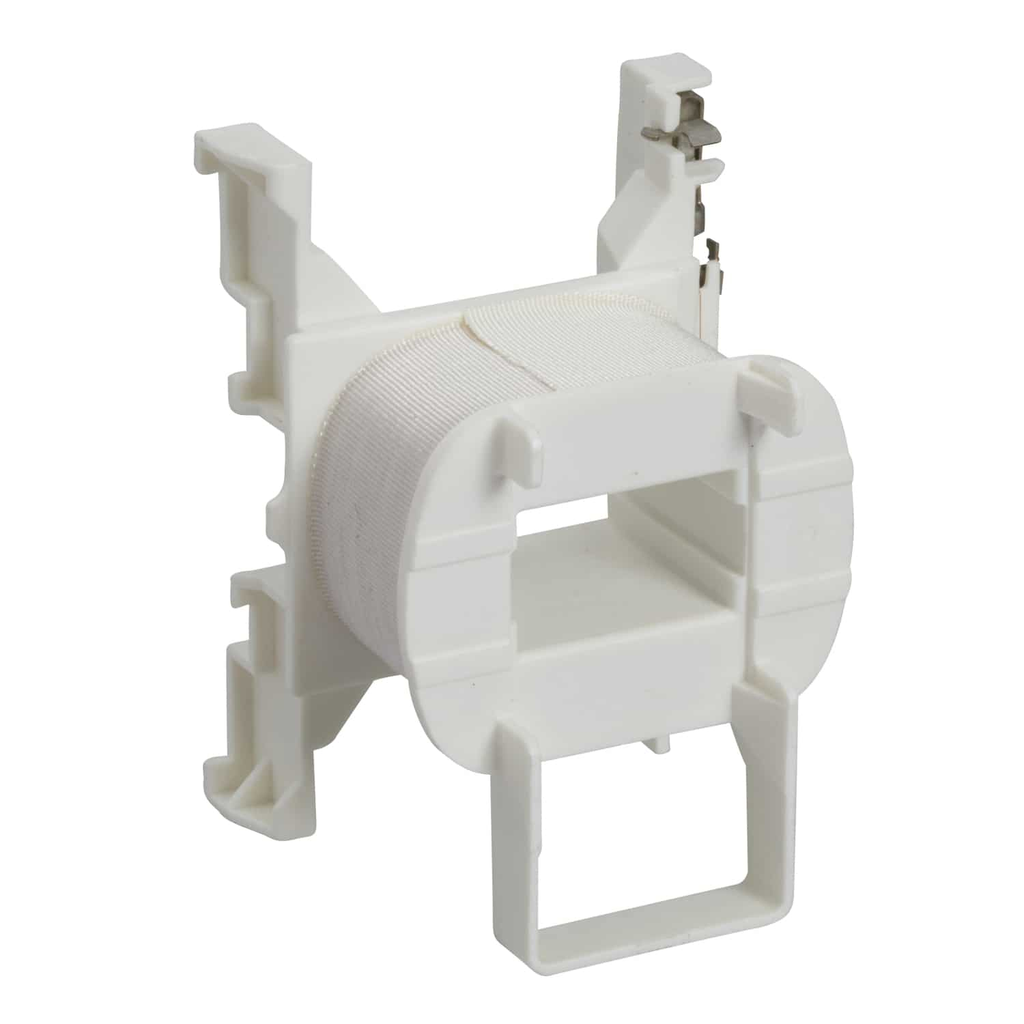

TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 480 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and

• Uc Control Circuit Voltage
• 480 V AC 50/60 Hz
• Heat Dissipation
• 2-3 W 50/60 Hz
• Maximum Operating Rate
• 3600 cyc/h 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Control Circuit Type
• AC 50/60 Hz
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Average Resistance
• 2398 Ohm 20 °C
• Control Circuit Voltage Limits
• drop-out: 0.3...0.6 Uc at 50/60 Hz (at <60 °C)
• operational: 0.8...1.1 Uc at 50 Hz (at <60 °C)
• operational: 0.8...
• Hold In Power Consumption In Va
• 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Inrush Power In Va
• 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos p
• Product Compatibility
• LC1DT20...DT40
• CAD
• LC1D09...D38

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-30
• Etim 10 : EC001043
• Html Descr : TeSys D Contactor coil LXD1, 480 V AC 50/60 Hz for 9… 38 A contactor
• Manufacturer : Schneider Electric
• Baan Price : 102.04
• Baan Currency : USD
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Legacy Weee Scope : Out
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1501004
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : No
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1905
• Rohs Eur Full Compliance Status : Pro-active compliance (Product out of EU RoHS legal scope)
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : without built-in suppressor module
• Device Short Name : LXD1
• Inductance Of Closed Circuit : 87 H
• Mechanical Durability : 15 Mcycles
• Package Weight Lbs : 70.0 g
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor coil
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Sustainable Packaging : Yes
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : contactor coil
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC001043
• ETIM 9 : EC001043
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Ambient Air Temperature For Operation : -5-60 °C
• Circularity Profile : ENVEOLI1501004
• Environmental Disclosure : ENVPEP1501004
• Eu Rohs Directive : Pro-active compliance (Product out of EU RoHS legal scope)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
