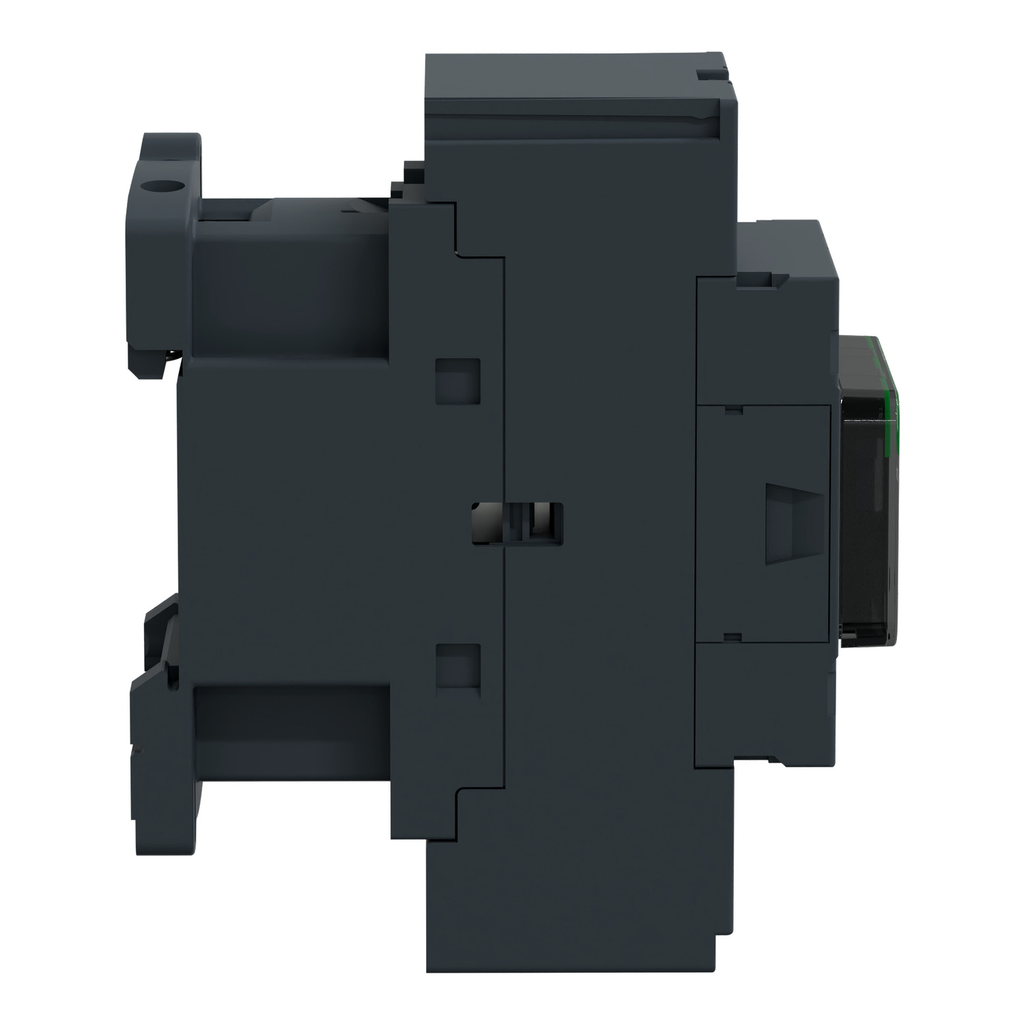

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). They can be used to create motor starters for almost any type of application. It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-

• Uc Control Circuit Voltage
• 24 V DC
• Insulation Resistance
• > 10 MOhm for signalling circuit
• Connections Terminals
• power circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexible without cable end
• power circuit: spring terminals 1 2.5-2.5 mm² - cable stiffness: flexi
• Mounting Support
• plate
• rail
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947
• Climatic Withstand
• IACS E10 exposure to damp heat
• IEC 60947-1 Annex Q category D exposure to damp heat
• Power Dissipation Per Pole
• 1.56 W AC-1
• 0.2 W AC-3
• 0.2 W AC-3e
• Maximum Operating Rate
• 3600 cyc/h at 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.04070520226073894
• Non Overlap Time
• 1.5 ms on de-energisation between NC and NO contact
• 1.5 ms on energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 1.2880458349287582
• 1 kg CO2 eq.
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• IEC 60335-1:Clause 30.2
• IEC 60335-2-40:Annex JJ
• UL 60335-2-40:Annex JJ
• CSA C22.2 No 60947-4-1
• Ue Rated Operational Voltage
• power circuit <= 690 V AC 25...400 Hz
• power circuit <= 300 V DC
• Ui Rated Insulation Voltage
• power circuit 690 V IEC 60947-4-1
• power circuit 600 V CSA
• power circuit 600 V UL
• signalling
• Operating Time
• 63 ±15 % ms closing
• 20 ±20 % ms opening
• Control Circuit Type
• DC standard
• Ip Degree Of Protection
• IP20 front face IEC 60529
• Minimum Switching Voltage
• 17 V for signalling circuit
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 3 kg CO2 eq.
• 2.6596552952376262
• Protective Treatment
• THIEC 60068-2-30
• Average Impedance
• 2.5 mOhm - Ith 16 A 50 Hz for power circuit
• Accessories
• LAD9V2
• LAD9R1V
• LAD9R1
• LAD9ET1S
• Electrical Durability
• 0.6 Mcycles 25 A AC-1 <= 440 V
• 2 Mcycles 9 A AC-3 <= 440 V
• 2 Mcycles 9 A AC-3
• Maximum Horse Power Rating
• 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors
• 2 hp at 2
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Inrush Power In W
• 5.4-5.4 W 20 °C)
• Fire Resistance
• 850 °C IEC 60695-2-1
• Contactor Application
• resistive load
• motor control
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 32 kg CO2 eq.
• 32.48400000000001
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Auxiliaries
• LAD6K10B
• LADN223
• LADN403
• LADN113
• LADN203
• Safety Reliability Level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13
• Carbon Footprint Of The Distribution Phase A4
• 0.14699424706398806
• 0.1 kg CO2 eq.
• Ith Conventional Free Air Thermal Current
• 10 A (at 60 °C) for signalling circuit
• 16 A (at 60 °C) for power circuit
• Irms Rated Making Capacity
• 250 A at 440 V for power circuit conforming to IEC 60947
• 140 A AC for signalling ci
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 4 Gn, 5...300 Hz)
• vibrations contactor closed 4
• Minimum Switching Current
• 5 mA for signalling circuit
• Motor Power Kw
• 2.2 kW at 220...230 V AC 50/60 Hz (AC-3)
• 4 kW at 380...400 V AC 50/60 Hz (AC-3)
• 4 kW at 38
• Control Circuit Voltage Limits
• 0.1...0.25 Uc (-40-70 °C):drop-out DC
• 0.7...1.25 Uc (-40-60 °C):operational DC
• 0.7...1.25 Uc (-40-6
• Utilisation Category
• AC-1
• AC-4
• AC-3
• AC-3e
• Hold In Power Consumption In W
• 5.4-5.4 W 20 °C
• Ie Rated Operational Current
• 9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• 9 A (at <60 °C) at <= 440 V AC AC-3 fo
• Icw Rated Short Time Withstand Current
• 105 A 40 °C - 10 s for power circuit
• 210 A 40 °C - 1 s for power circuit
• 210 A 40 °C - 1 s for power circui
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Associated Fuse Rating
• 10 A gG for signalling circuit conforming to IEC 60947-5-1
• 25 A gG at <= 690
• Permissible Ambient Air Temperature Around The Device
• -40-60 °C
• 60-70 °C with derating
• Rated Breaking Capacity
• 250 A at 440 V for power circuit conforming to IEC 60947
• Product Certifications
• UL
• CCC
• CSA
• Marine
• UKCA
• EAC
• CB Scheme

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-05-31
• Etim 10 : EC000066
• Html Descr : TeSys D ContactorNumber of Poles: 3-PolesPole Contact Composition: 3 NOControl Circuit Voltage: 24V DC 50/60 HzDegree of Protection: IP20
• Manufacturer : Square D
• Baan Price : 434.57
• Baan Currency : USD
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 2.65965529523763
• Distribution Carbon Footprint : 0.146994247063988
• Installation Carbon Footprint : 4.07052022607389e-02
• Use Carbon Footprint : 32.484
• End Of Life Carbon Footprint : 1.28804583492876
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1102030EN
• Reach Full Compliance Status : Reference contains Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : CONTAINS_SVHC
• Reach Compliance Directive : Reference contains Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1929
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : built-in bidirectional peak limiting diode suppressor
• Compatibility Code : LC1D
• Contact Compatibility : M4
• Device Short Name : LC1D
• Mechanical Durability : 30 Mcycles
• Overvoltage Category : III
• Package Weight Lbs : 547.000 g
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• Returnability : Yes
• Signalling Circuit Frequency : 25...400 Hz
• Sustainable Packaging : Yes
• Time Constant : 28 ms
• Total Lifecycle Carbon Footprint : 37 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 36.61940057949112
• Relationshiptype : Compatible relationship
• Add Ons : LAD4DDL
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC000066
• ETIM 9 : EC000066
• Environment Attributes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 36.6194005794911
• Circularity Profile : ENVEOLI1102030EN
• Environmental Disclosure : ENVPEP110230EN
• Eu Rohs Directive : Compliant with Exemptions
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Regulation : Reference contains Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Height : 3.9 in
• Width : 1.77 in
• Depth : 3.74 in
