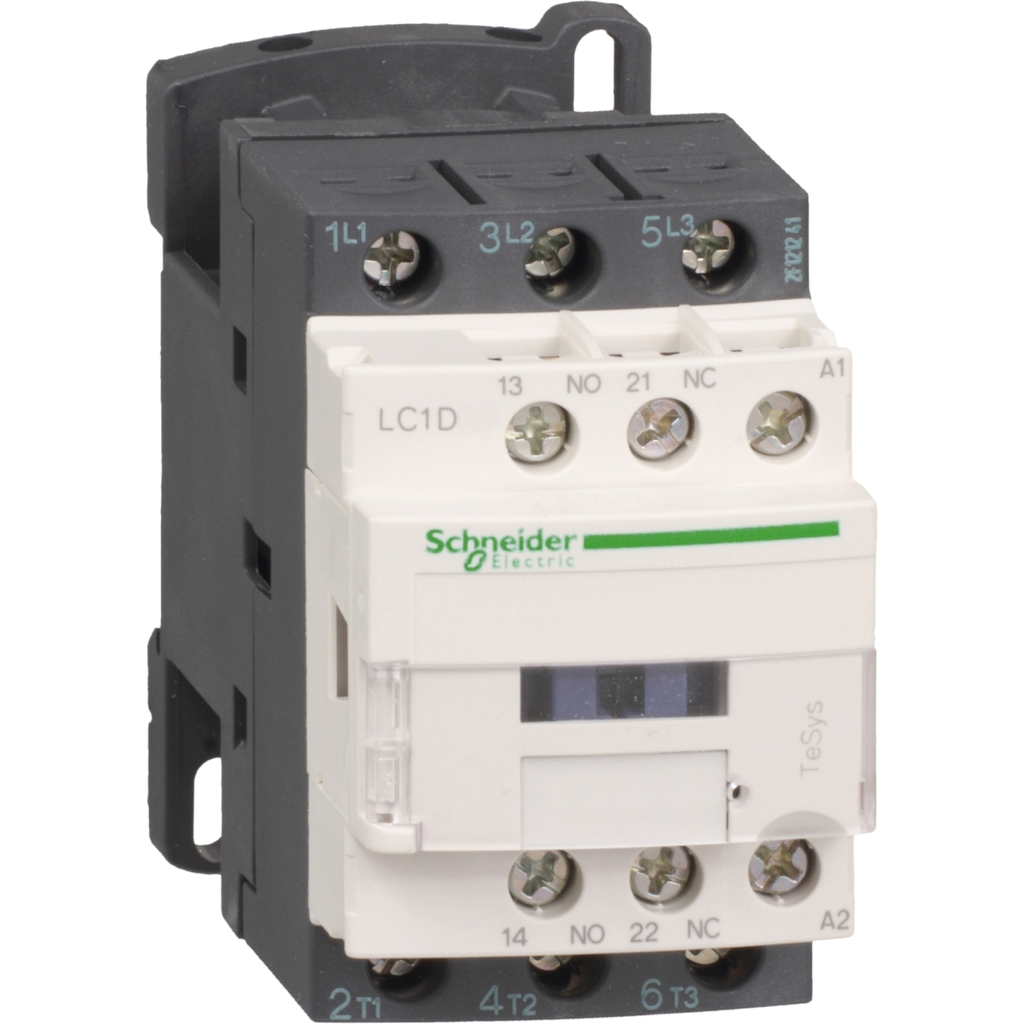

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts

• Uc Control Circuit Voltage
• 220 V AC 50/60 Hz
• Insulation Resistance
• > 10 MOhm for signalling circuit
• Heat Dissipation
• 2-3 W at 50/60 Hz
• Connections Terminals
• control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end
• control circuit: screw clamp terminals 1 1-4 mm² - cable stiffne
• Mounting Support
• plate
• rail
• Uimp Rated Impulse Withstand Voltage
• 6 kV IEC 60947
• Climatic Withstand
• IACS E10 exposure to damp heat
• IEC 60947-1 Annex Q category D exposure to damp heat
• Power Dissipation Per Pole
• 2.5 W AC-1
• 0.8 W AC-3
• 0.8 W AC-3e
• Maximum Operating Rate
• 3600 cyc/h at 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0 kg CO2 eq.
• 0.02464164910565632
• Non Overlap Time
• 1.5 ms on de-energisation between NC and NO contact
• 1.5 ms on energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 0.7992304633096612
• 0.8 kg CO2 eq.
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• EN 60947-5-1
• IEC 60947-4-1
• IEC 60947-5-1
• UL 60947-4-1
• IEC 60335-1:Clause 30.2
• IEC 60335-2-40:Annex JJ
• UL 60335-2-40:Annex JJ
• CSA C22.2 No 60947-4-1
• Ue Rated Operational Voltage
• power circuit <= 690 V AC 25...400 Hz
• power circuit <= 300 V DC
• Ui Rated Insulation Voltage
• power circuit 690 V IEC 60947-4-1
• power circuit 600 V CSA
• power circuit 600 V UL
• signalling
• Operating Time
• 12...22 ms closing
• 4...19 ms opening
• Control Circuit Type
• AC 50/60 Hz standard
• Ip Degree Of Protection
• IP20 front face IEC 60529
• Minimum Switching Voltage
• 17 V for signalling circuit
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 2 kg CO2 eq.
• 1.971174798523916
• Protective Treatment
• THIEC 60068-2-30
• Average Impedance
• 2.5 mOhm - Ith 32 A 50 Hz for power circuit
• Accessories
• LAD9V2
• LAD9R1V
• LAD9R1
• Electrical Durability
• 1.65 Mcycles 18 A AC-3 <= 440 V
• 1 Mcycles 32 A AC-1 <= 440 V
• 1.65 Mcycl
• Maximum Horse Power Rating
• 1 hp at 115 V AC 50/60 Hz for 1 phase motors
• 3 hp at 230/240 V AC 50/60 Hz
• Market Segmentation
• Commercial
• Industrial
• Persona Type Names
• End User
• Contractor
• Original Equipment Manufacturer
• OEM - Control Panelbuilder
• Panel Builder
• System Integrator
• Fire Resistance
• 850 °C IEC 60695-2-1
• Contactor Application
• resistive load
• motor control
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 18 kg CO2 eq.
• 18.143953488951734
• Persona Type Ids
• EU
• LC
• OM
• OM8
• PB
• SI
• Auxiliaries
• LADN22
• LADN11
• LADN20
• LAD8N11
• LADT2
• LADN40
• Safety Reliability Level
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 1369863 cycles contactor with nominal load EN/ISO 13
• Carbon Footprint Of The Distribution Phase A4
• 0.15315264481726687
• 0.2 kg CO2 eq.
• Tightening Torque
• power circuit 1.7 N.m screw clamp terminals flat Ø 6 mm
• power circuit 1.7 N.m screw cl
• Ith Conventional Free Air Thermal Current
• 10 A (at 60 °C) for signalling circuit
• 32 A (at 60 °C) for power circuit
• Irms Rated Making Capacity
• 140 A AC for signalling circuit conforming to IEC 60947-5-1
• 250 A DC for s
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 4 Gn, 5...300 Hz)
• vibrations contactor closed 4
• Minimum Switching Current
• 5 mA for signalling circuit
• Motor Power Kw
• 4 kW at 220...230 V AC 50/60 Hz (AC-3)
• 7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
• 7.5 kW at 380...40
• Control Circuit Voltage Limits
• 0.3...0.6 Uc (-40-70 °C):drop-out AC 50/60 Hz
• 0.8...1.1 Uc (-40-60 °C)
• Utilisation Category
• AC-1
• AC-4
• AC-3
• AC-3e
• Ie Rated Operational Current
• 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
• 18 A (at <60 °C) at <= 440 V AC AC
• Icw Rated Short Time Withstand Current
• 145 A 40 °C - 10 s for power circuit
• 240 A 40 °C - 1 s for power circuit
• 240 A 40 °C - 1 s for power circui
• Hold In Power Consumption In Va
• 7.5-7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0.3 (at 20 °C)
• 7-7 VA 50 Hz cos phi 0
• Market Segmentation Id
• COMMERCIAL
• INDUSTRIAL
• Inrush Power In Va
• 70-70 VA 60 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos phi 0.75 (at 20 °C)
• 70-70 VA 50 Hz cos p
• Associated Fuse Rating
• 10 A gG for signalling circuit conforming to IEC 60947-5-1
• 50 A gG at <= 690
• Permissible Ambient Air Temperature Around The Device
• -40-60 °C
• 60-70 °C with derating
• Rated Breaking Capacity
• 300 A at 440 V for power circuit conforming to IEC 60947
• Product Certifications
• UL
• CCC
• CSA
• Marine
• UKCA
• EAC
• CB Scheme

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-07-08
• Etim 10 : EC000066
• Html Descr : TeSys D ContactorNumber of Poles: 3-PolesPole Contact Composition: 3 NORated Operational Current: 18AControl Circuit Voltage: 220V AC 50/60 HzNon-Reversing
• Manufacturer : Schneider Electric
• Baan Price : 503
• Baan Currency : USD
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 1.97117479852392
• Distribution Carbon Footprint : 0.153152644817267
• Installation Carbon Footprint : 2.46416491056563e-02
• Use Carbon Footprint : 18.1439534889517
• End Of Life Carbon Footprint : 0.799230463309661
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI1501004
• Reach Full Compliance Status : Free of Substances of Very High Concern above the threshold
• Reach Full Compliance Status Id : NOT_CONTAINING_SVHC
• Reach Compliance Directive : Free of Substances of Very High Concern above the threshold
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant
• Rohs Eur Conformity Date : 1905
• Rohs Eur Full Compliance Status : Compliant
• China Rohs In Scope : No
• China Rohs Label : 1
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Tier Id : 1
• Tier : 1
• Function Option Id : STANDARD
• Function Option : Standard
• Coil Technology : without built-in suppressor module
• Compatibility Code : LC1D
• Contact Compatibility : M2
• Device Short Name : LC1D
• Mechanical Durability : 15 Mcycles
• Overvoltage Category : III
• Package Weight Lbs : 352.000 g
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• Returnability : Yes
• Signalling Circuit Frequency : 25...400 Hz
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 21 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 21.092153044708237
• Relationshiptype : Compatible relationship
• Add Ons : LAD4RCU
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC000066
• ETIM 9 : EC000066
• Environment Attributes
• Take Back : No
• Reach Free Shvc : Yes
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Pro-active China RoHS declaration (out of China RoHS legal scope)
• Toxic Heavy Metal Free : Yes
• Mercury Free : Yes
• Carbon Footprint : 21.0921530447082
• Circularity Profile : ENVEOLI1501004
• Environmental Disclosure : ENVPEP1501004
• Eu Rohs Directive : Compliant
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Reach Free Of Svhc : Yes
• Reach Regulation : Free of Substances of Very High Concern above the threshold
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Indonesia
• Height : 3.03 in
• Width : 1.77 in
• Depth : 3.39 in
