TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). They can be used to create motor starters for almost any type of application. It provides a 120V 50/60Hz AC coil with transient suppressor module, 1NO+

• Uc Control Circuit Voltage
• 120 V AC 50/60 Hz
• Insulation Resistance
• > 10 MOhm for signalling circuit
• Heat Dissipation
• 3-4.5 W at 50/60 Hz
• Connections Terminals
• control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end
• control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffne
• Mounting Support
• rail
• plate
• Uimp Rated Impulse Withstand Voltage
• 8 kV IEC 60947
• Climatic Withstand
• IACS E10 exposure to damp heat
• Power Dissipation Per Pole
• 24 W AC-1
• 13.5 W AC-3
• 13.5 W AC-3e
• Maximum Operating Rate
• 1200 cyc/h at 60 °C
• Prop 65
• WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Carbon Footprint Of The Installation Phase A5
• 0.3 kg CO2 eq.
• 0.2654427709841767
• Non Overlap Time
• 1.5 ms on de-energisation between NC and NO contact
• 1.5 ms on energisation between NC and NO contact
• Carbon Footprint Of The End Of Life Phase C1 To C4
• 4.425806016866926
• 4 kg CO2 eq.
• Standards
• CSA C22.2 No 14
• EN 60947-4-1
• IEC 60947-4-1
• IEC 60335-1:Clause 30.2
• IEC 60335-2-40:Annex JJ
• UL 60335-2-40:Annex JJ
• UL 60947-4-1
• CSA C22.2 No 60947-4-1
• JIS C8201-4-1
• Ue Rated Operational Voltage
• power circuit <= 1000 V AC 25...400 Hz
• power circuit <= 300 V DC
• Ui Rated Insulation Voltage
• power circuit 600 V CSA
• power circuit 600 V UL
• power circuit 1000 V IEC 60947-4-1
• signalli
• Operating Time
• 20...35 ms closing
• 40...75 ms opening
• Control Circuit Type
• AC 50/60 Hz
• Ip Degree Of Protection
• IP20 front face IEC 60529
• Minimum Switching Voltage
• 17 V for signalling circuit
• Carbon Footprint Of The Manufacturing Phase A1 To A3
• 22 kg CO2 eq.
• 22.22881266064238
• Protective Treatment
• THIEC 60068-2-30
• Average Impedance
• 0.6 mOhm - Ith 200 A 50 Hz for power circuit
• Electrical Durability
• 0.85 Mcycles 150 A AC-3 <= 440 V
• 1 Mcycles 200 A AC-1 <= 440 V
• 0.
• Maximum Horse Power Rating
• 40 hp at 200/208 V AC 50/60 Hz for 3 phase motors
• 50 h
• Fire Resistance
• 850 °C IEC 60695-2-1
• Contactor Application
• motor control
• resistive load
• Flame Retardance
• V1 conforming to UL 94
• Carbon Footprint Of The Use Phase B2 B3 B4 B6
• 86 kg CO2 eq.
• 85.59833633093525
• Auxiliaries
• LADN22
• LADN11
• LADN20
• LAD8N11
• LADT2
• LADN40
• LADN31
• LADN02
• LADT0
• LAD8N20
• Safety Reliability Level
• B10d = 684932 cycles contactor with nominal load EN/ISO 13849-1
• B10d = 684932 cycles contactor with nominal load EN/ISO 13849-
• Carbon Footprint Of The Distribution Phase A4
• 0.7508929239734572
• 0.8 kg CO2 eq.
• Tightening Torque
• control circuit 1.2 N.m screw clamp terminals flat Ø 6 mm
• control circuit 1.2 N.
• Ith Conventional Free Air Thermal Current
• 200 A (at 60 °C) for power circuit
• Irms Rated Making Capacity
• 140 A AC for signalling circuit conforming to IEC 60947-5-1
• 250 A DC for s
• Mechanical Robustness
• vibrations contactor open 2 Gn, 5...300 Hz)
• vibrations contactor closed 4 Gn, 5...300 Hz)
• vibrations contactor closed 4
• Minimum Switching Current
• 5 mA for signalling circuit
• Motor Power Kw
• 40 kW at 220...230 V AC 50/60 Hz (AC-3)
• 75 kW at 380...400 V AC 50/60 Hz (AC-3)
• 75 kW at 380..
• Control Circuit Voltage Limits
• 0.3...0.5 Uc (-40-70 °C):drop-out AC 50/60 Hz
• 0.8...1.15 Uc (-40-55 °C
• Utilisation Category
• AC-3
• AC-1
• AC-4
• AC-3e
• Ie Rated Operational Current
• 200 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
• 200 A (at <60 °C) at <= 440 V
• Icw Rated Short Time Withstand Current
• 250 A 40 °C - 10 min for power circuit
• 580 A 40 °C - 1 min for power circuit
• 580 A 40 °C - 1 min fo
• Hold In Power Consumption In Va
• 2-18 VA 60 Hz cos phi 0.9 (at 20 °C)
• 2-18 VA 50 Hz cos phi 0.9 (at 20 °C)
• 2-18 VA 50 Hz cos phi 0.9 (at 20
• Inrush Power In Va
• 280-350 VA 60 Hz cos phi 0.9 (at 20 °C)
• 280-350 VA 50 Hz cos phi 0.9 (at 20 °C)
• 280-350 VA 50
• Associated Fuse Rating
• 10 A gG for signalling circuit conforming to IEC 60947-5-1
• 315 A gG at <= 690
• Permissible Ambient Air Temperature Around The Device
• -40-60 °C
• 60-70 °C with derating
• Rated Breaking Capacity
• 1400 A at 440 V for power circuit conforming to IEC 60947
• Product Certifications
• UL
• CCC
• CSA
• CE
• UKCA
• Marine
• EAC

• Important Information Attributes
• Local Data Status : Publishable
• Local Publishable Date : 2025-04-04
• Etim 10 : EC000066
• Html Descr : TeSys D ContactorNumber of Poles: 3-PolesPole Contact Composition: 3 NORated Operational Current: 150AControl Circuit Voltage: 120V AC 50/60 HzNon-Reversing
• Manufacturer : Schneider Electric
• Baan Price : 2573.8
• Baan Currency : USD
• Device Type : LV equipment - LV contactor
• Serviceability : No
• Traceability : No
• Field Service Division : PPIBS
• Average Life Duration : 20 year(s)
• Manufacturing Carbon Footprint : 22.2288126606424
• Distribution Carbon Footprint : 0.750892923973457
• Installation Carbon Footprint : 0.265442770984177
• Use Carbon Footprint : 85.5983363309353
• End Of Life Carbon Footprint : 4.42580601686693
• Legacy Weee Scope : In
• Weee Product Category : 5
• Scope Perimeter : At least in Europe
• Eoli Availability Display : Yes
• End Of Life Doc Ref : ENVEOLI100405EN
• Rohs Eur In Scope : Yes
• Rohs Eur Status : Compliant with Exemptions
• Rohs Eur Conformity Date : 1904
• Rohs Eur Full Compliance Status : Compliant with Exemptions
• China Rohs In Scope : No
• Green Premium Status For Reporting : Green Premium product
• With Recycled Cardboard : Yes
• Without Single Use Plastic : Yes
• Product Contributes To Saved And Avoided Emissions : No
• Return Indicator : Y
• Wd Status : 1 - GSC certified
• Coil Technology : built-in bidirectional peak limiting diode suppressor
• Compatibility Code : LC1D
• Contact Compatibility : M13
• Device Short Name : LC1D
• Mechanical Durability : 8 Mcycles
• Overvoltage Category : III
• Package Weight Lbs : 2.488 kg
• Pole Contact Composition : 3 NO
• Poles Description : 3P
• Product Availability : Stock - Normally stocked in distribution facility
• Product Or Component Type : contactor
• Range : TeSys
• Range Of Product : TeSys Deca
• Returnability : Yes
• Signalling Circuit Frequency : 25...400 Hz
• Sustainable Packaging : Yes
• Total Lifecycle Carbon Footprint : 113 kg CO2 eq.
• Weee Label : The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
• Carbon Footprint Kg Co2 Eq Total Life Cycle : 113.26929070340219
• Relationshiptype : Compatible relationship
• General Attributes
• Product Or Component Type : contactor
• Range Of Product : TeSys Deca
• ETIM
• ETIM 8 : EC000066
• ETIM 9 : EC000066
• Environment Attributes
• Take Back : No
• Recycled Metal Content At Cr Level : 0 %
• China Rohs Regulation : Product out of China RoHS scope. Substance declaration for your information.
• Mercury Free : Yes
• Carbon Footprint : 113.269290703402
• Circularity Profile : ENVEOLI100405EN
• Environmental Disclosure : ENVPEP060301EN
• Eu Rohs Directive : Compliant with Exemptions
• Operating Altitude : 0...9842.52 ft (0...3000 m)
• Packaging Made With Recycled Cardboard : Yes
• Packaging Without Single Use Plastic : Yes
• Contractual Warranty Attributes
• Warranty Period : 18 months
• Warranty : 18 months
• Specifications
• Country of Origin : Czechia

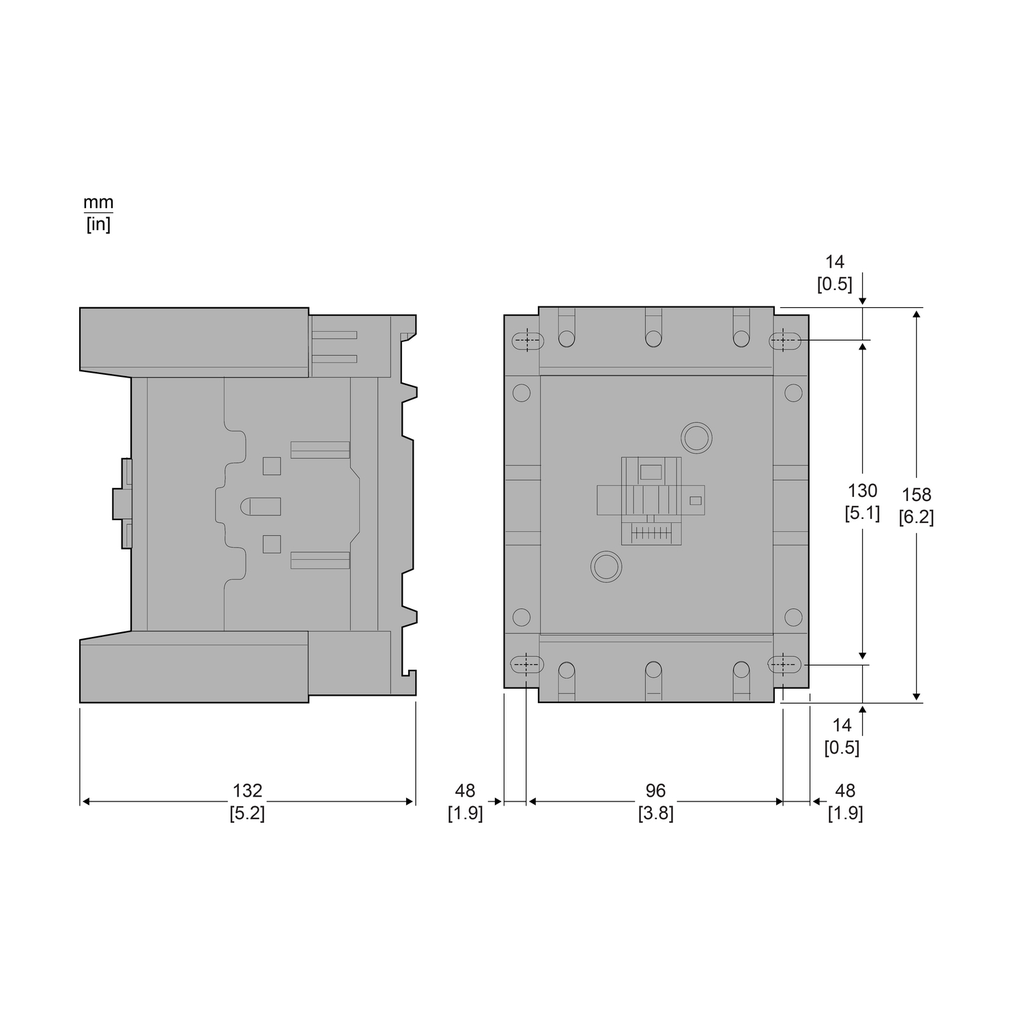

• Height : 6.22 in
• Width : 4.72 in
• Depth : 5.35 in
